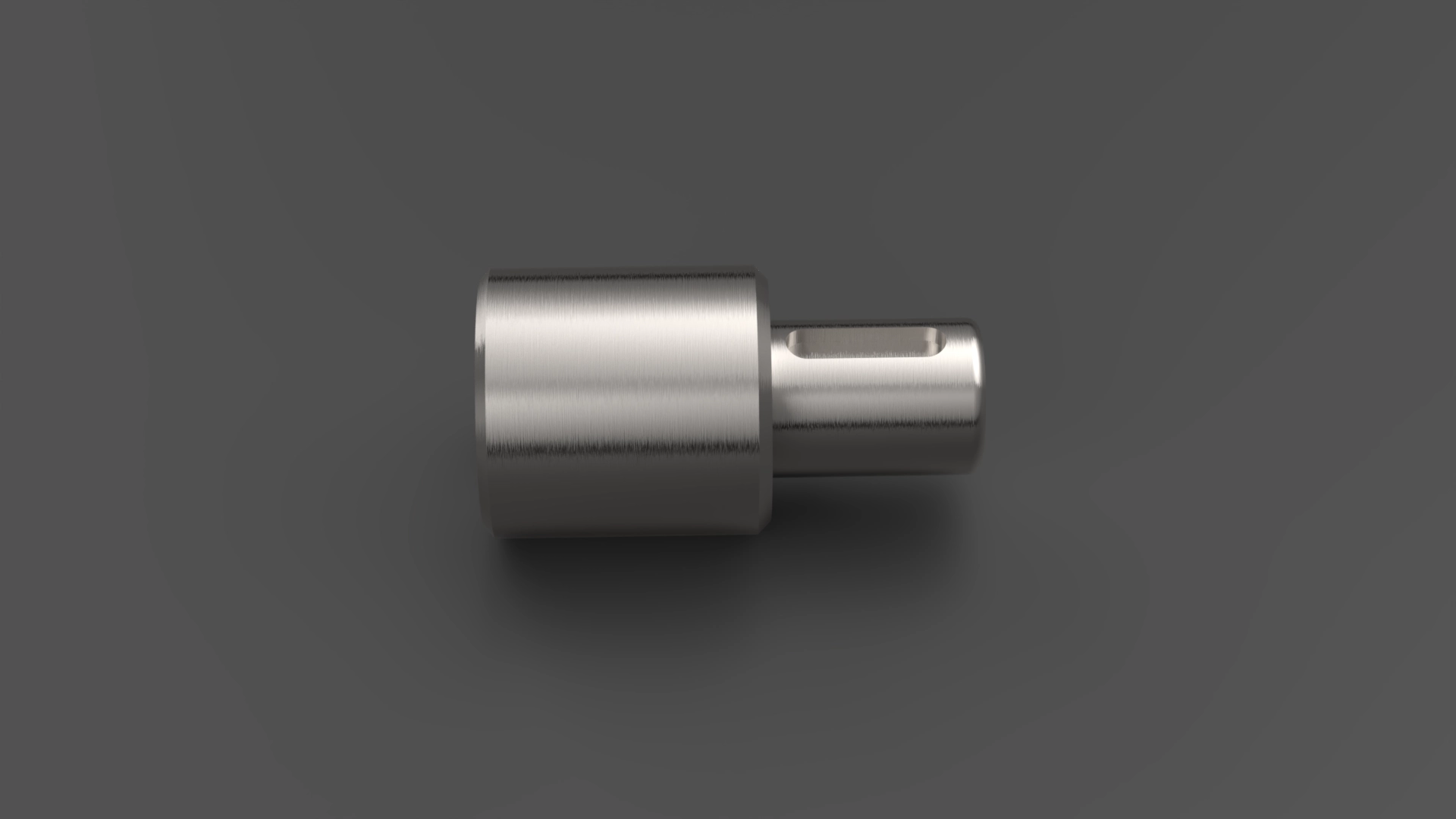

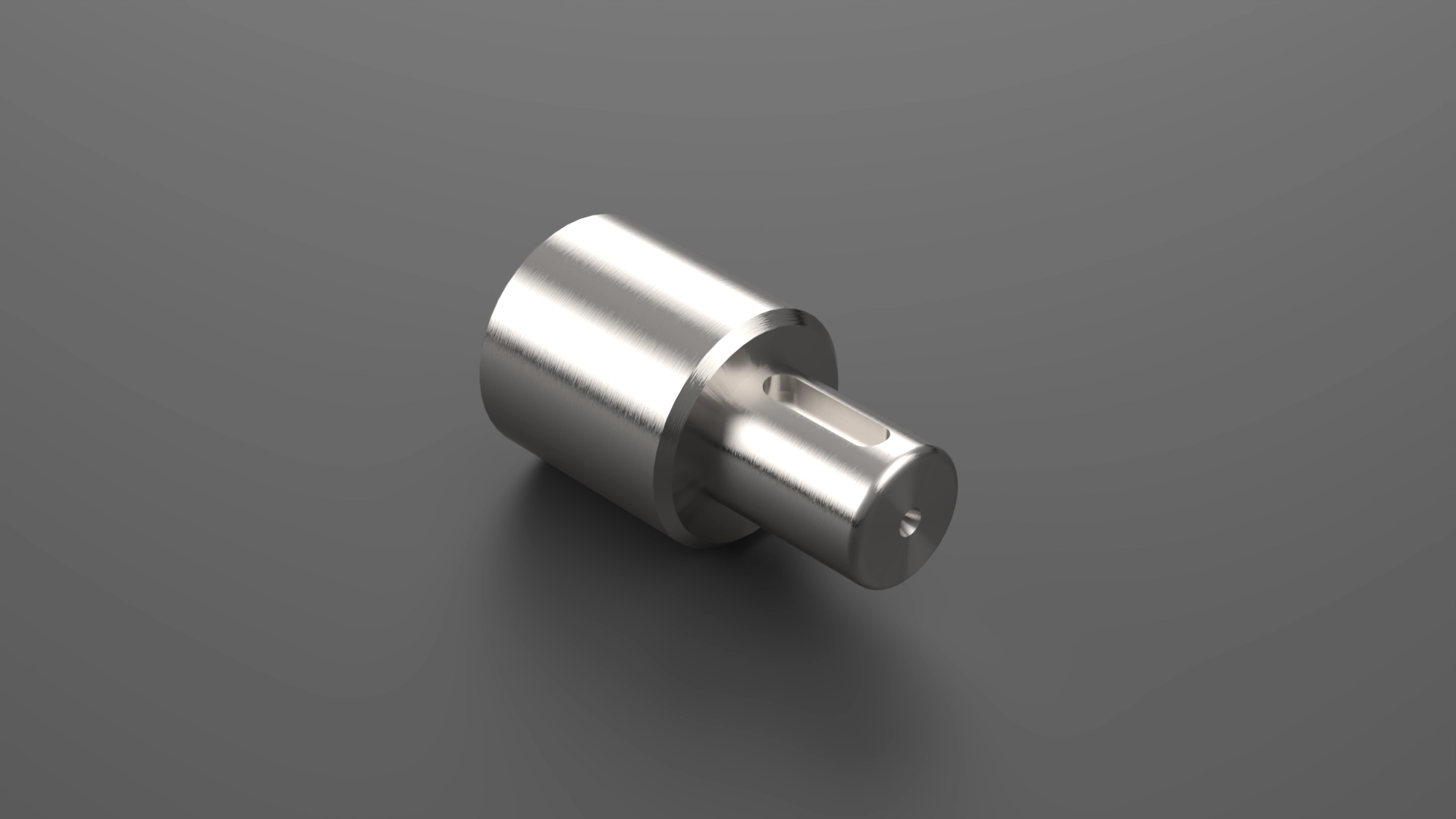

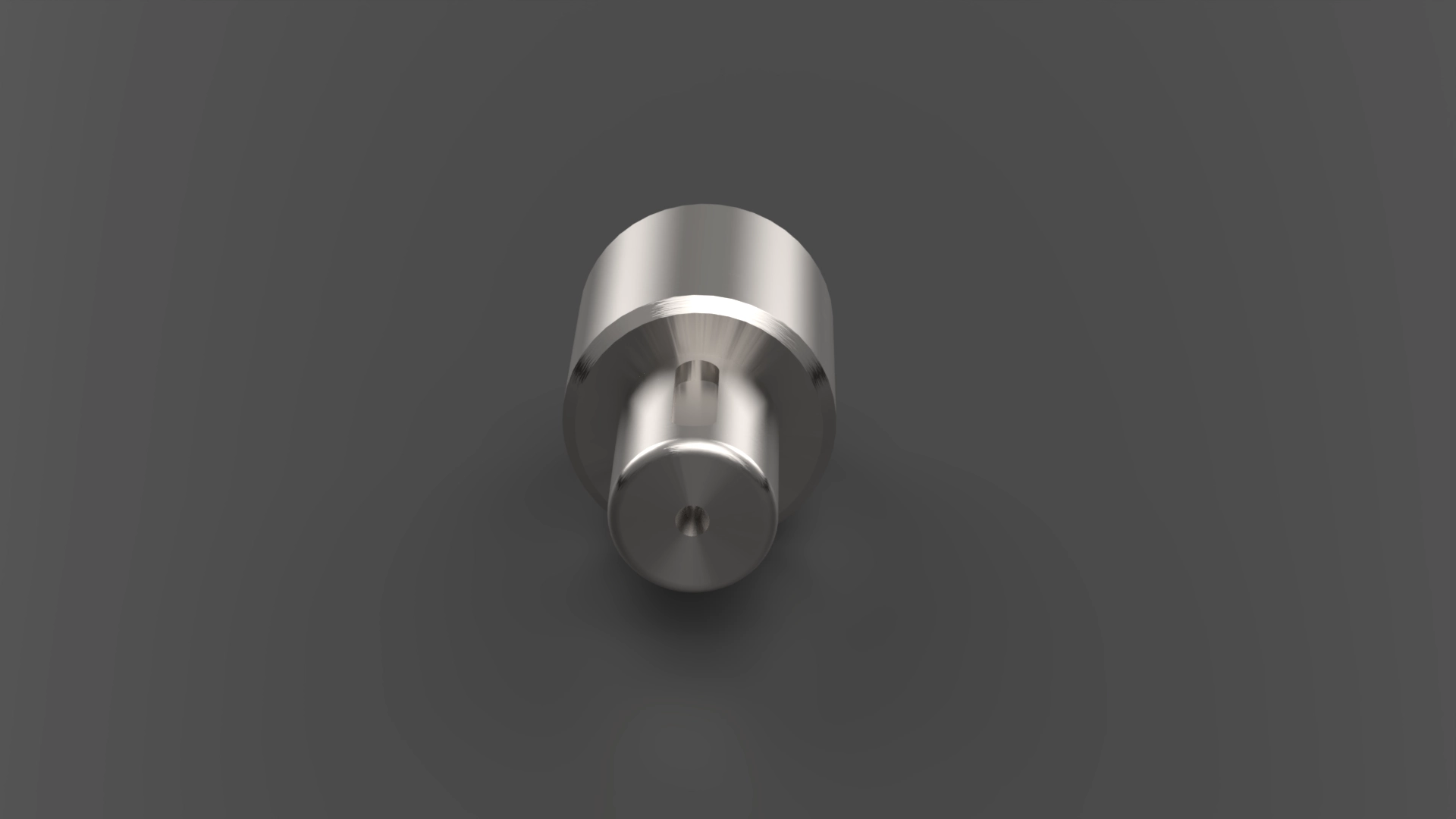

Cross — Universal Joint Adapter
Adapter block for universal joint attachment on cross-auger outlet with keyway and mounting hole.
| overall length mm | 94 |
| bearing compatibility | 206 (Ø30 mm) |
| bearing journal dia mm | 30 |
| material | Mild Steel (AISI 1045 recommended) |
| surface finish | Machined and finished; bearing journals ground & polished where applicable |
| manufacturing process | Turning, keyway broaching/milling, drilling |
| application | Universal joint adapter / cross mount for cross-auger outlet assemblies |
Description
The Cross universal joint adapter is a precision-machined mounting block designed to couple a universal (Cardan) joint to a cross-outlet auger assembly. Manufactured from medium-carbon steel and finished to industrial tolerances, this adapter provides a keyed coupling surface and pre-drilled mounting for secure cross-pin attachment. Machined shoulders ensure accurate locating in assemblies while the finished bore/journal surfaces provide reliable support where bearings or bushings are used. Supplied as an OEM replacement or spare, the part is intended for harsh agricultural environments and is finished to resist wear and allow straightforward installation and service.
Use Cases
- Connects universal joints to cross-outlet augers
- Replacement adapter for cross-outlet assemblies
- Used in grain outlet and material discharge applications
