Custom Flight — 1230mm

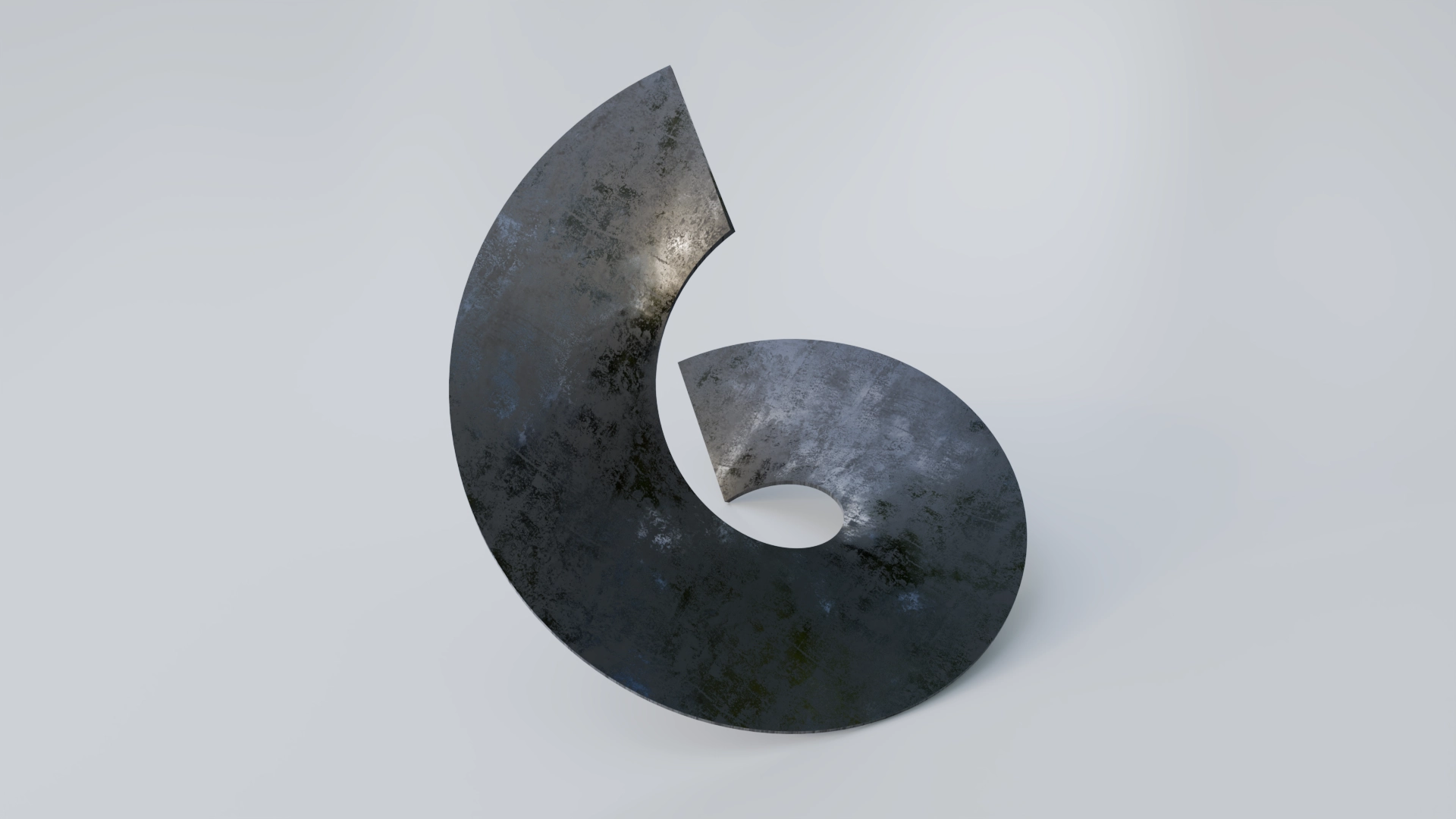

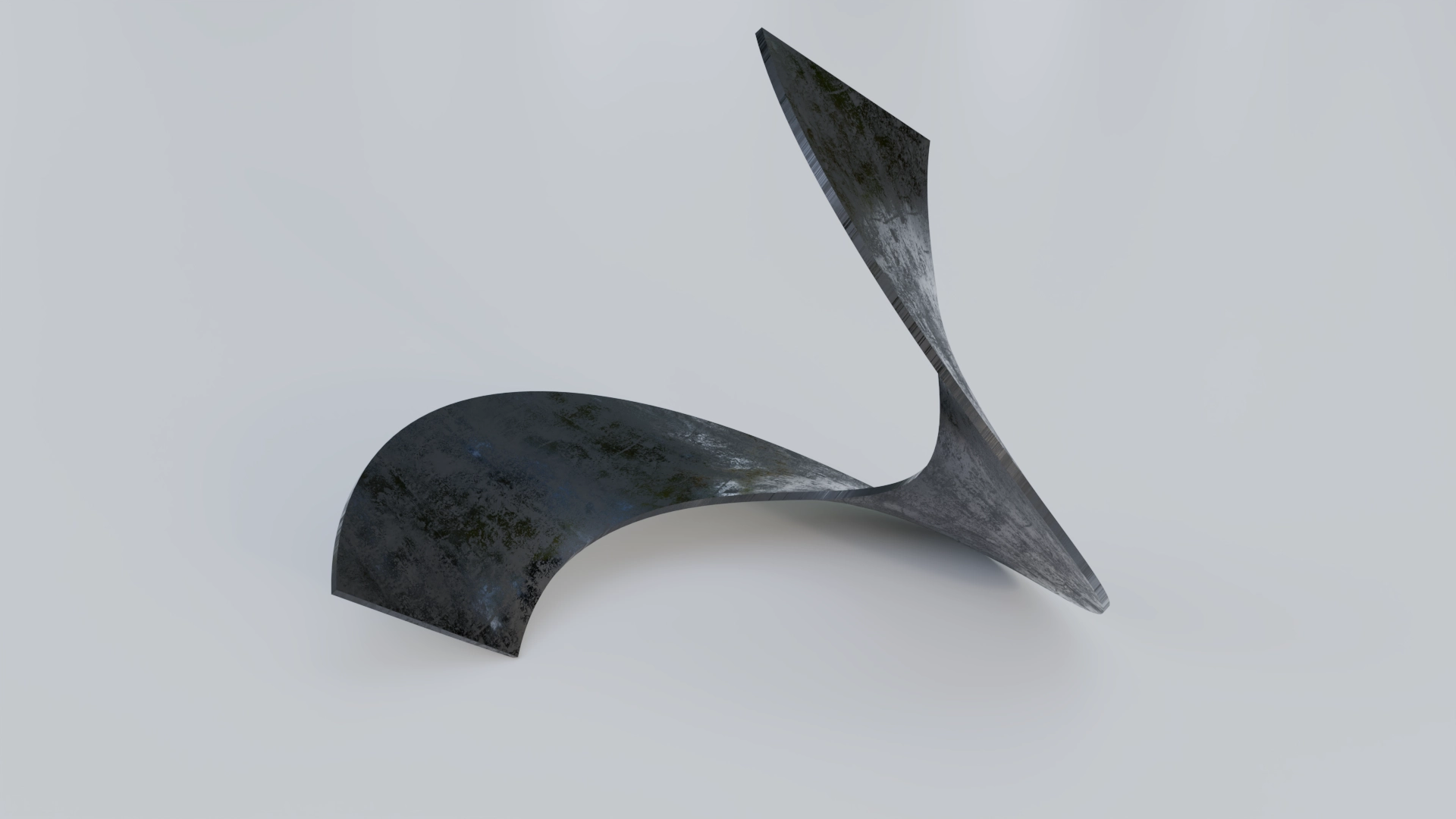

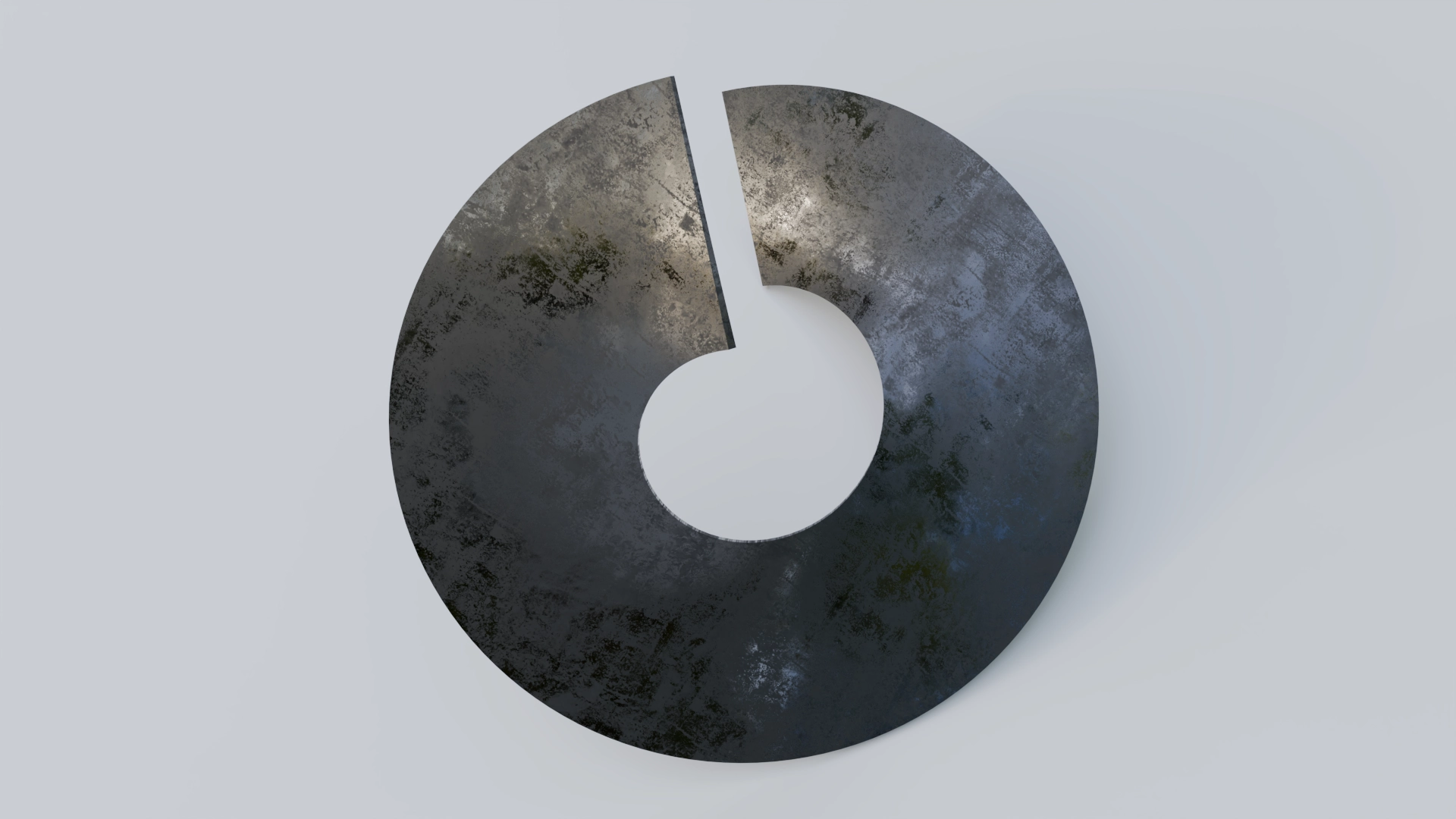

Large 1230 mm diameter flight, 16 mm thickness — fabricated for heavy-duty auger assemblies.
| outer diameter mm | 1230 |
| pitch mm | 1230 |
| flight thickness mm | 16 |
| flight hand | Left |
| material | Heavy gauge carbon steel (fabricated flight plate) |
| application | Large-diameter auger flight for heavy-duty material handling / custom installations |
Description
This is a custom-fabricated, heavy-duty auger flight produced for a large-diameter double-start auger assembly. The flight is formed from 16 mm thick steel plate, precisely rolled and welded to match a 1230 mm outer diameter and double-start geometry for high throughput. It was finished, dressed and protected for transport; the component is intended to be welded onto a central pipe (Ø410 mm) and mated to a tapered delivery end. Supplied as a made-to-order flight for bespoke auger builds, it is intended for demanding material-handling or earthworks applications where large capacity and robustness are required. For installation and welding details consult the assembly drawing or the client’s fabrication instructions.
Use Cases
- Replacement or spare flight for large custom augers
- Fabrication element for heavy-duty material handling augers
- Used in earthworks and large-scale conveying installations
