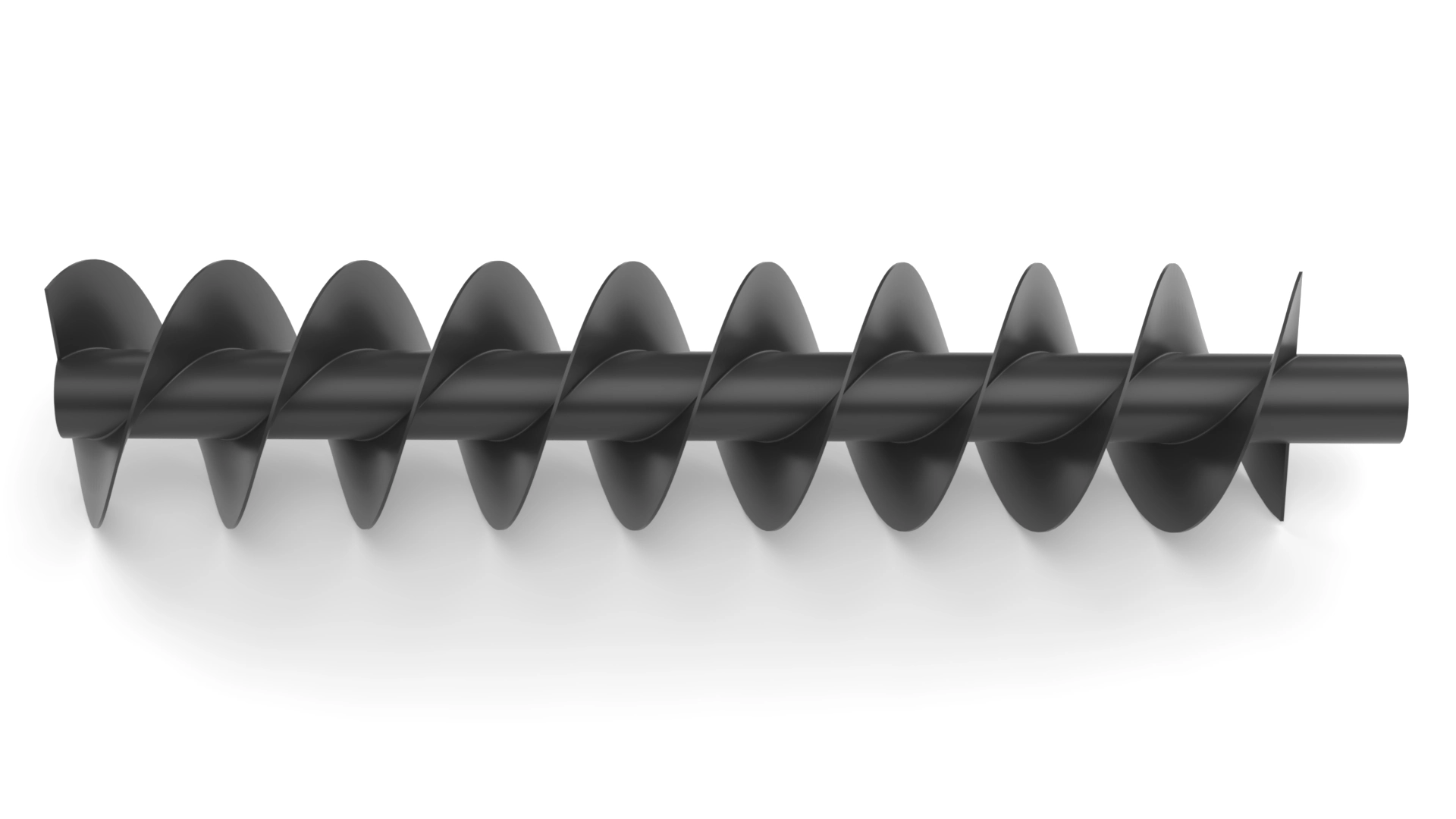

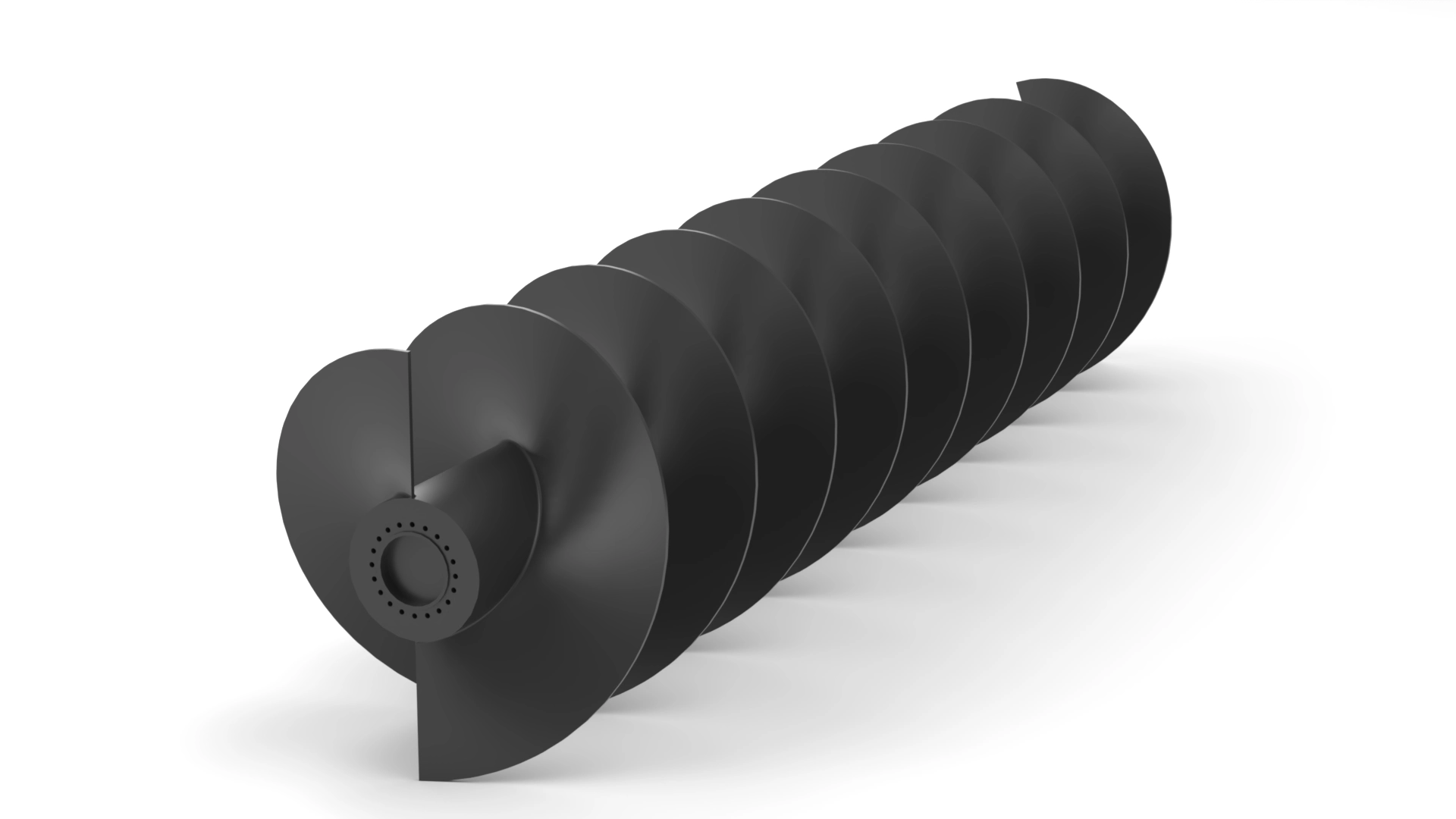

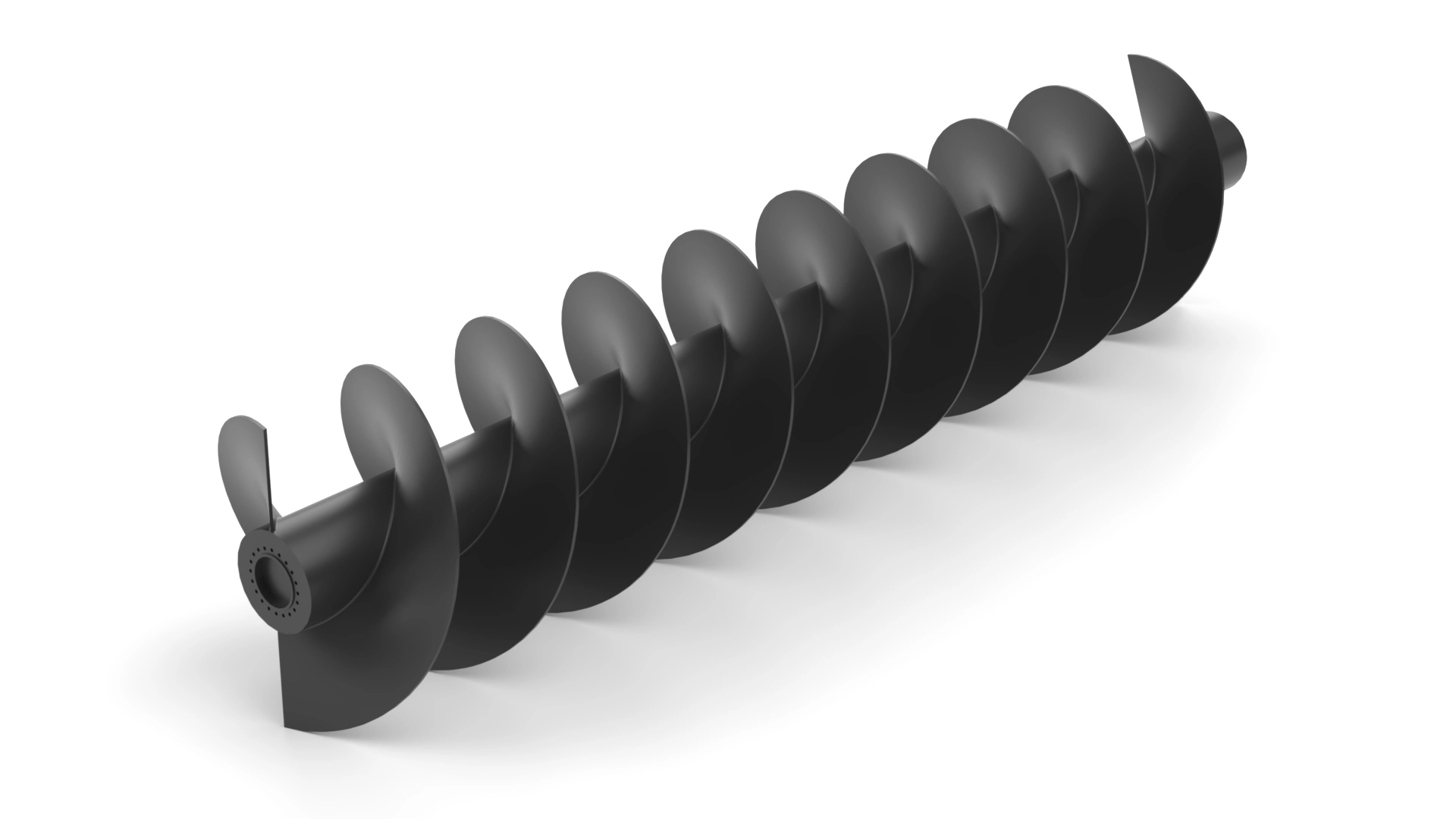

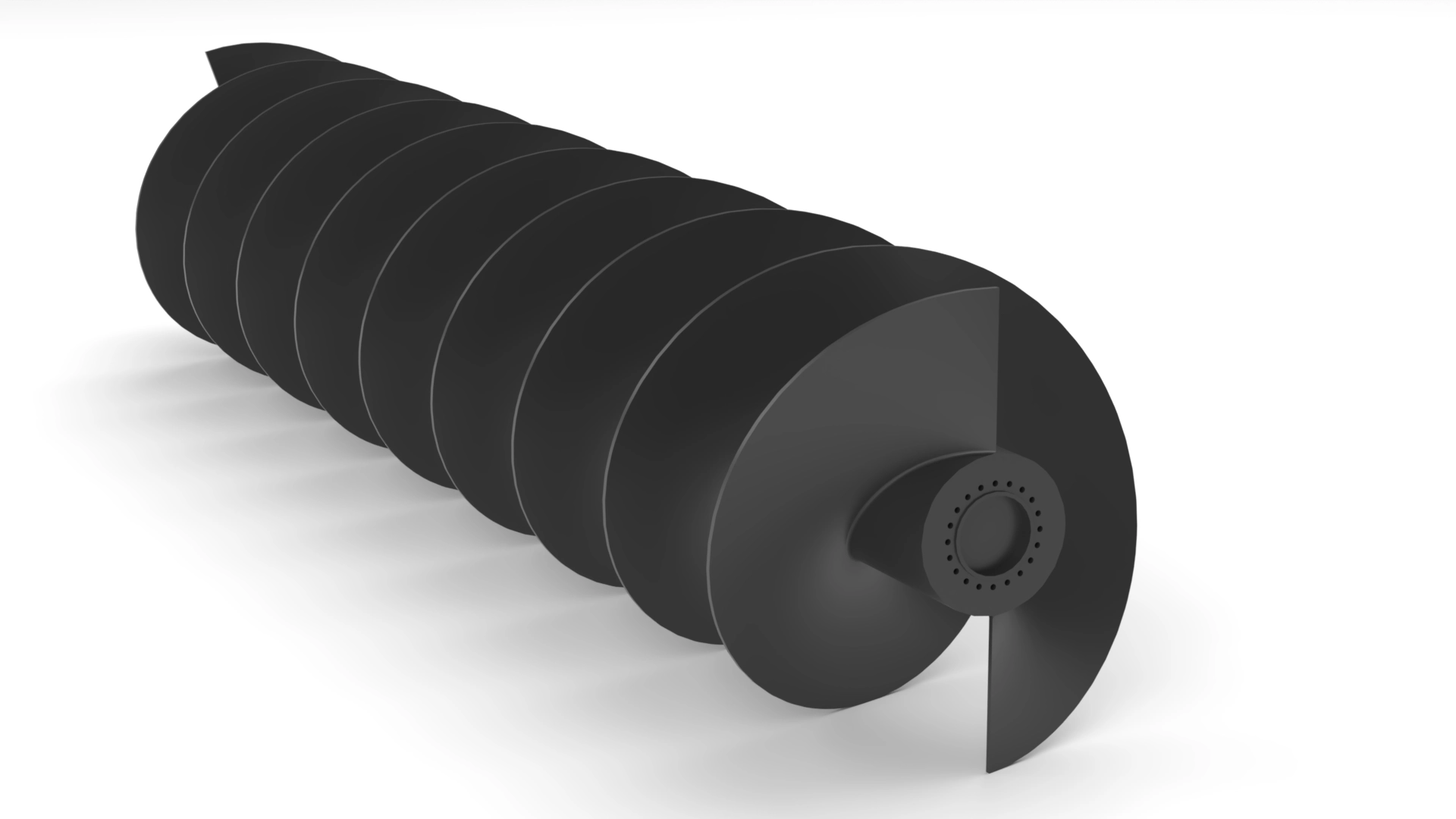

Custom Heavy-Duty Double-Start Auger
Custom-built, large-diameter double-start auger — 1230 mm screw dia, 6.1 m overall length. Made-to-order for heavy duty applications.
| overall length mm | 6100 |
| bearing compatibility | N/A |
| bearing journal dia mm | |
| material | Heavy gauge carbon steel (fabricated, welded flights) |
| surface finish | Shot-blast and protective coating; welds dressed |
| manufacturing process | Formed flight plates, heavy welding, taper machining, stress relief and coating |
| application | Custom heavy-duty auger for large-scale material handling / client specific installations |
Description
This is a custom-built, heavy-duty double-start auger manufactured to client specification. Key supplied specs: screw diameter 1230 mm, flight thickness 16 mm, double-start geometry, pitch 1230 mm (single pitch per start), screw length 5600 mm, central pipe diameter 410 mm, overall length 6100 mm, and a tapered end section for mating or discharge. The unit was fabricated from heavy-gauge steel with welded flighting and taper machining at the delivery end.
Use Cases
- Custom auger for large-scale material handling
- Made-to-order heavy-duty applications
- Suitable for bespoke industrial and earthworks installations
