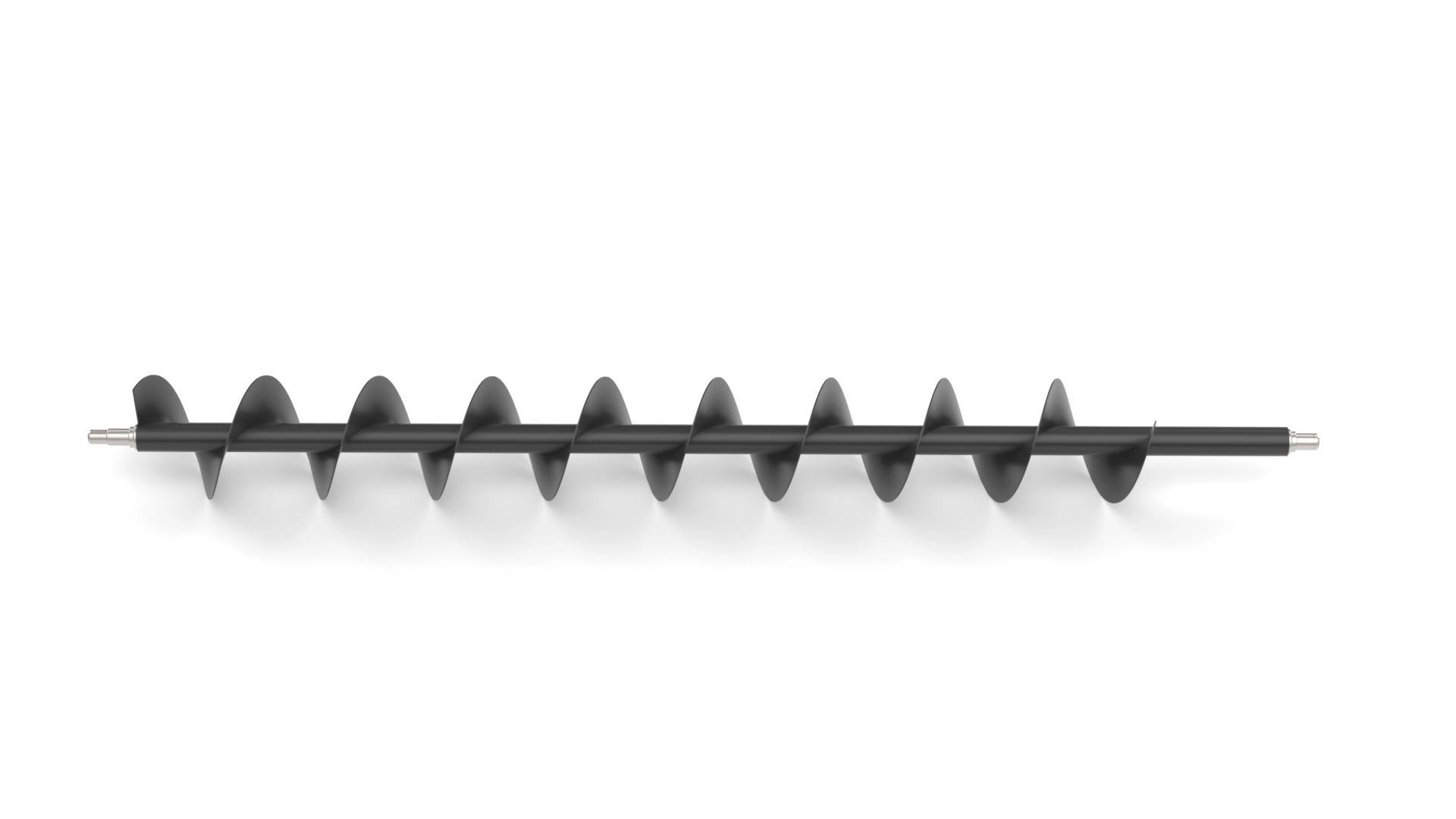

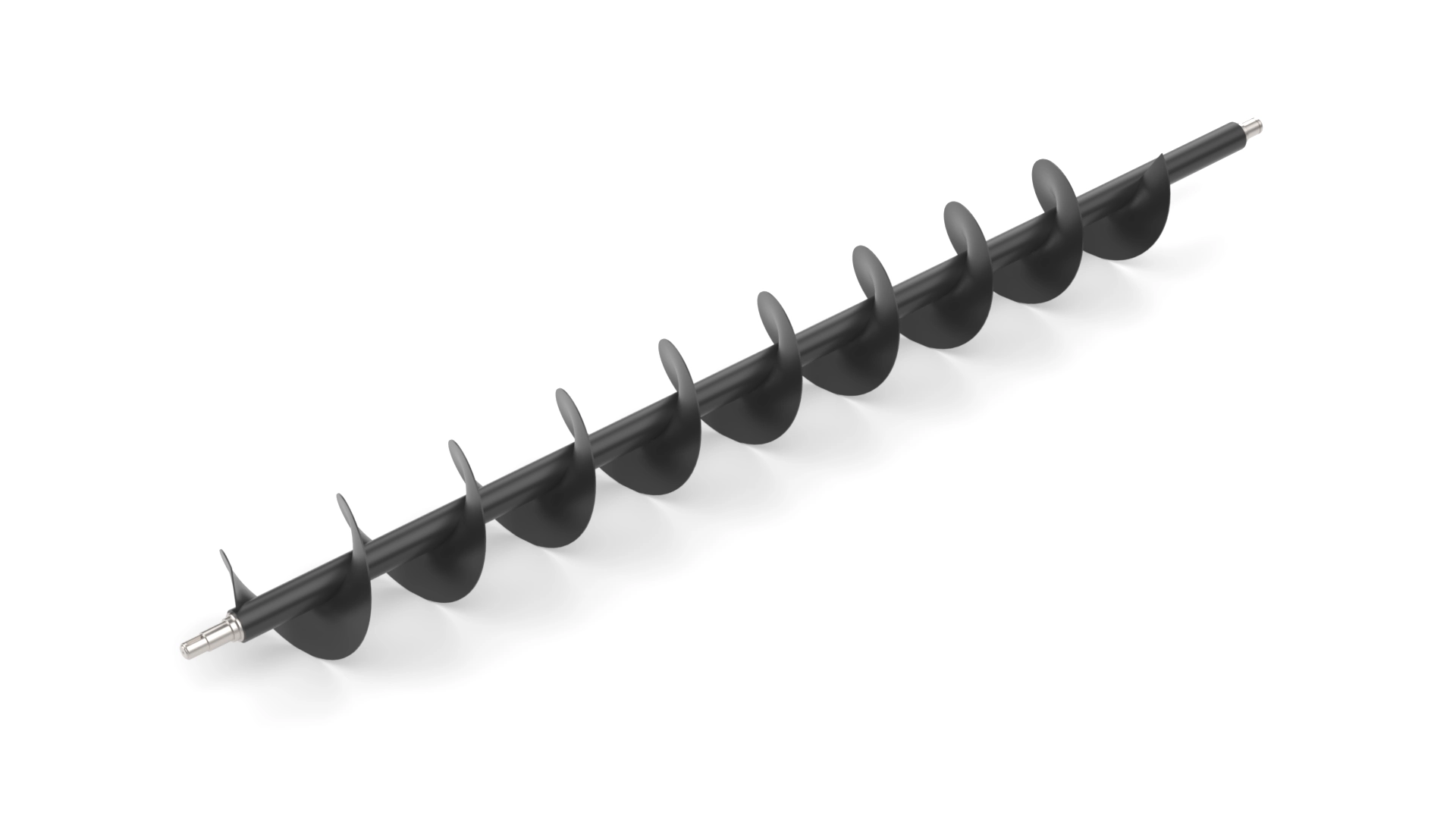

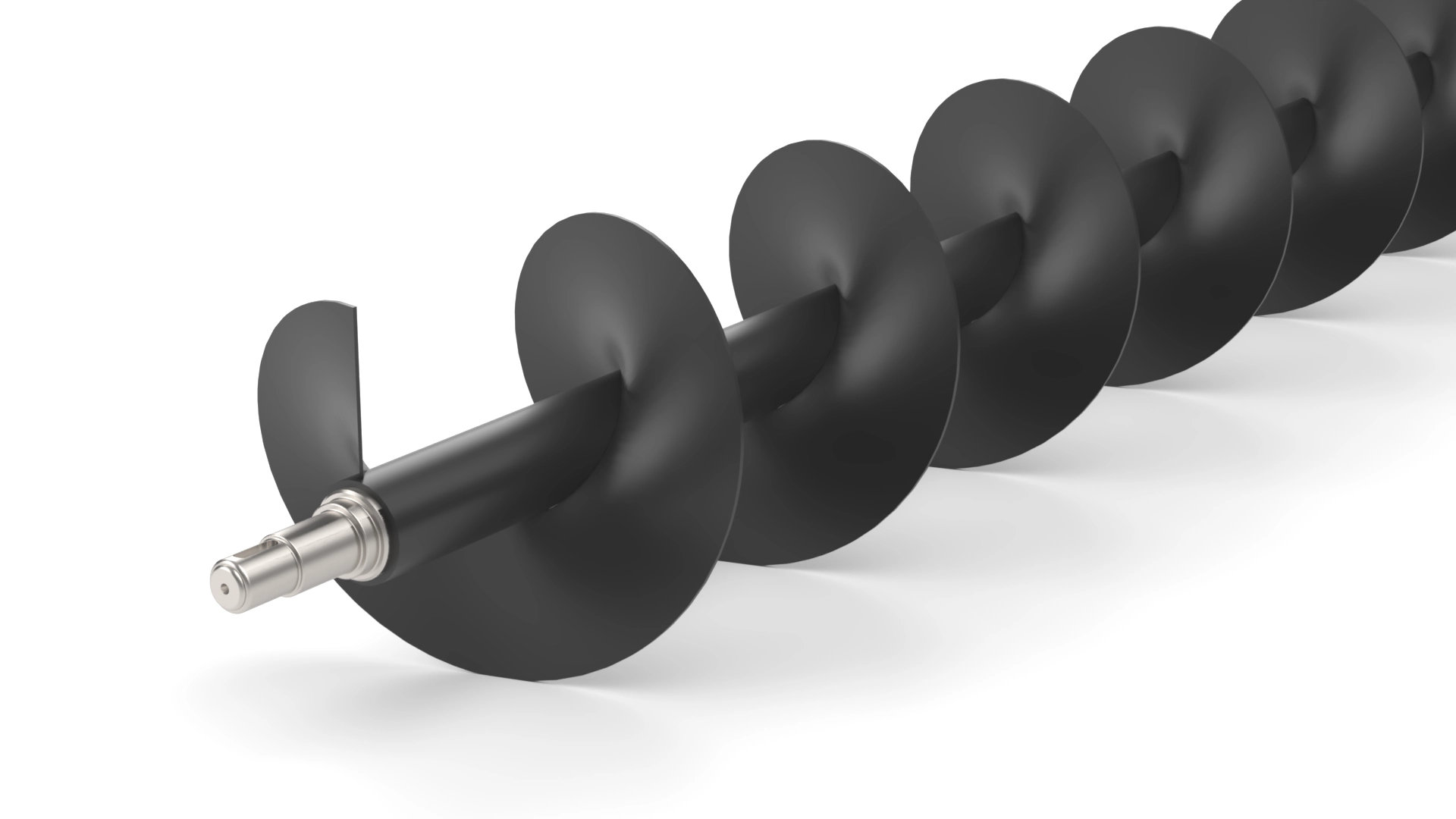

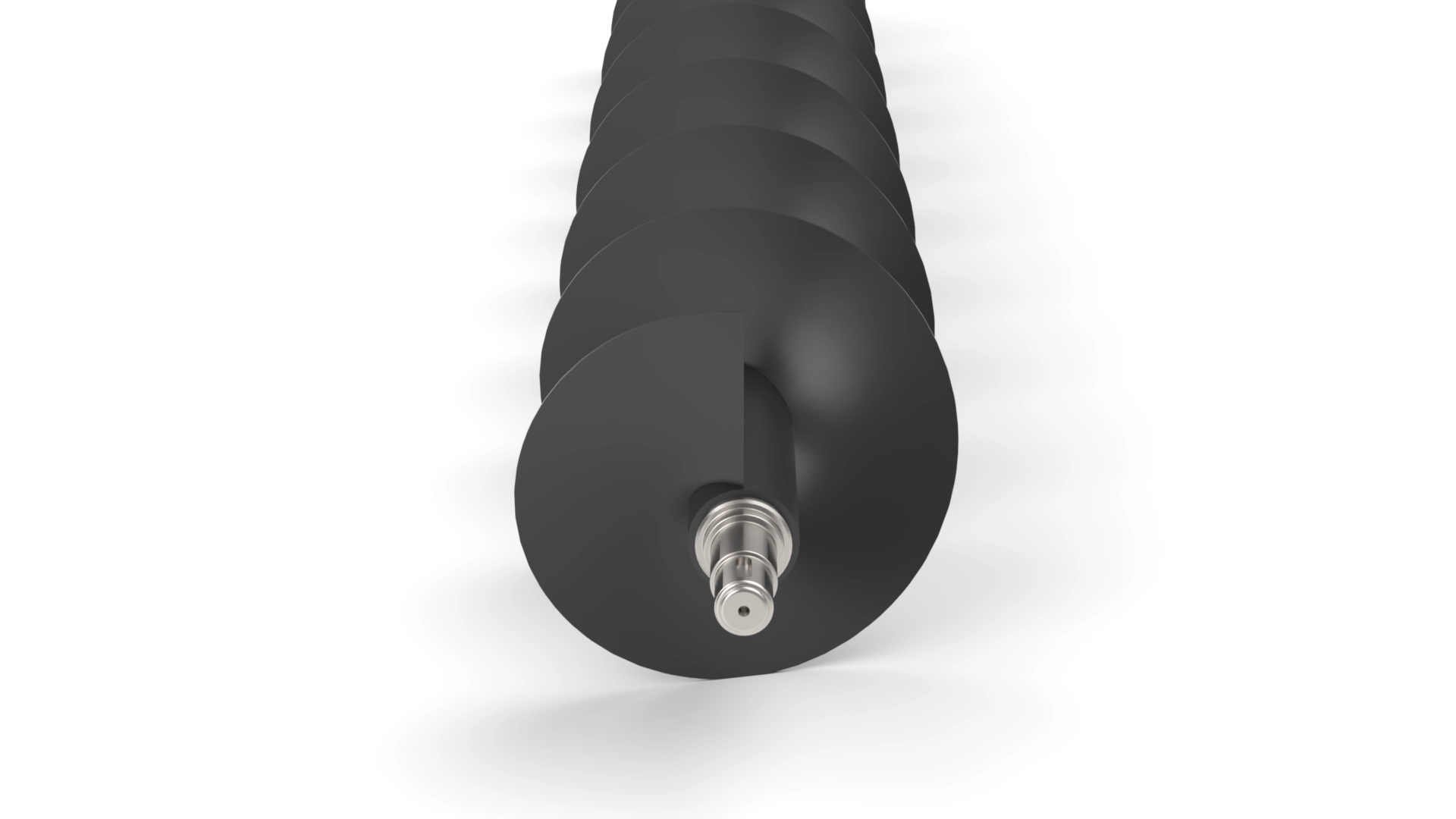

Discharge Auger
Heavy-duty left-hand discharge auger with large pitch and diameter for efficient material discharge.
| pitch mm | 228.5 |
| screw hand | Left-hand |
| flight thickness | 10 gauge |
| pipe diameter mm | 60 |
| shaft diameter mm | 35 |
| bearing compatibility | 207 |
| total screw length mm | 2041.7 |
| outer screw diameter mm | 252.76 |
| bearing to bearing distance mm | 2355.85 |
Description
This discharge auger is engineered for high-capacity material transfer at the discharge end of conveying systems. Its large diameter and extended pitch enable efficient handling of bulk materials with consistent flow. Manufactured using heavy-duty steel with 10 gauge flight thickness, the auger is designed for durability and smooth operation under demanding conditions. Precision balancing reduces vibration and ensures stable performance during continuous operation. Compatible with standard 207 bearings and featuring left-hand rotation, this auger is suitable for both industrial and agricultural material handling applications.
Use Cases
- Grain handling and discharge systems
- Bulk material discharge in industrial conveyors
- Agricultural machinery applications
- High-capacity material transfer points
- Continuous-duty industrial conveying systems
