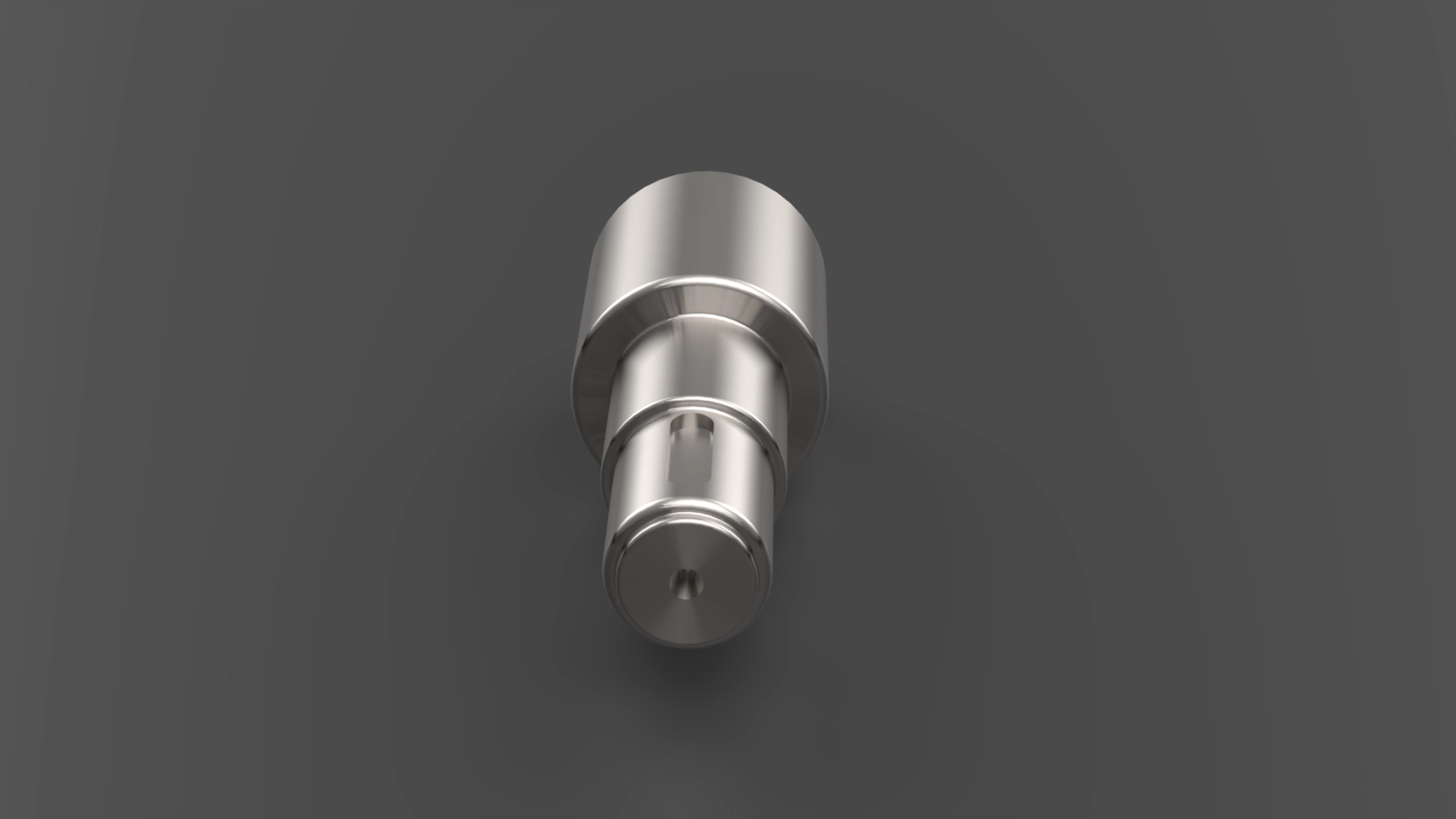

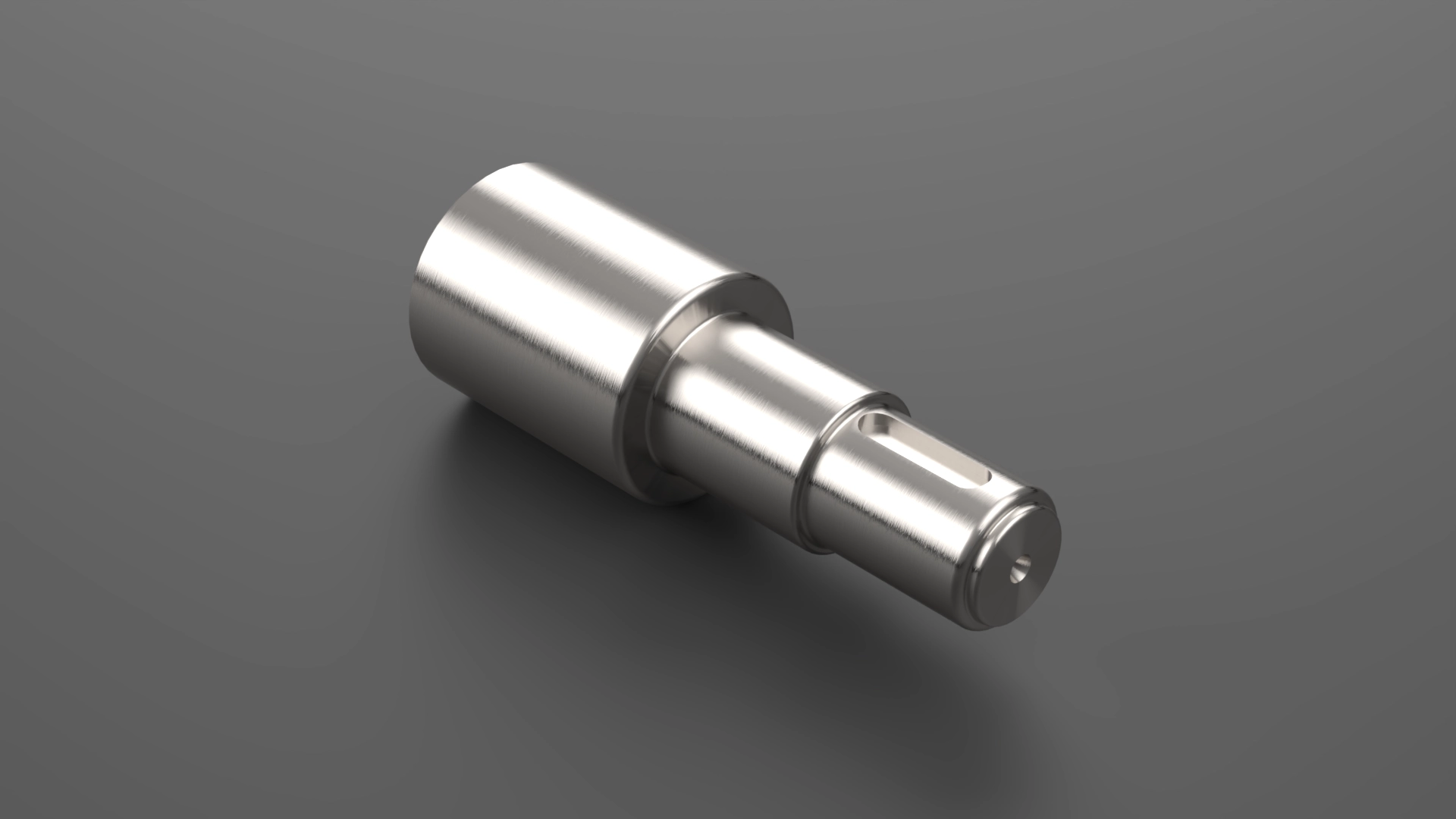

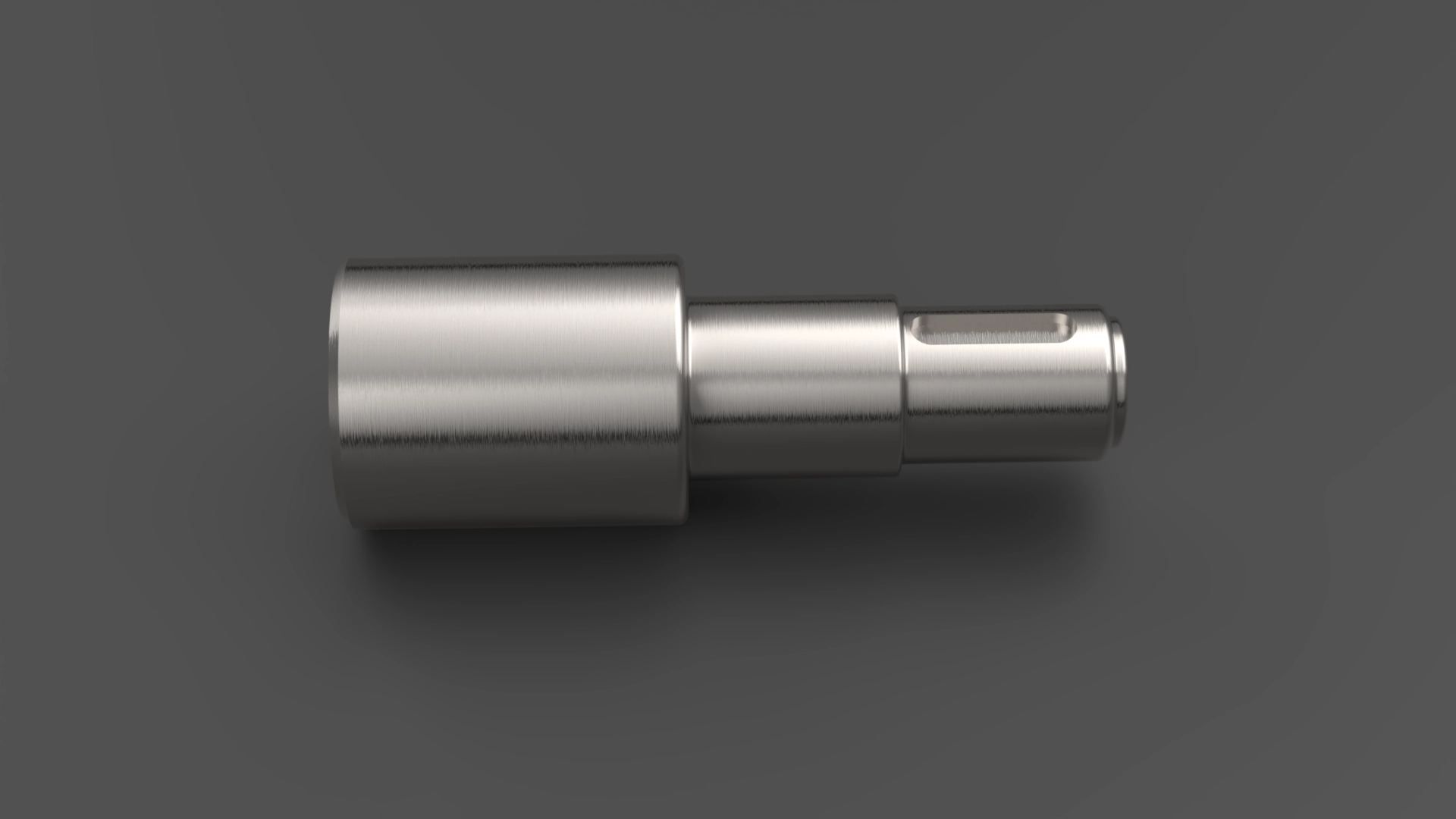

Double-Step Discharge Shaft
Stepped discharge shaft with precision bearing journal (207 compatibility) — double-step profile for discharge assemblies.
| overall length mm | 147 |
| bearing compatibility | 207 (Ø35 mm) |
| bearing journal dia mm | 35 |
| material | Mild Steel (AISI 1045 recommended) |
| surface finish | Bearing journals ground & polished; machined finish elsewhere |
| manufacturing process | Turning, facing, keyway broaching/milling, journal grinding |
| application | Double-step discharge / end-mount shaft for conveyors and auger discharge assemblies |
Description
The Double-Step Discharge Shaft is a precision-turned, double-stepped shaft designed for discharge and end-mount assemblies in conveyors and auger systems. It features a finished bearing journal sized for 207 bearings, stepped shoulders for accurate locating in housings, and a machined section prepared for keying or coupling. Bearing journals are ground and polished to ensure correct bearing fit and long service life. Manufactured from medium-carbon mild steel and finished using turning, keyway broaching/milling and journal grinding, this shaft is supplied as an OEM replacement or spare for agricultural and material-handling equipment where reliable bearing support and accurate assembly location are required.
Use Cases
- Replacement discharge shaft for conveyors and auger discharge modules
- Support shaft for discharge and end-mount assemblies
- OEM spare for agricultural and material handling equipment
