Flight — 155.54mm

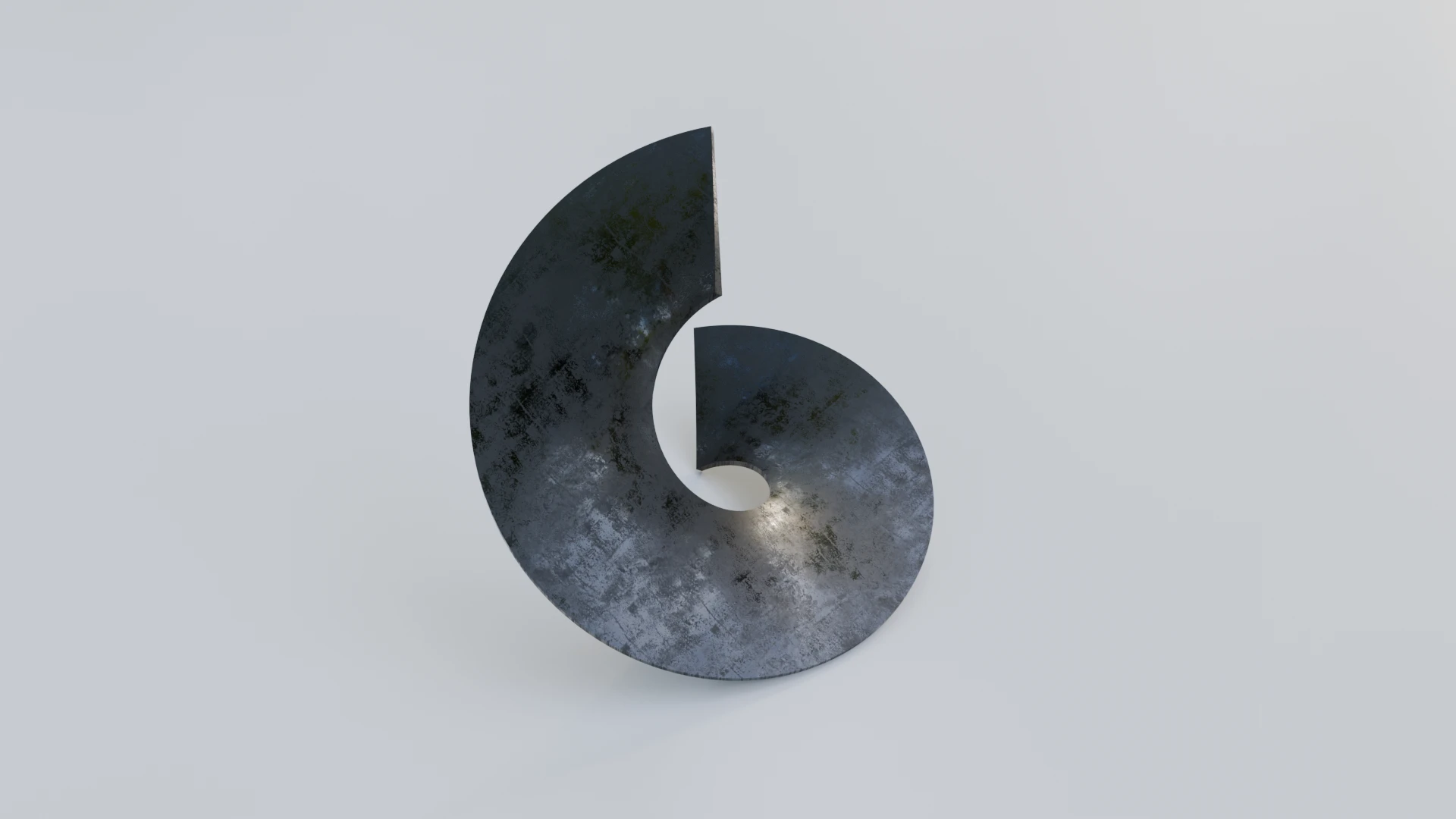

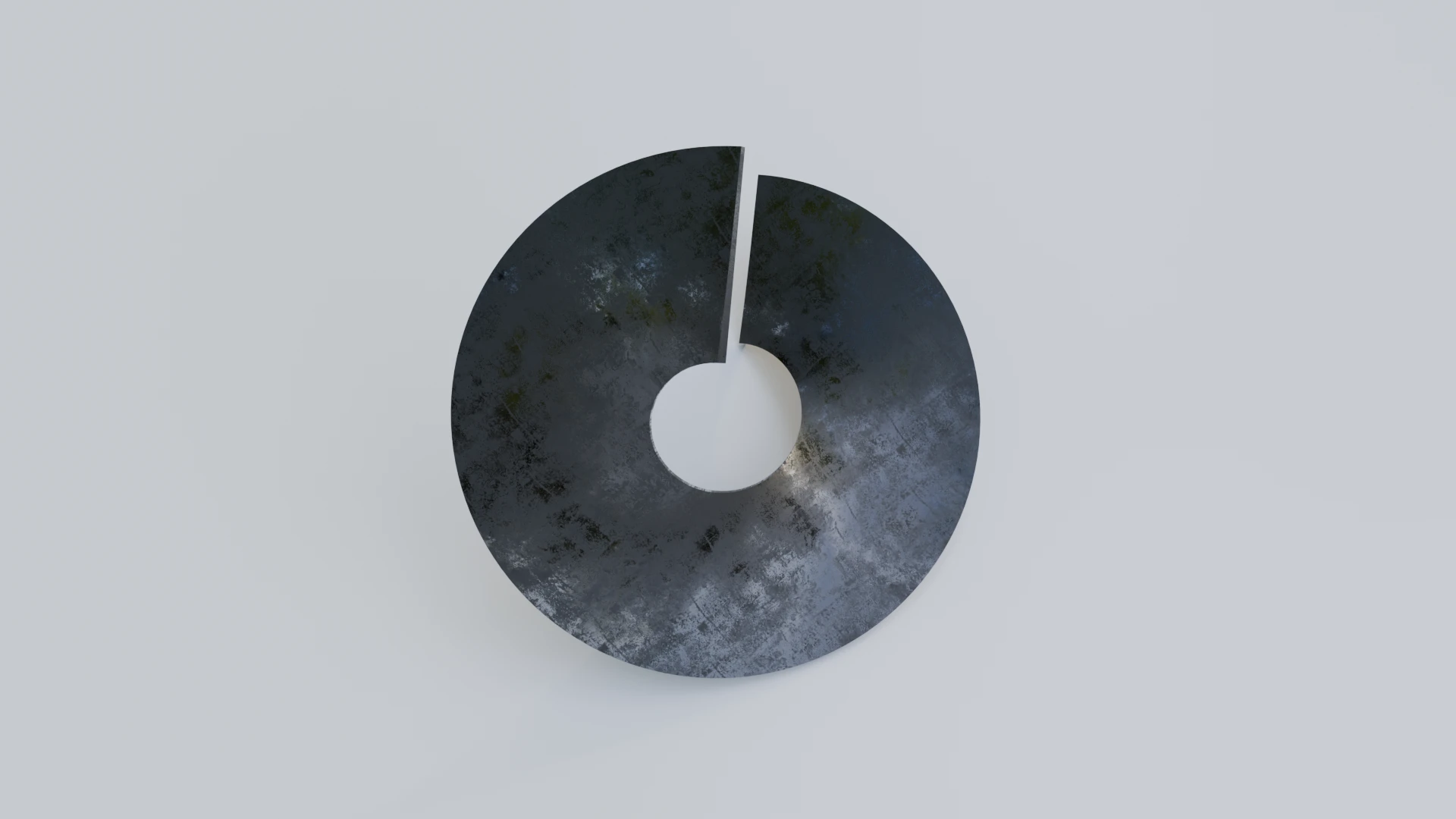

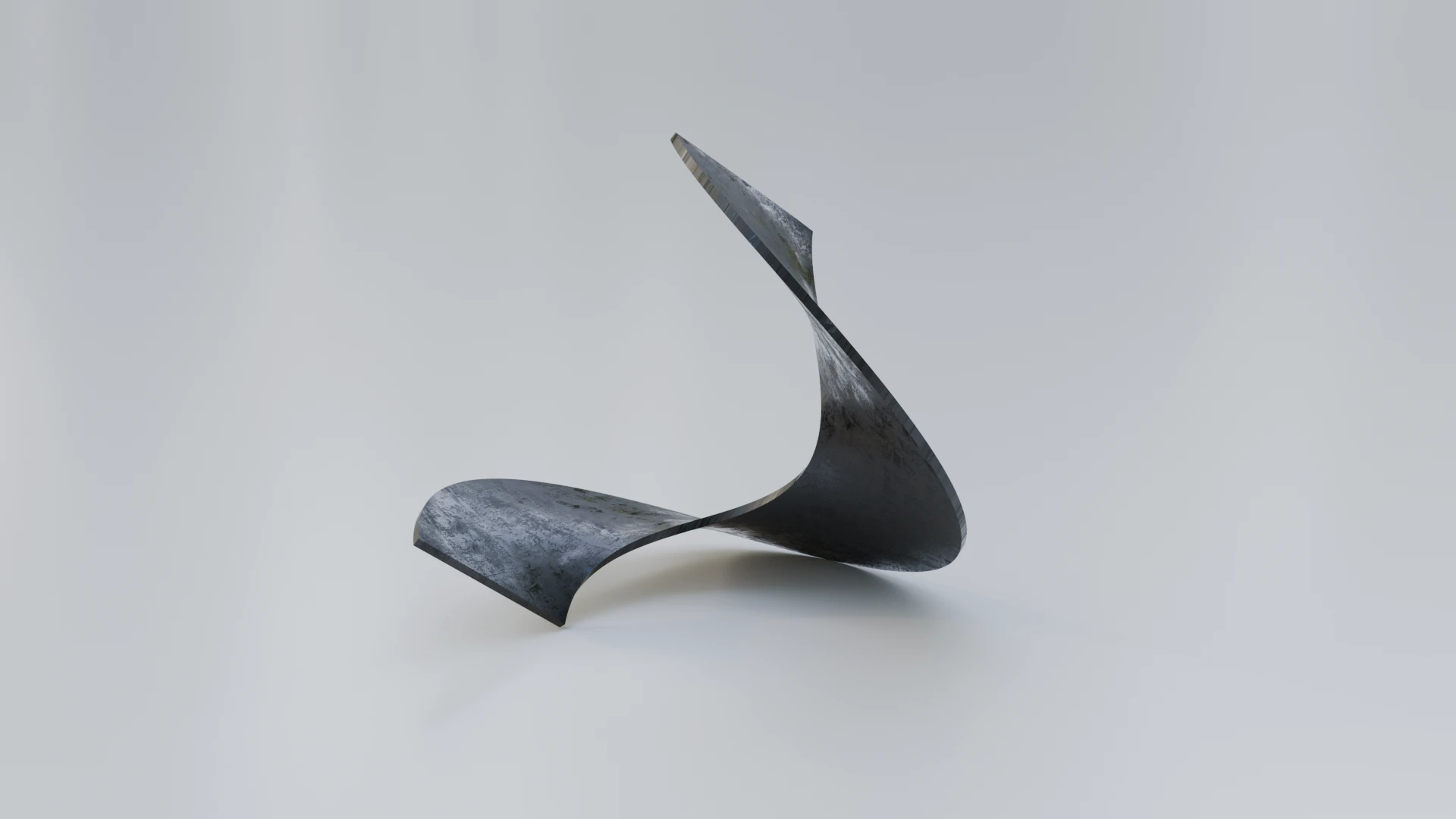

155.54 mm OD auger flight, 150 mm pitch, 42 mm ID, left-hand; 3 mm plate thickness — formed flight segment for medium-duty augers.
| outer diameter mm | 155.54 |
| pitch mm | 150 |
| inner diameter mm | 42 |
| flight thickness mm | 3 |
| flight hand | Left |
| material | Mild Steel (fabricated flight plate) |
| manufacturing process | Plate forming, rolling, seam-welding and dressing |
| surface finish | Dressed welds and protective coating |
| application | Auger flight for conveyors and grain handling; fits Ø42 mm pipe core |
Description
This 155.54 mm outer-diameter auger flight is a precision-formed and finished flight segment intended for medium-duty conveyor and grain-handling augers. Produced from 3 mm thick mild-steel plate, the flight is rolled, seam-welded and dressed to fit a 42 mm pipe core and uses a 150 mm pitch in a left-hand orientation. It is supplied ready-to-weld for repair or new-build applications and is suitable for standard conveyor, feed and agricultural auger systems requiring left-hand rotation. Quality-checked and dressed welds simplify installation and prolong service life when paired with a correctly-sized pipe core.
Use Cases
- Replacement flight for medium-duty augers
- Fabrication element for auger assembly and repairs
- Used in conveyors, grain handling and material transfer systems
