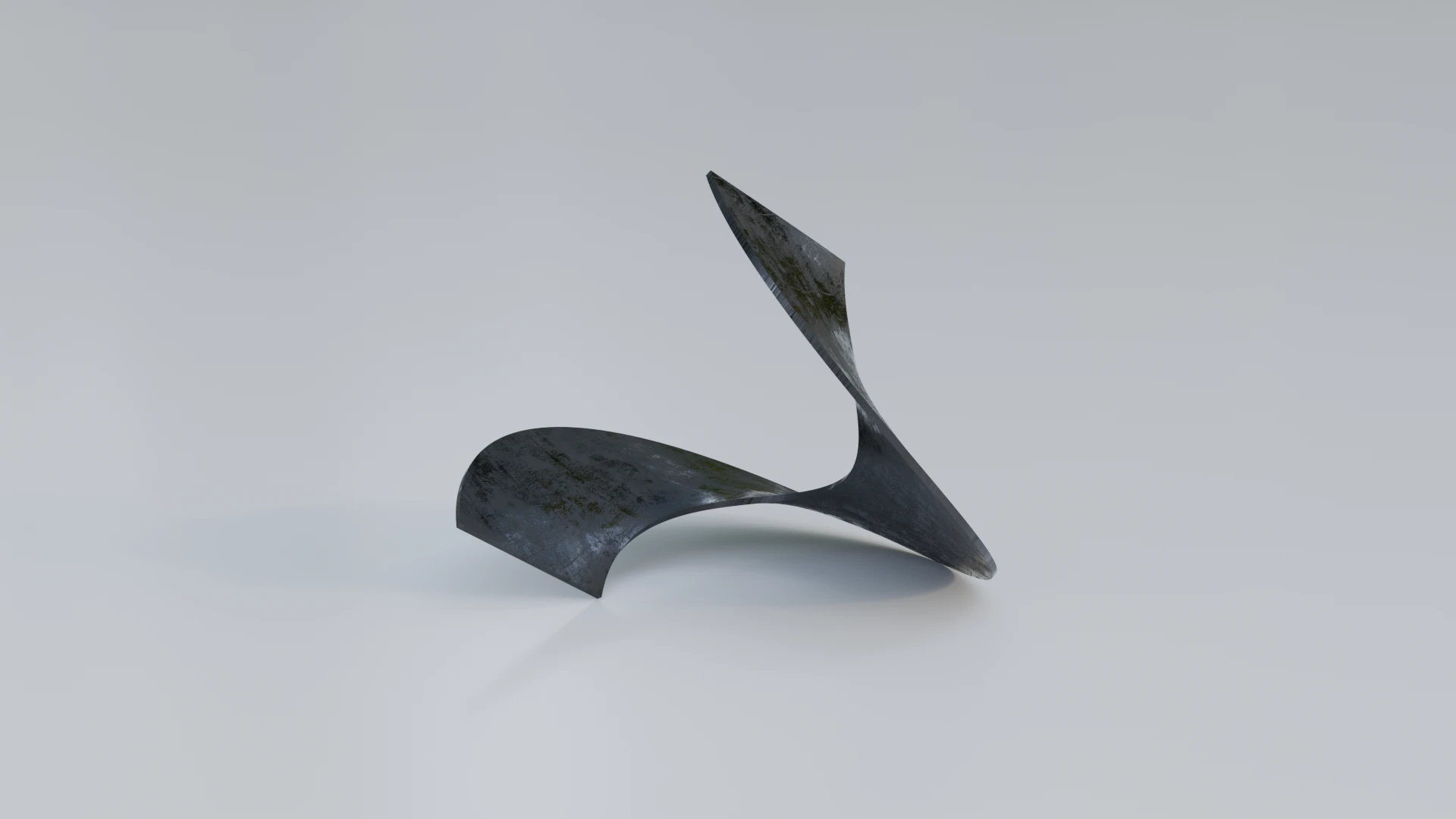

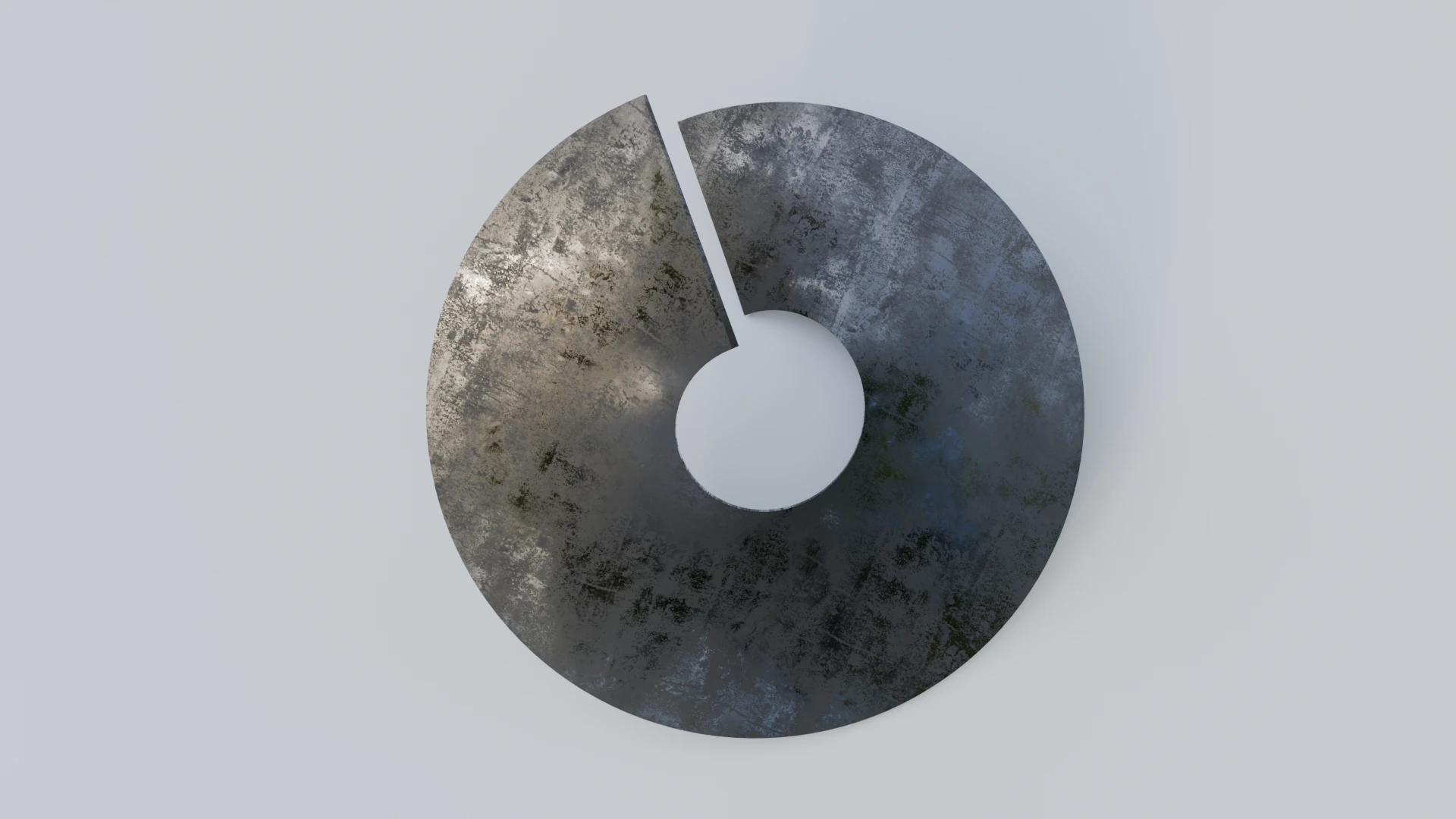

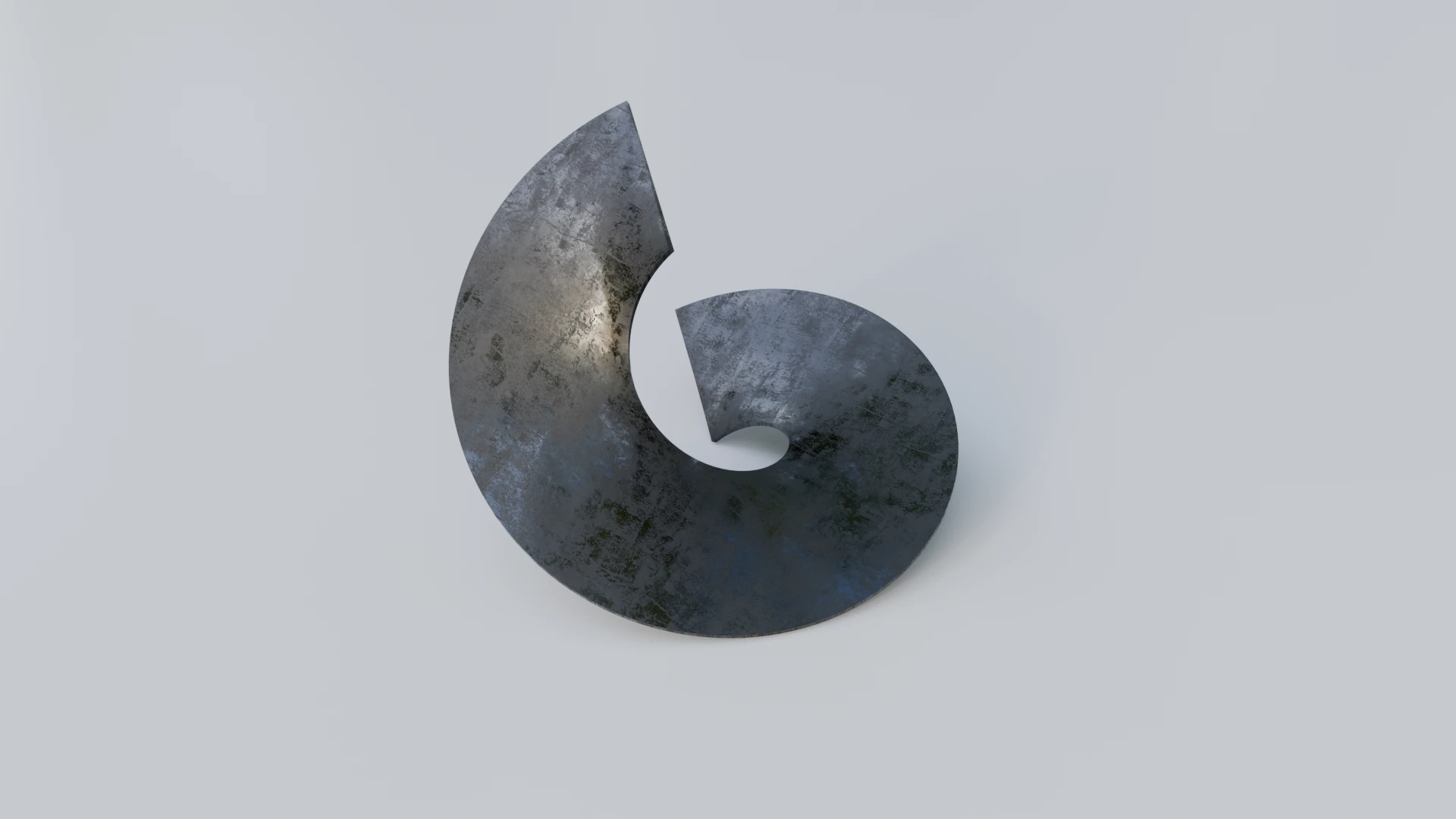

Flight — 210mm
210 mm outer diameter screw flight with 177.8 mm pitch and 60 mm ID — formed mild-steel flight for auger assemblies.
| outer diameter mm | 210 |
| pitch mm | 177.8 |
| inner diameter mm | 60 |
| flight thickness mm | 3 |
| flight hand | Left |
| material | Mild Steel (fabricated flight plate) |
| manufacturing process | Plate forming, rolling, welding and dressing |
| surface finish | Dressed welds and protective coating |
| application | Auger flight for conveyors and grain handling; fits Ø60 mm pipe core |
Description
This 210 mm outer-diameter screw flight is a precision-formed flighting segment intended for medium-duty auger assemblies. It features a 177.8 mm pitch and 60 mm internal pipe diameter and is produced from plate that is rolled, welded and dressed to match the specified geometry. The flight is suitable for use on replacement augers or new assemblies where a 60 mm pipe core is used. Supplied as a ready-to-weld flight, it is finished for durability and straightforward installation. For best life, pair the flight with a correctly sized central pipe and follow standard welding/assembly procedures.
Use Cases
- Replacement flight for medium-duty augers
- Fabrication element for auger assembly
- Used in conveyors, grain handling and material transfer systems
