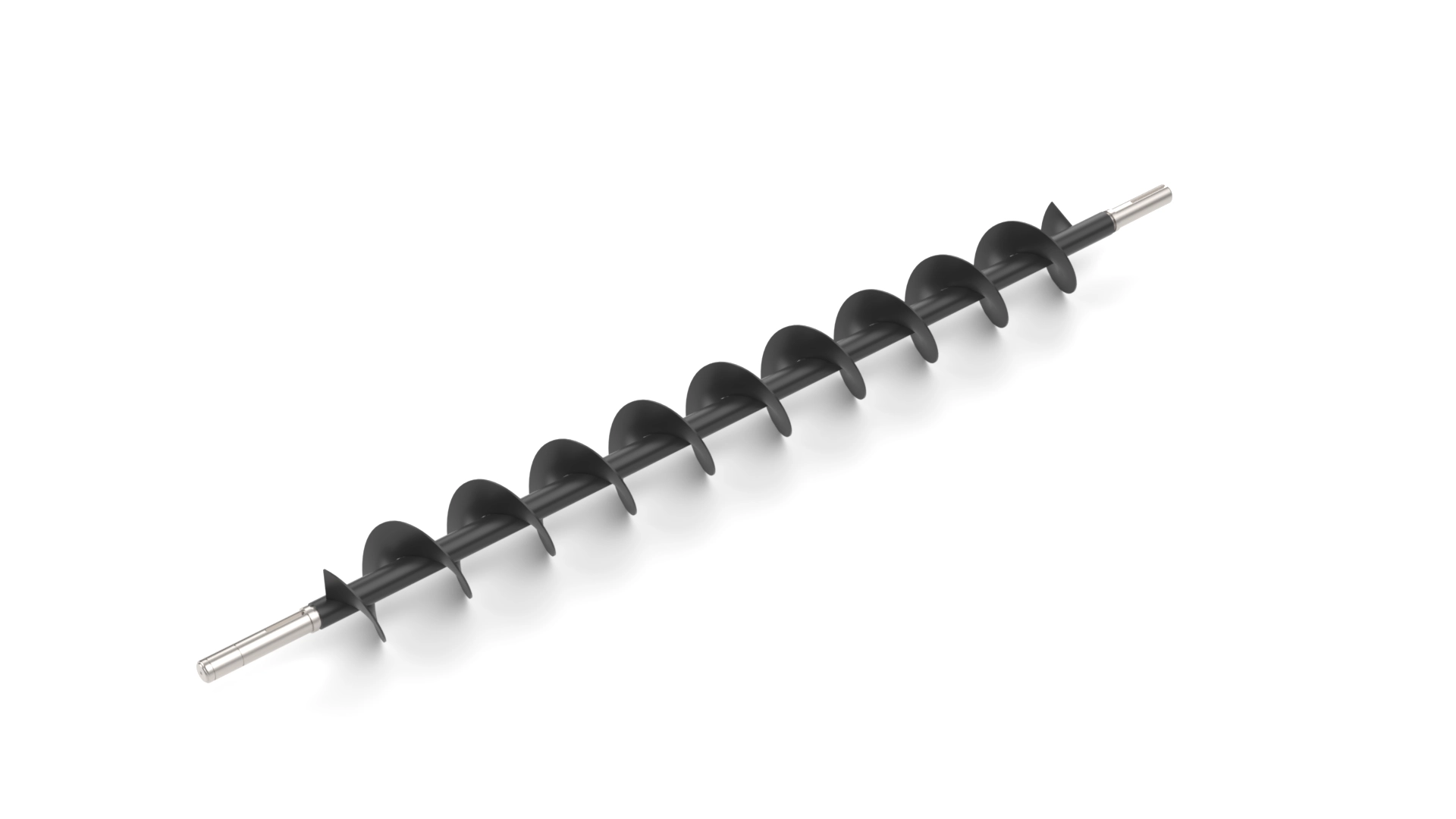

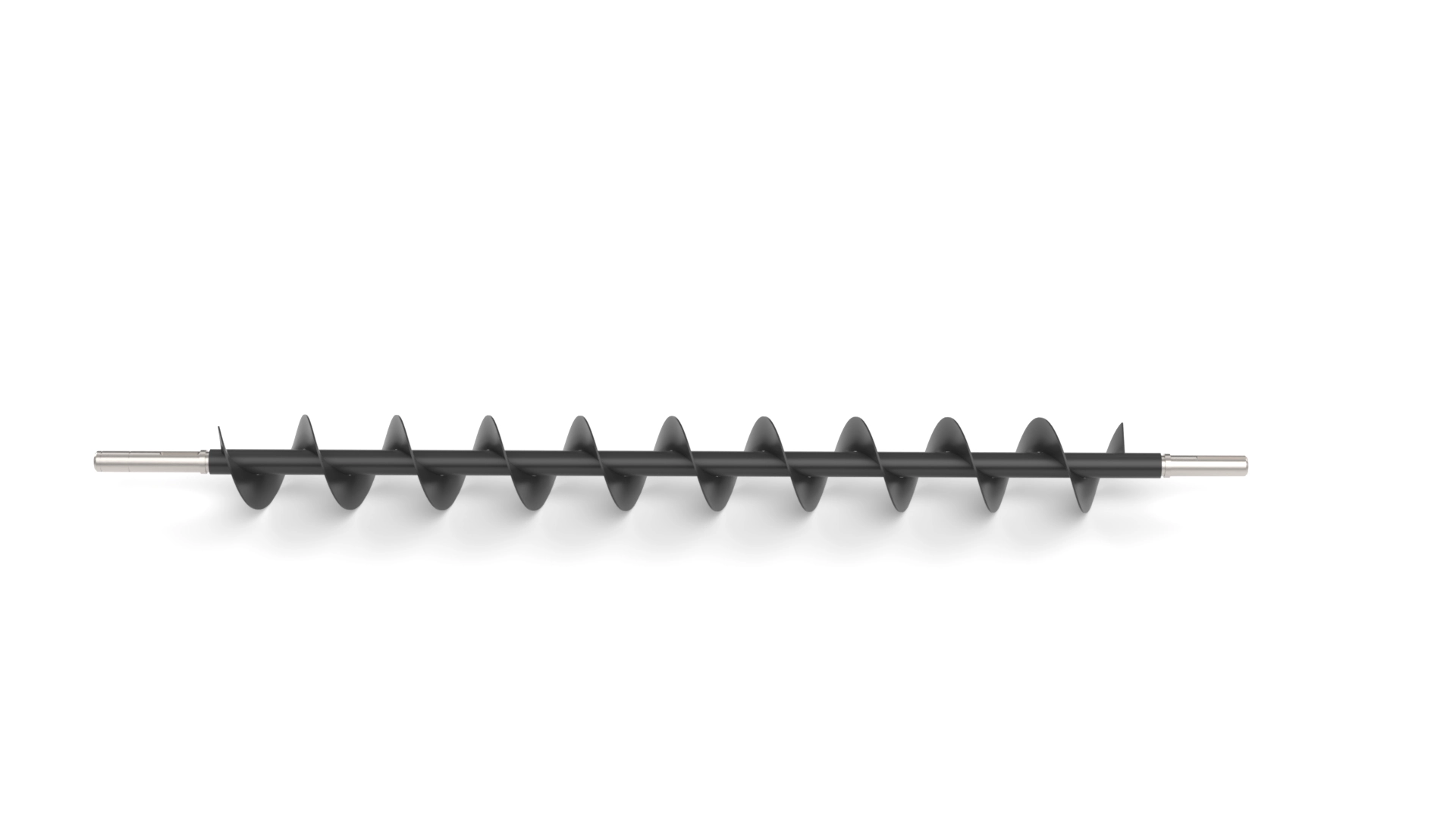

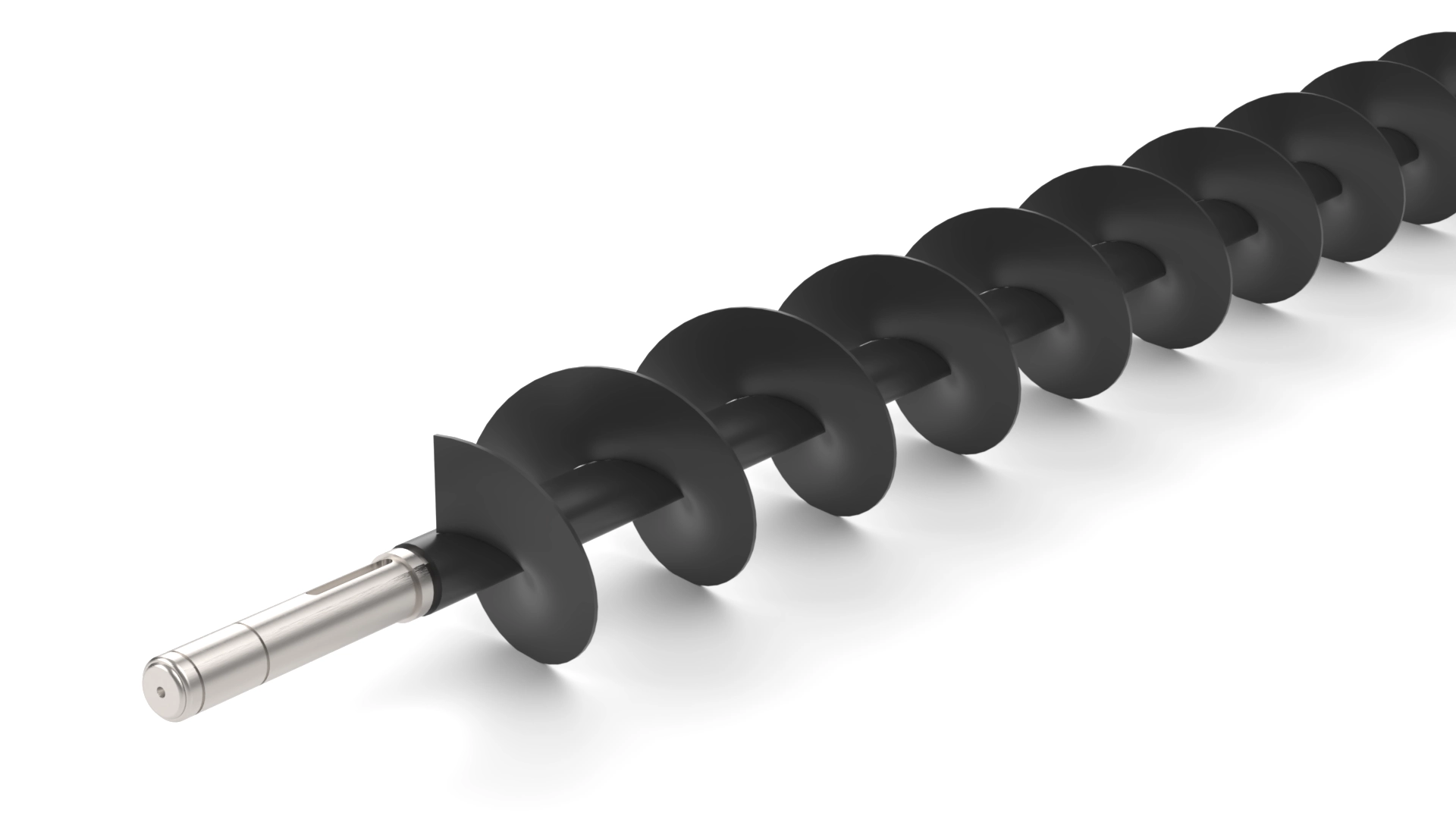

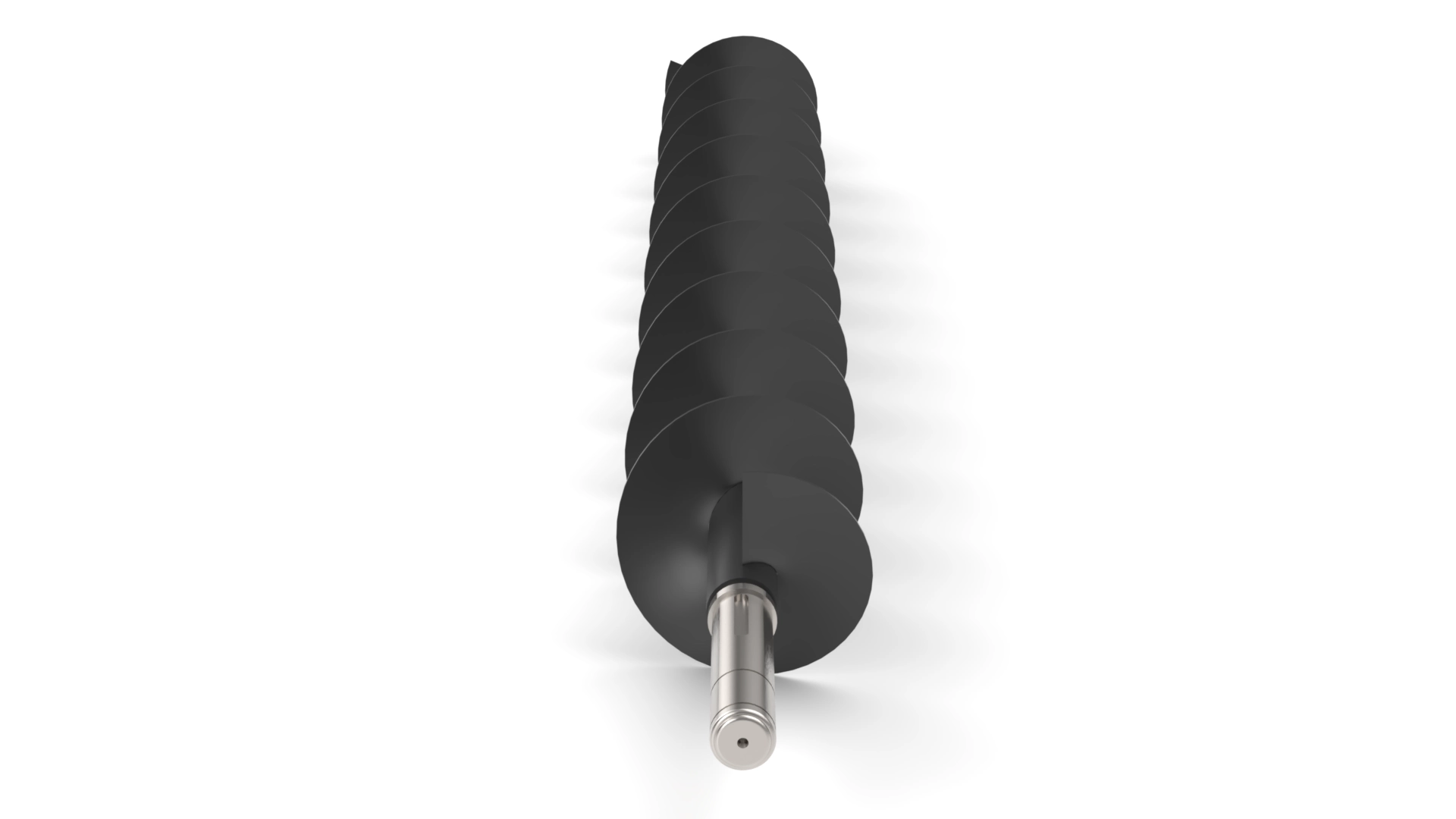

Front Assembly Auger for Combine Harvester
OEM-manufactured front assembly auger designed for efficient material transfer in combine harvesters.
| total screw length mm | 1473 |
| outer screw diameter mm | 155.76 |
| pitch mm | 150 |
| pipe diameter mm | 42 |
| flight thickness mm | 3.4 |
| screw hand | Right |
| bearing to bearing distance mm | 1581 |
| bearing compatibility | 207 bearing (shaft Ø35 mm) |
| material | Mild Steel |
| manufacturing type | OEM - Made as per customer drawing |
| application | Combine harvester front assembly |
Description
The front assembly auger is a precision-engineered component designed for the intake and front handling systems of combine harvesters. It ensures smooth and controlled movement of crop material from the cutting and feeding mechanisms into downstream processing units. Manufactured from high-quality mild steel, the auger features accurately formed screw flights with a uniform pitch to maintain balance and minimize vibration during operation. This controlled feeding helps reduce load fluctuations and wear on associated drive components. The central pipe and shaft assembly are engineered to withstand torsional and bending loads encountered during harvesting, while maintaining precise alignment with bearing housings. Compatibility with standard agricultural bearings allows easy integration and servicing. Produced strictly as per OEM drawings, this auger is intended for combine harvester manufacturers and service replacements where dimensional accuracy, reliability, and durability are critical.
Use Cases
- Front intake material transfer in combine harvesters
- Controlled feeding of crop material during harvesting
- Suitable for wheat, paddy, maize, and similar crops
- OEM integration in agricultural harvesting machinery
- Continuous-duty harvesting operations
