Grain Tank Drive
Stepped grain tank drive shaft with precision bearing journal (208 compatibility) — designed for tank and drive assemblies.
| overall length mm | 222.5 |
| bearing compatibility | 208 (Ø40 mm) |
| bearing journal dia mm | 40 |
| material | Mild Steel (AISI 1045 recommended) |
| surface finish | Bearing journals ground & polished; machined finish elsewhere |
| manufacturing process | Turning, facing, keyway broaching/milling, journal grinding |
| application | Grain tank drive / conveyor drive shaft for agricultural material handling equipment |
Description

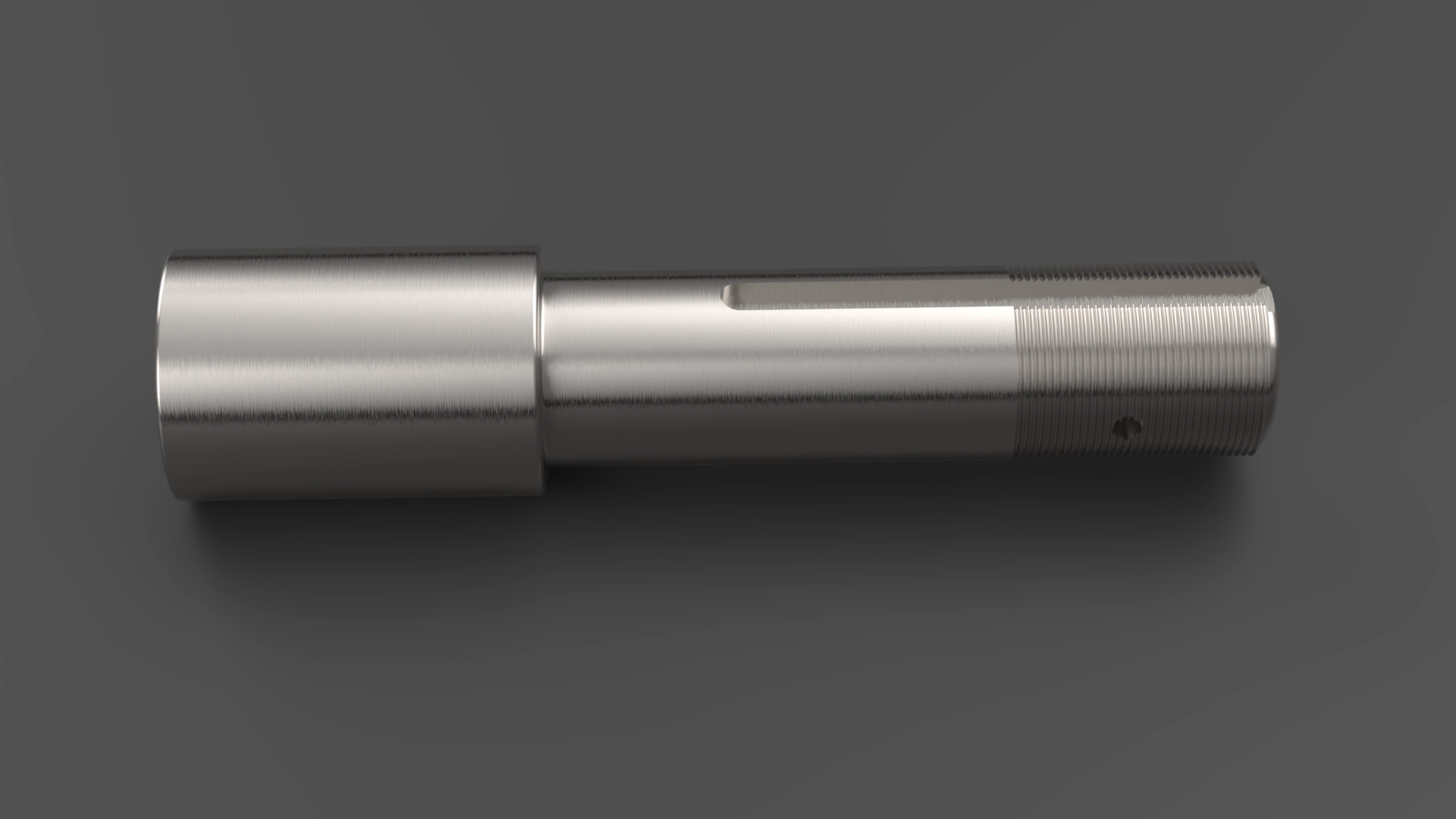

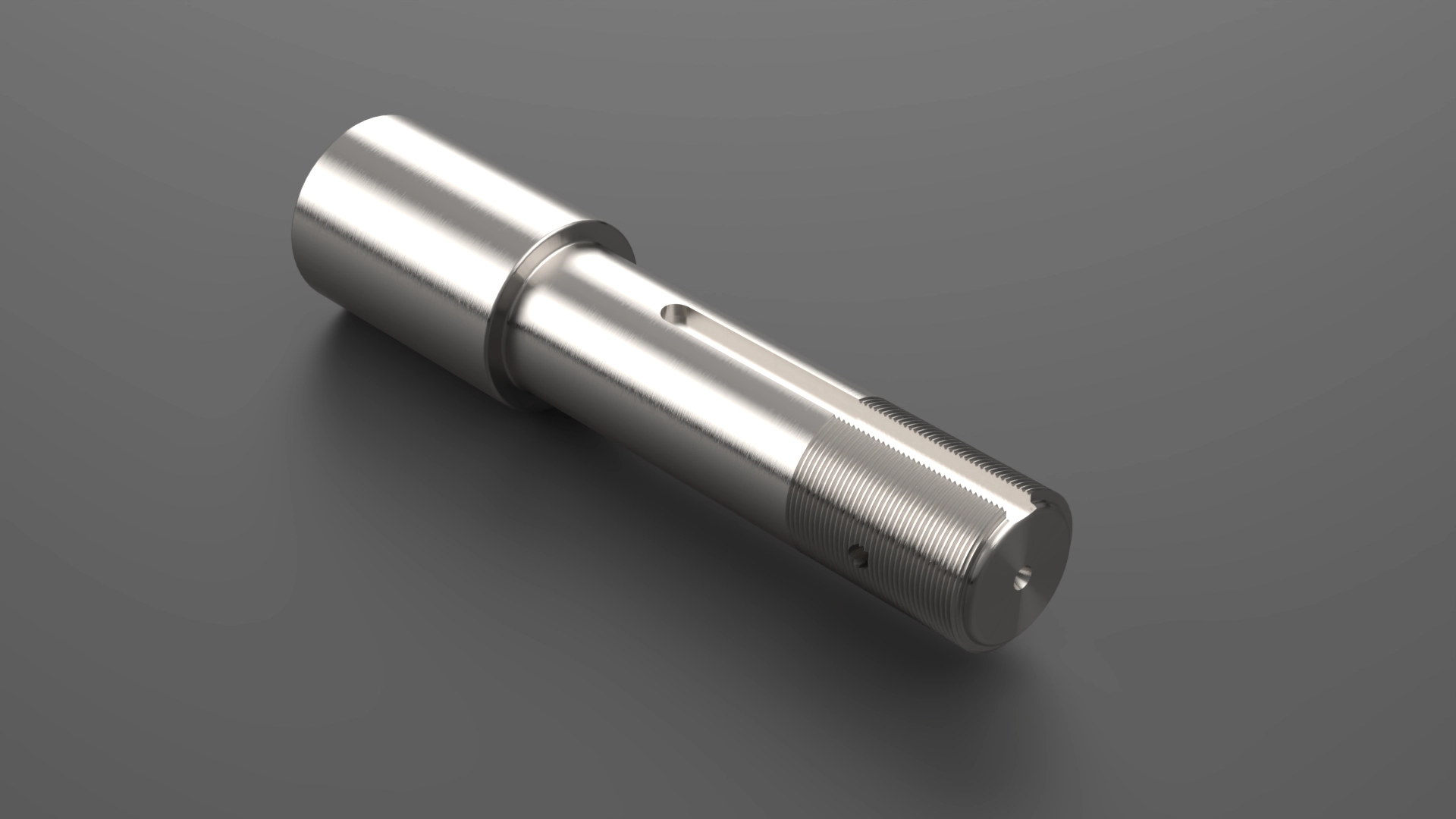

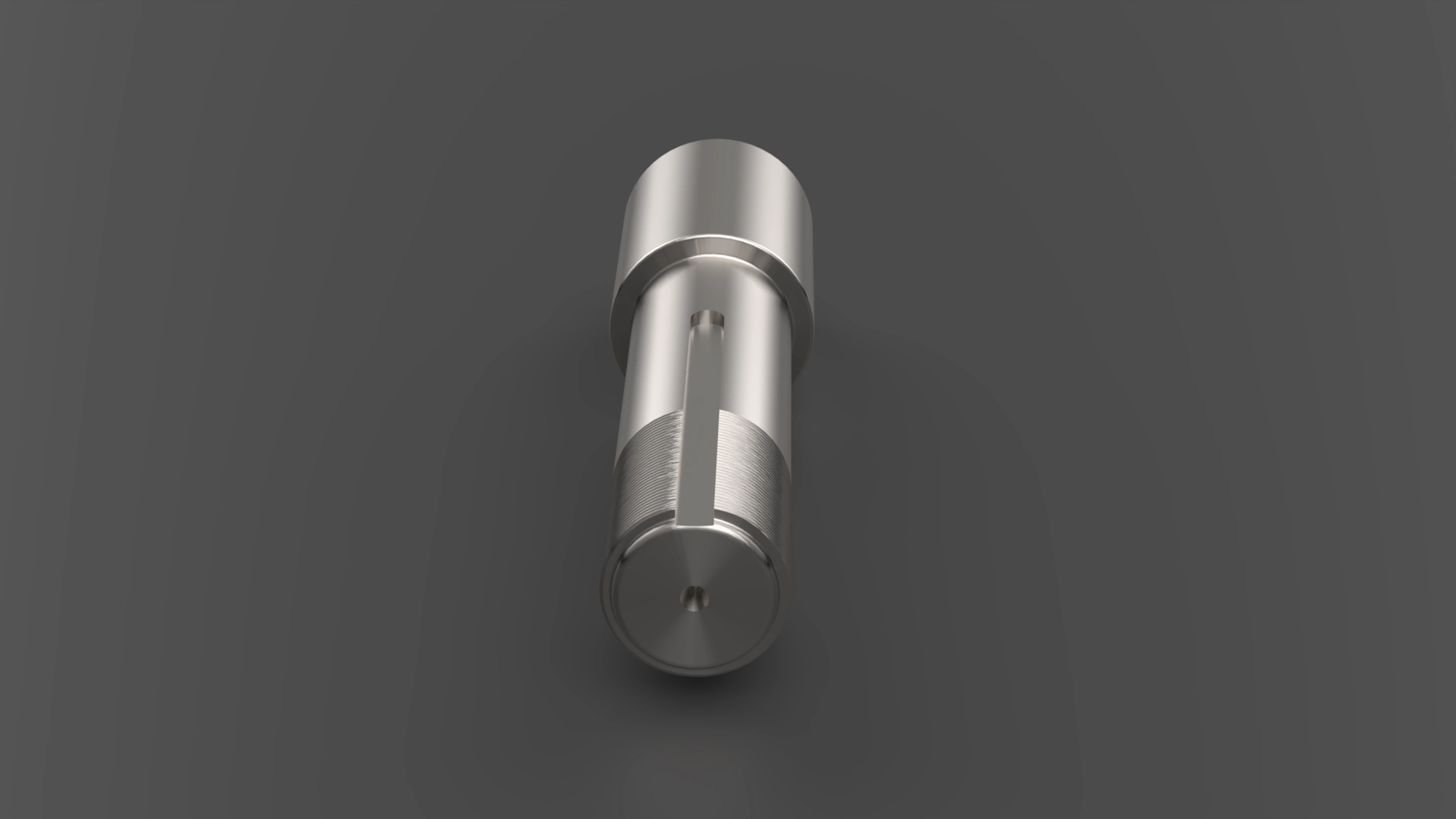

The Grain Tank Drive is a precision-turned drive shaft intended for grain tank and conveyor drive applications. It features a stepped profile, machined bearing journal, keyway slot, and thread/shoulder provisions for secure mounting. Supplied as an OEM replacement or spare, the shaft is manufactured from medium-carbon steel with finished bearing journals for dependable service in agricultural and material handling equipment.
Use Cases
- Drive shaft for grain tank assemblies
- Replacement shaft for grain handling equipment
- Shaft for conveyor drive and tank drive mounts
