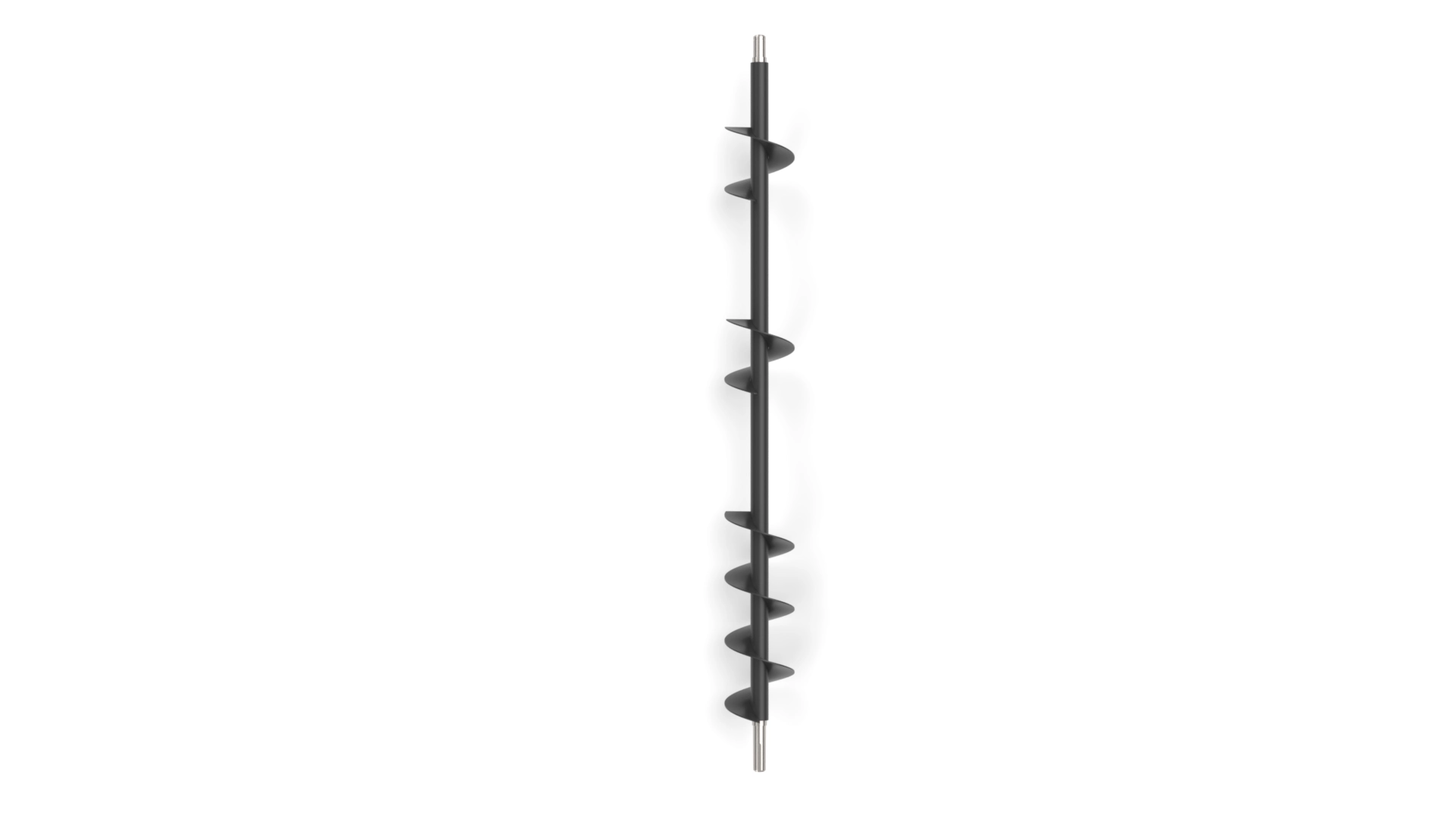

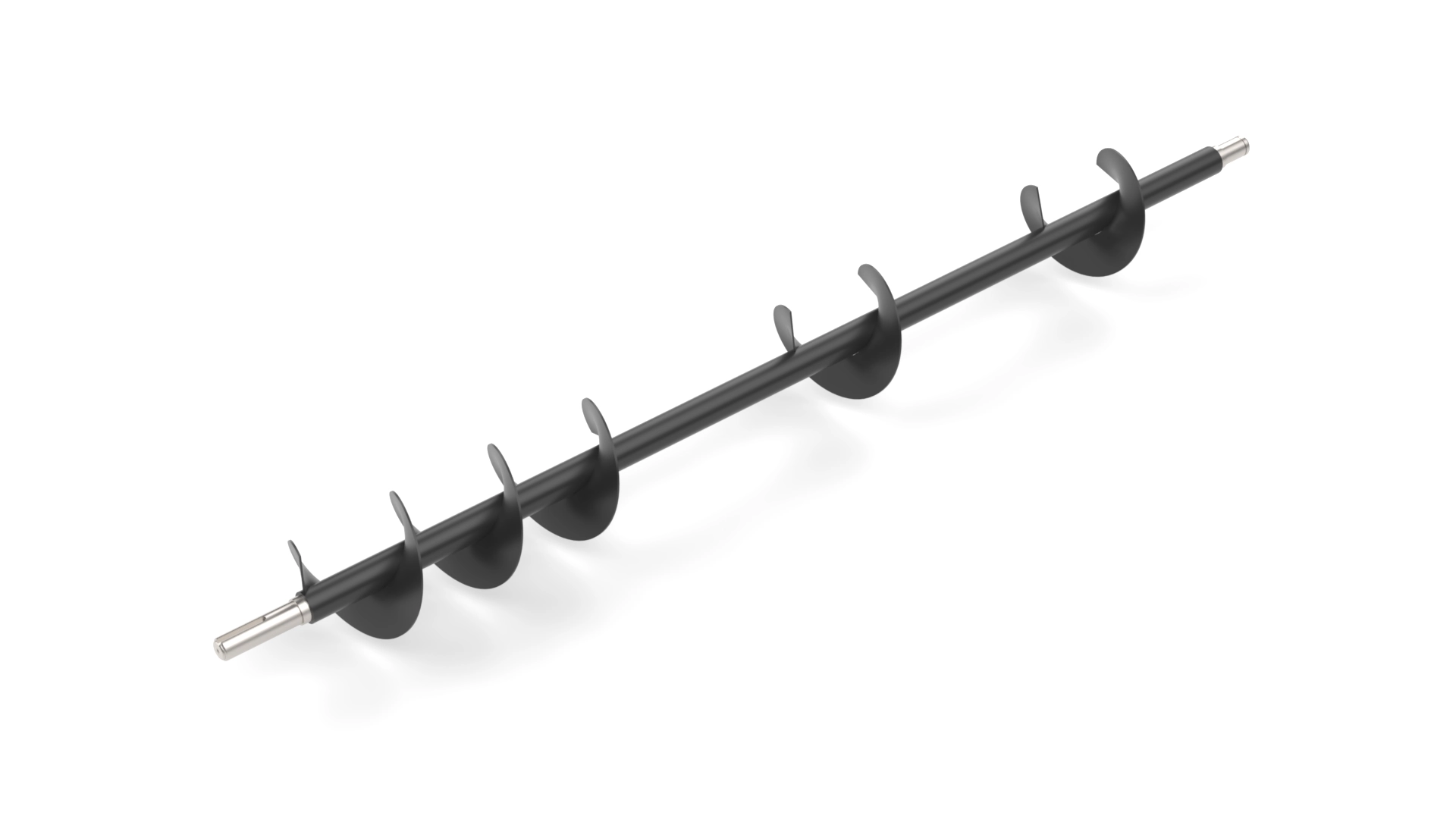

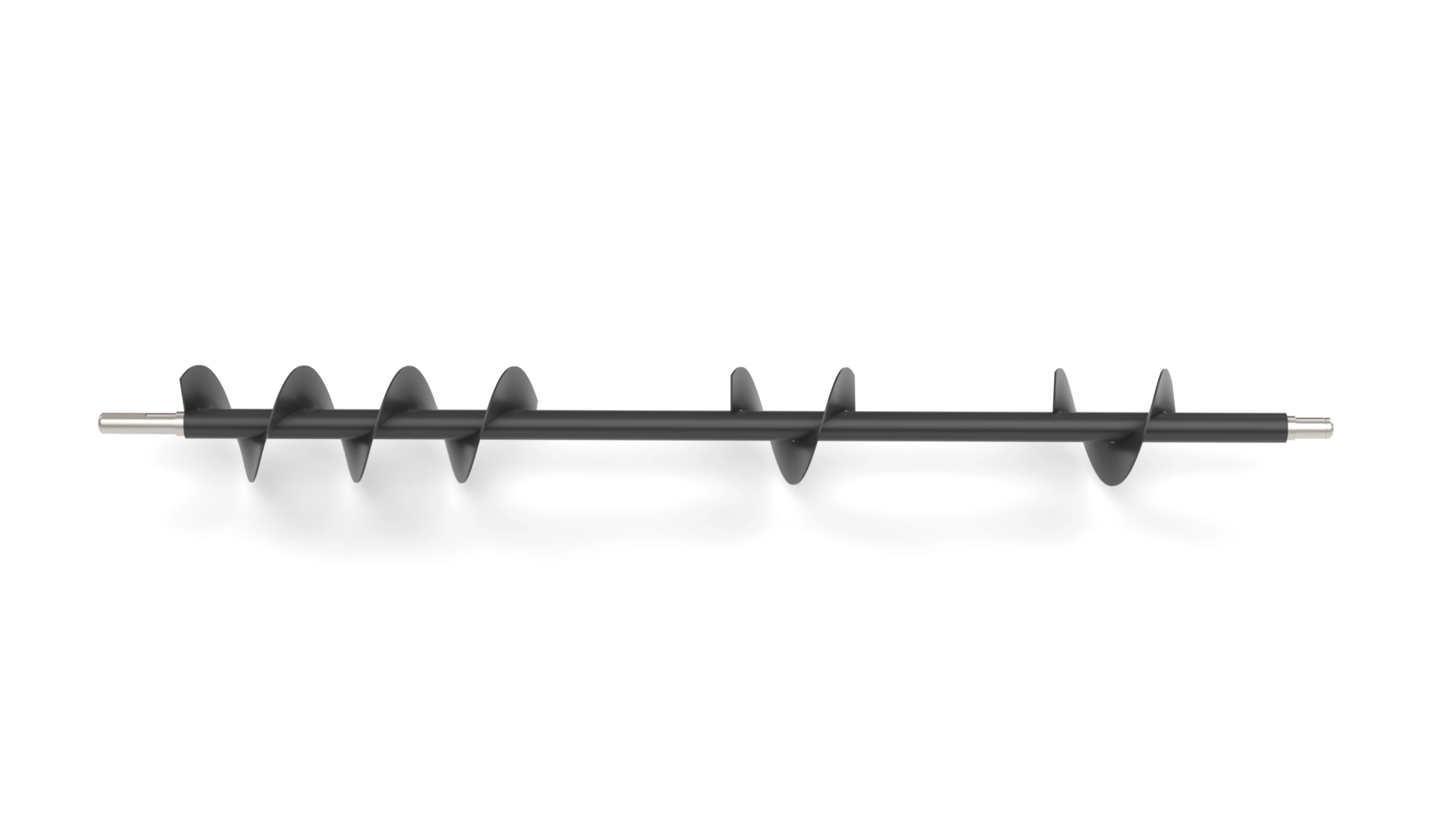

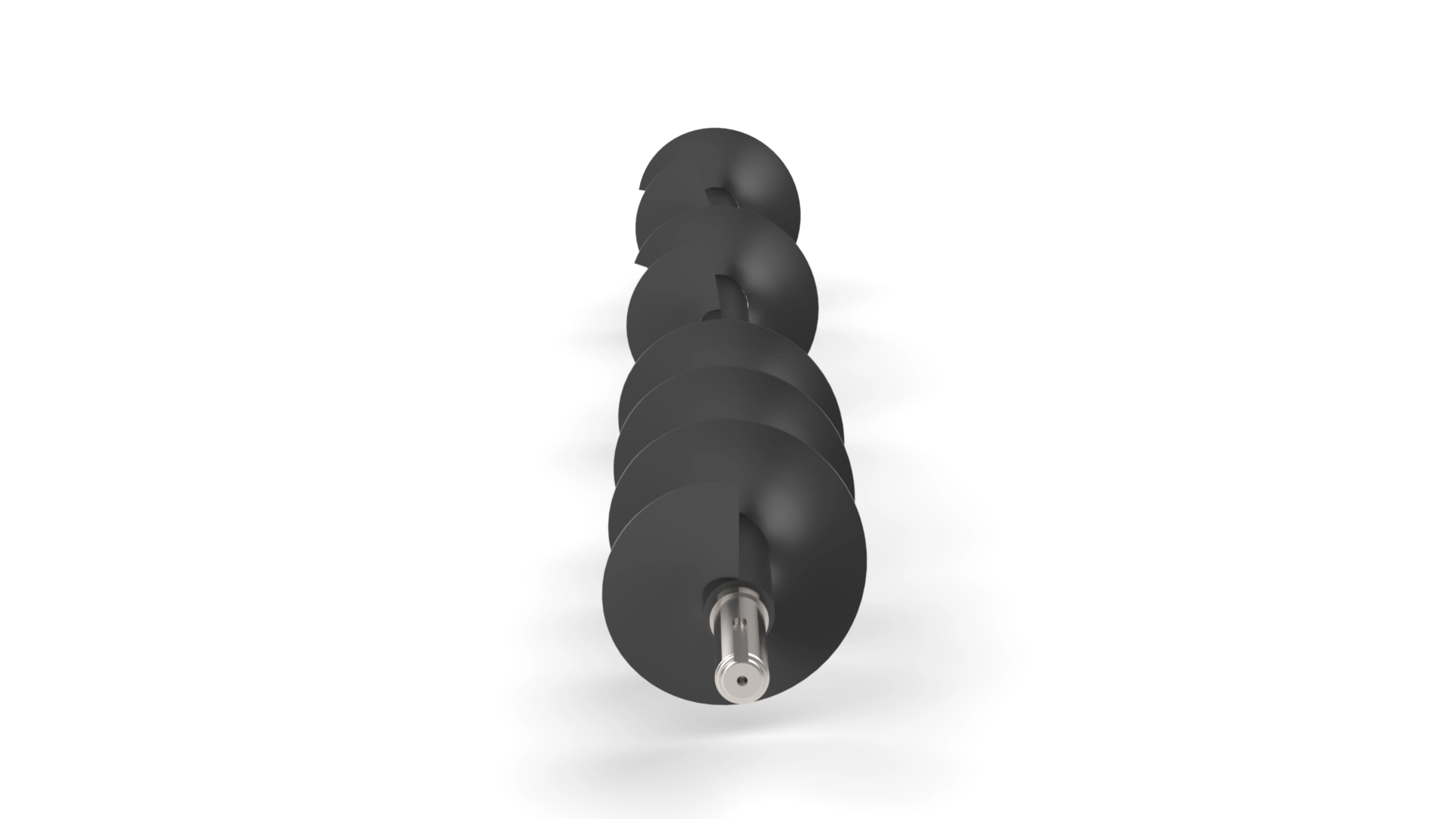

Inlet Auger Assembly
OEM-manufactured inlet auger designed for controlled material intake in agricultural machinery.
| outer screw diameter mm | 162 |
| pitch mm | 145 |
| pipe diameter mm | 42 |
| flight thickness mm | 3.4 |
| bearing to bearing distance mm | 1540 |
| bearing type | 206 |
| shaft diameter mm | 30 |
| hand | Left |
| material | Mild Steel |
| screw configuration mm | 481270173270173 |
| manufacturing type | OEM - Made as per customer drawing |
| application | Inlet auger for agricultural machinery |
Description
The inlet auger assembly is a precision-engineered component designed for controlled material intake in agricultural machinery such as combine harvesters and grain handling systems. This auger features a segmented screw flight configuration with defined gaps between flight sections. This design enables regulated intake of crop material, prevents overfeeding, and ensures even distribution into processing units. Manufactured from high-quality mild steel, the auger provides excellent durability and resistance to torsional stresses during continuous operation. Accurately formed flights maintain consistent pitch and balance, reducing vibration and ensuring smooth rotation. Designed strictly as per OEM drawings, the inlet auger assembly offers reliable performance, dimensional accuracy, and seamless integration into agricultural equipment operating in dusty and abrasive environments.
Use Cases
- Controlled material intake in combine harvesters
- Feeding crop material into processing and threshing units
- Suitable for wheat, paddy, maize, and similar grains
- OEM agricultural machinery manufacturing
- Continuous-duty harvesting operations
