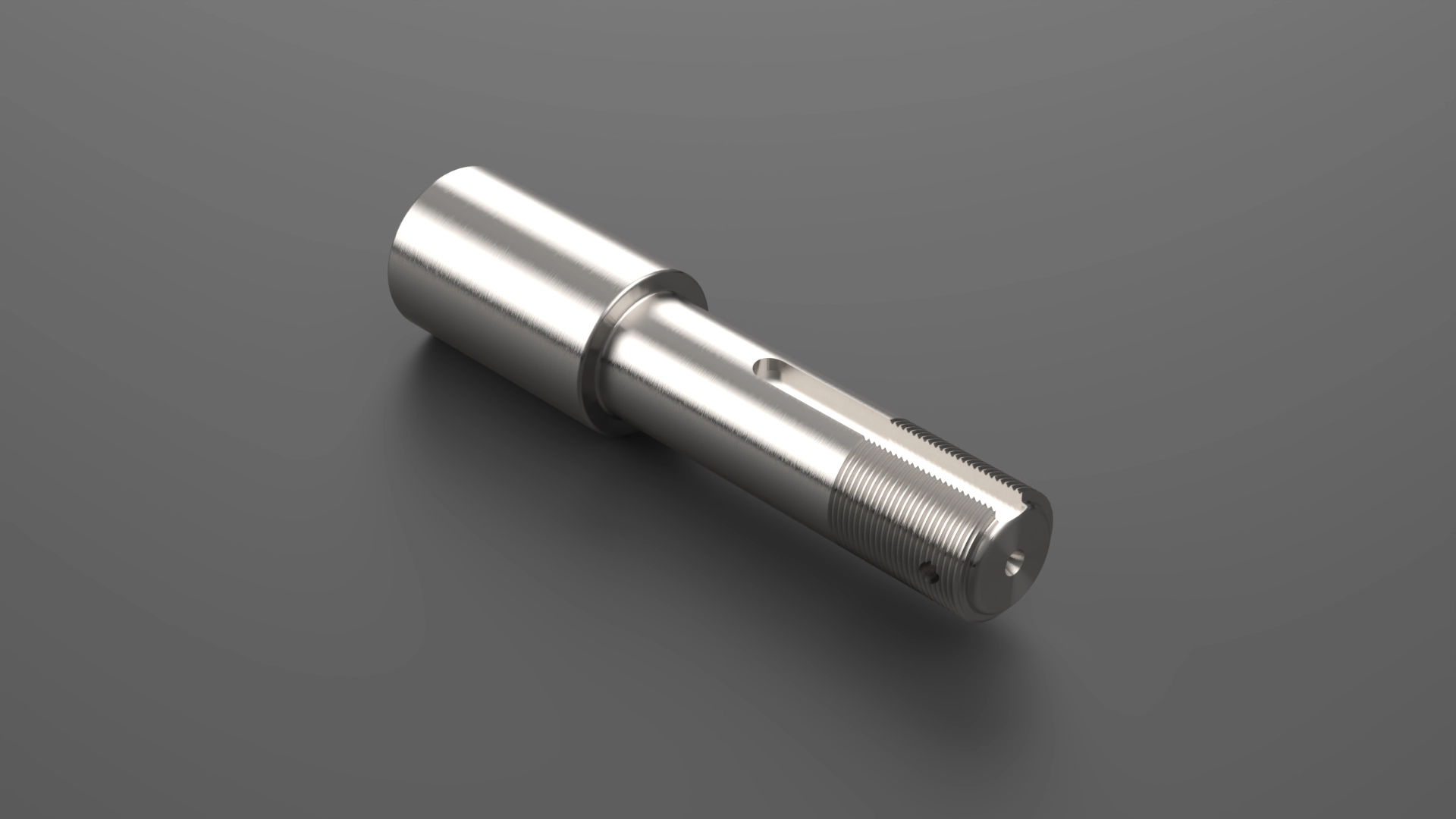

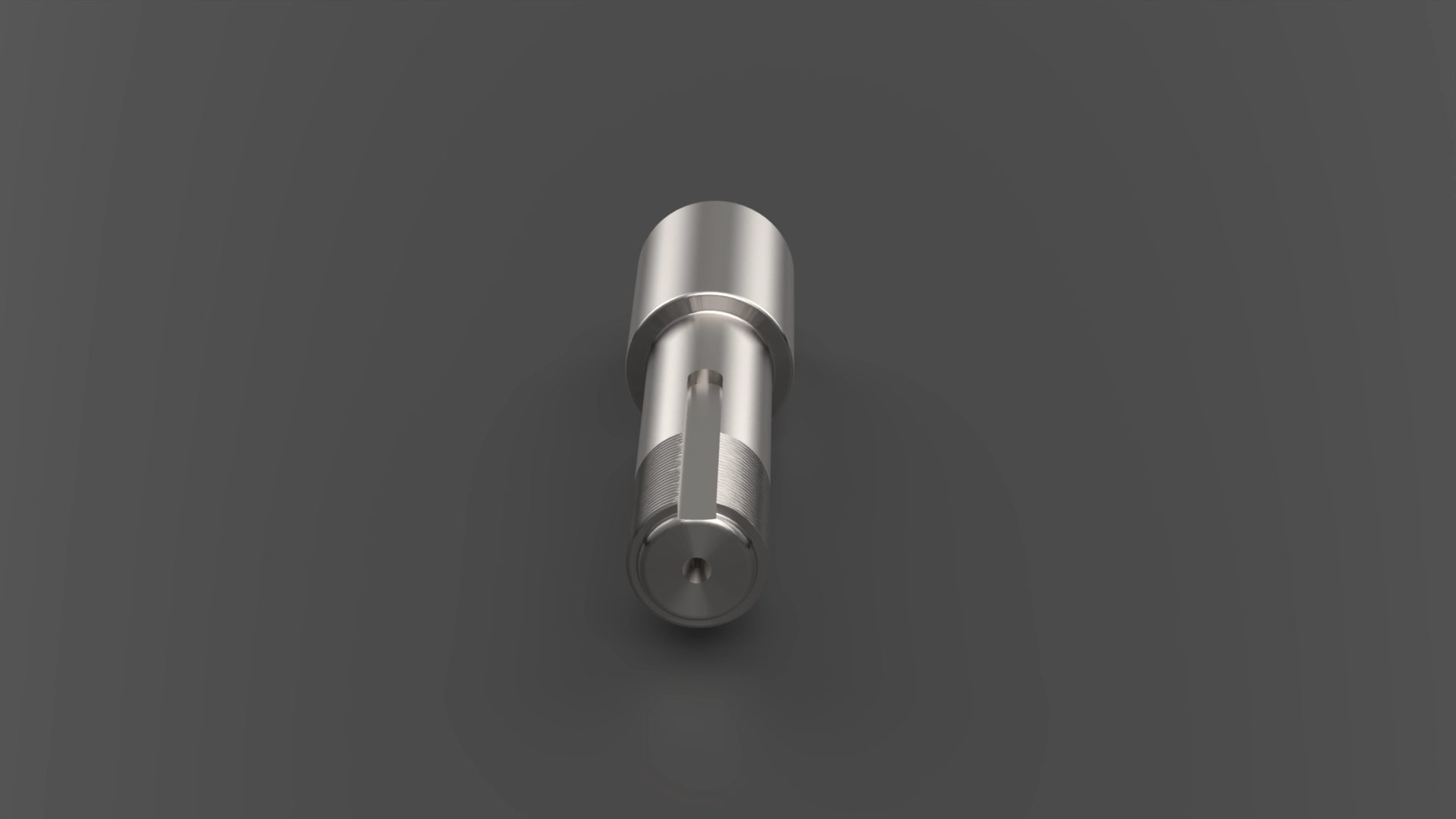

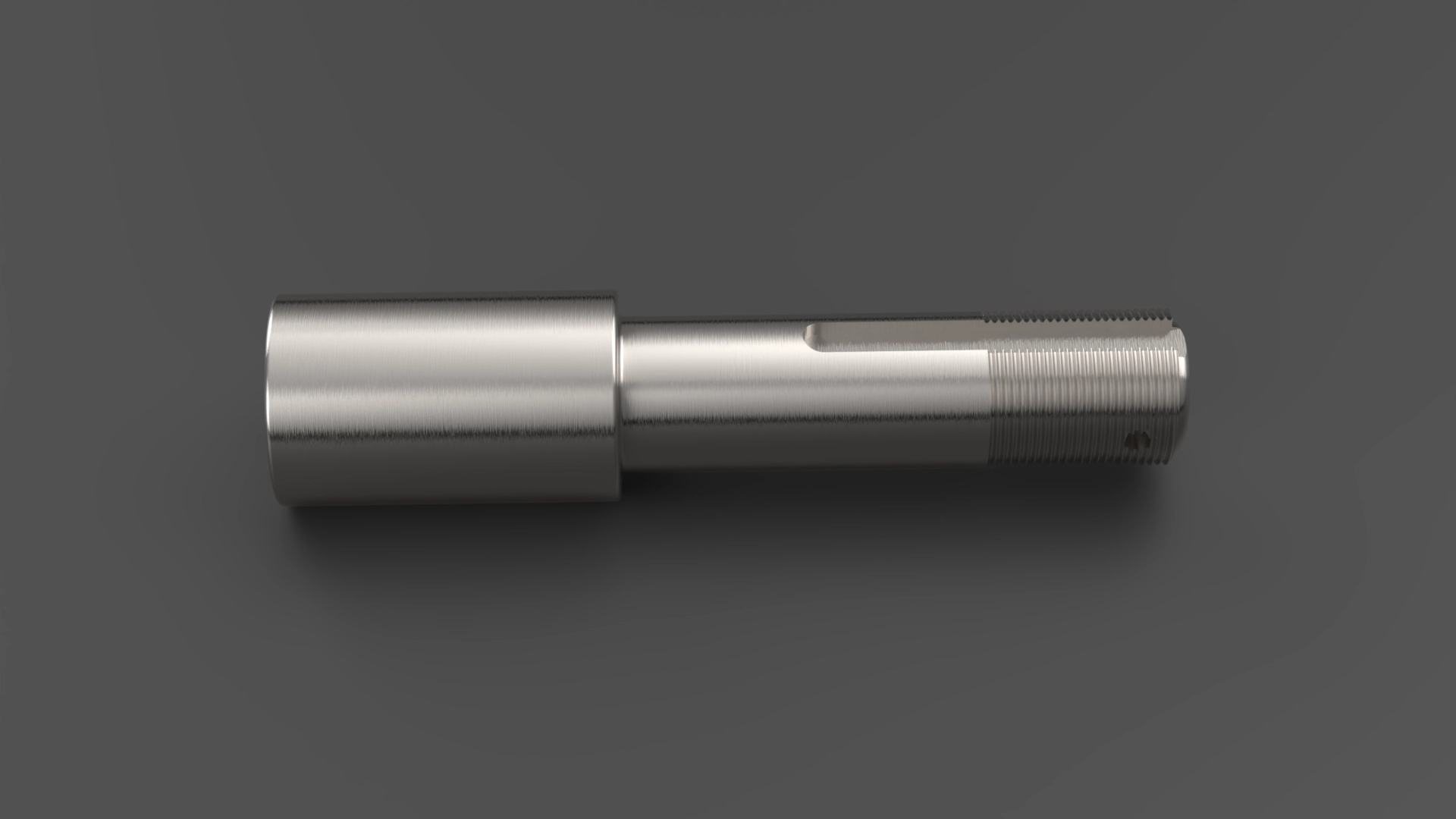

Inlet Rethreshing Drive
Stepped inlet rethreshing drive shaft with 206 bearing journal (Ø30 mm), 8×4 mm keyway and overall length 172 mm.
| overall length mm | 172 |
| bearing compatibility | 206 (Ø30 mm) |
| bearing journal dia mm | 30 |
| material | Mild Steel (AISI 1045 recommended) |
| surface finish | Bearing journals ground & polished; machined finish elsewhere |
| manufacturing process | Turning, facing, keyway broaching/milling, journal grinding |
| application | Inlet rethreshing drive / rethreshing shaft for combine and conveyor assemblies |
Description
The Inlet Rethreshing Drive is a precision-machined stepped shaft engineered for inlet and rethreshing assemblies in combine and material-handling equipment. It includes a dedicated bearing journal sized for 206 bearings (Ø30 mm), an 8×4 mm keyway for positive coupling, and stepped shoulders for accurate locating. Bearing journals are ground and polished for reliable bearing fit and extended service life. Manufactured from medium-carbon mild steel and finished using turning, keyway broaching/milling and journal grinding, this shaft is supplied as an OEM replacement or spare where dimensional accuracy and dependable bearing support are required. It is designed to withstand typical torsional loads seen in rethreshing operations while remaining easy to install and service.
Use Cases
- Replaces inlet/rethreshing drive shafts in combines
- Support shaft for inlet and rethreshing conveyor assemblies
- OEM replacement component for agricultural equipment
