Jhandeana Row Mulcher 508x
Side manure spreader / row mulcher — PTO driven with main chain conveyor and 6° adjustable side spreader belt.
| volume mm3 | 3868306820.4 |
| power drive | PTO-driven |
| main conveyor | Chain |
| adjustable spreader angle deg | 6 |
| removable extender | |
| body length mm | 2683.79 |
| body width mm | 1220 |
| body height mm | 800 |
| extender height mm | 304.8 |
| extender top width mm | 1864.55 |
| internal top beams count | 2 |
| internal bottom beam count | 1 |
| wheel count | 4 |
| wheel tire spec | 184 R15 (Ø ~640 mm) |
| covers | Removable M10-bolted covers; separable extender panels |
| application | Side manure spreading and row mulching for agricultural use |
Description

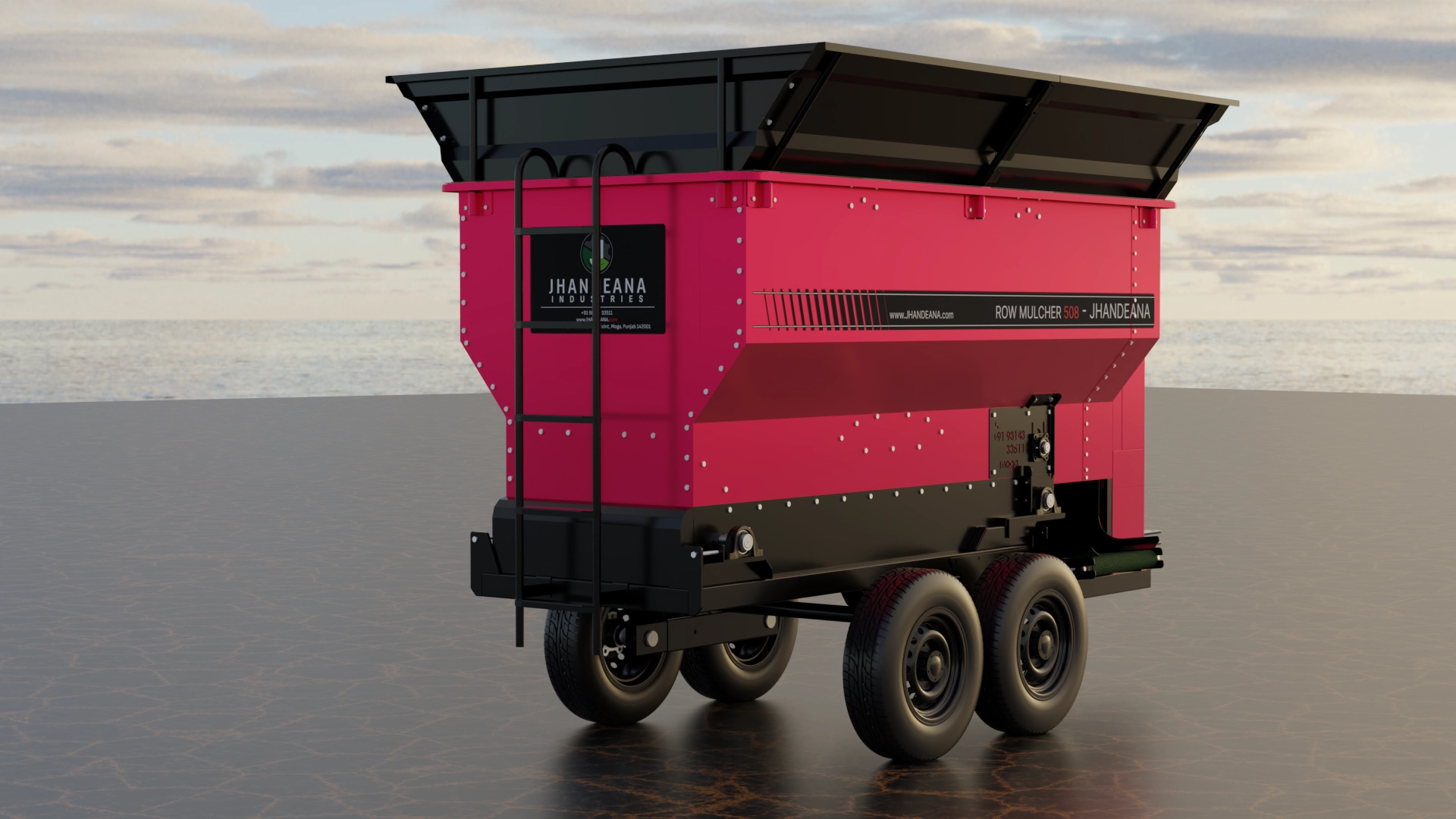

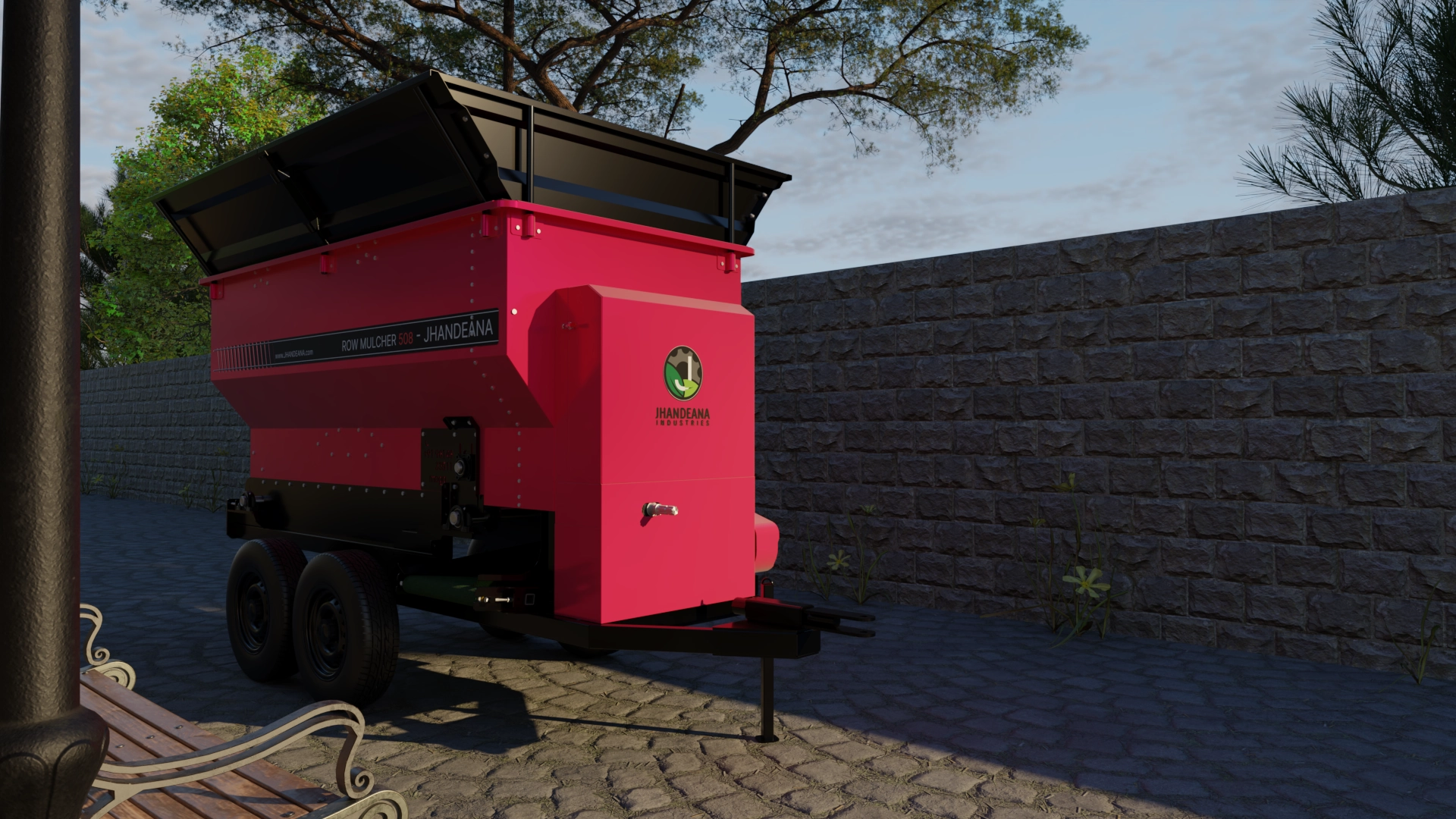

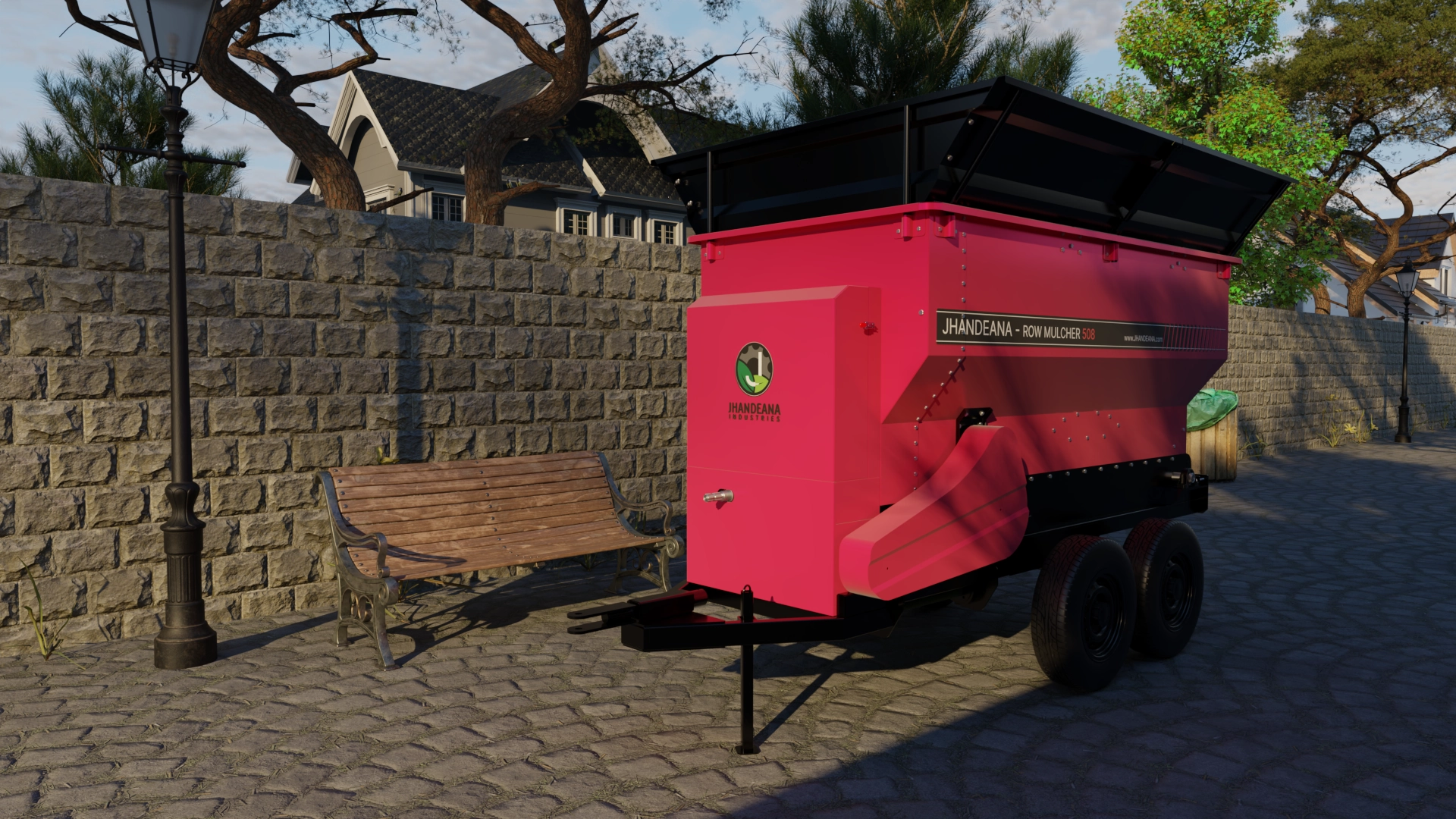

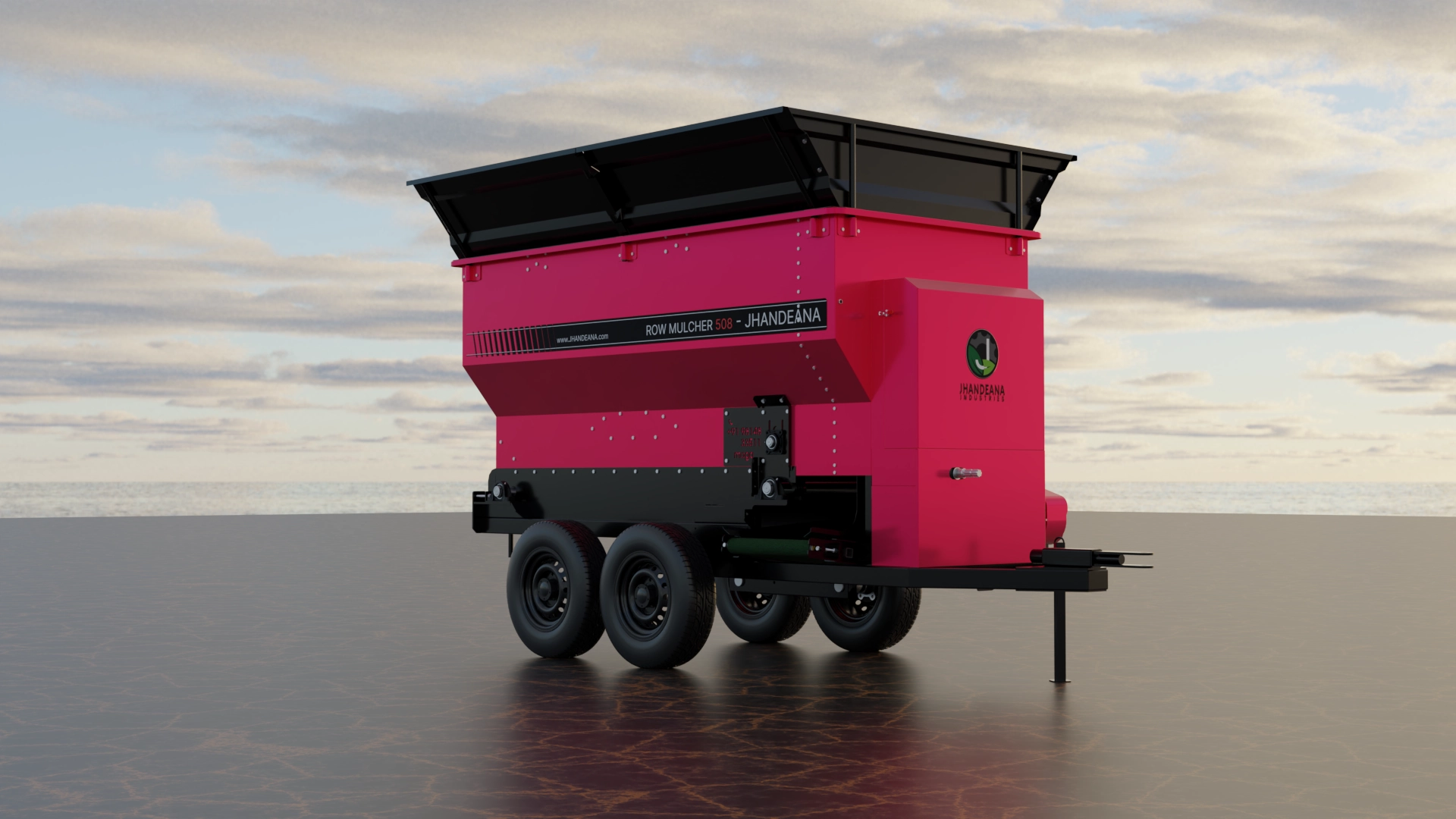

The Jhandeana Row Mulcher 508x is a heavy-duty side manure spreader designed for reliable, consistent spreading and mulching in orchards and row crops. PTO-driven with a robust chain main conveyor, it uses an adjustable 6° side spreader belt to achieve controlled side-dressing. The body features a removable volume extender (unscrews on four walls) and a rear inspection ladder for quick access. Built with a 10 GA U-trough and internal support beams above the conveyor to protect the chain from direct bucket loads, this unit is transportable and serviceable. Wheels are rugged 184 R15 winter tyres (~640 mm diameter) with a mixed axle arrangement for stability. The unit is ideal for farms and contractors needing a durable, easy-to-service spreader with modular covers and extender capability.
Use Cases
- Side-dressing and manure spreading along drip lines
- Row mulching and fertilizer spreading in orchards
- Portable farm spreading for plantations and vineyards
