Tailing Assembly Shaft 1

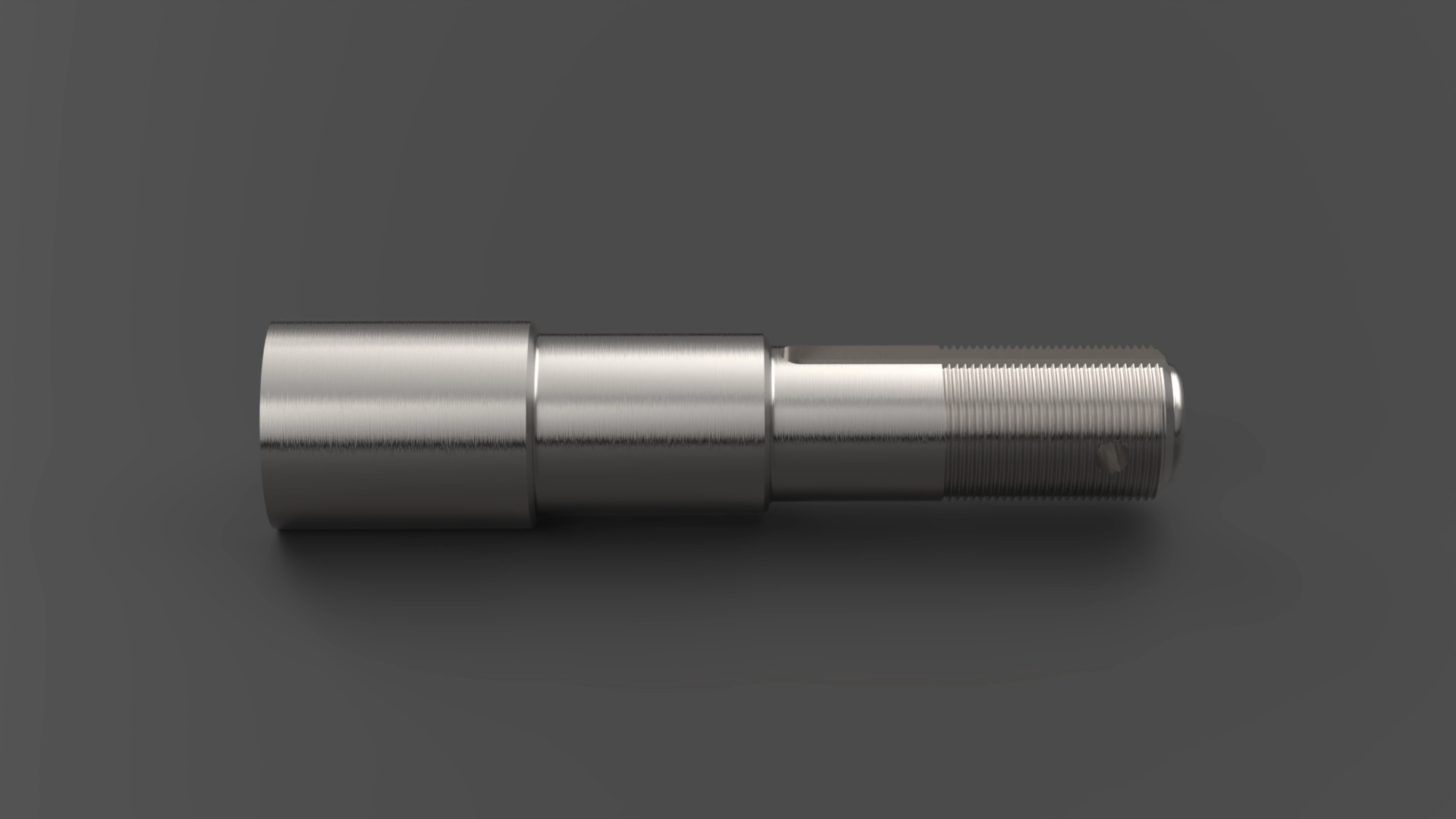

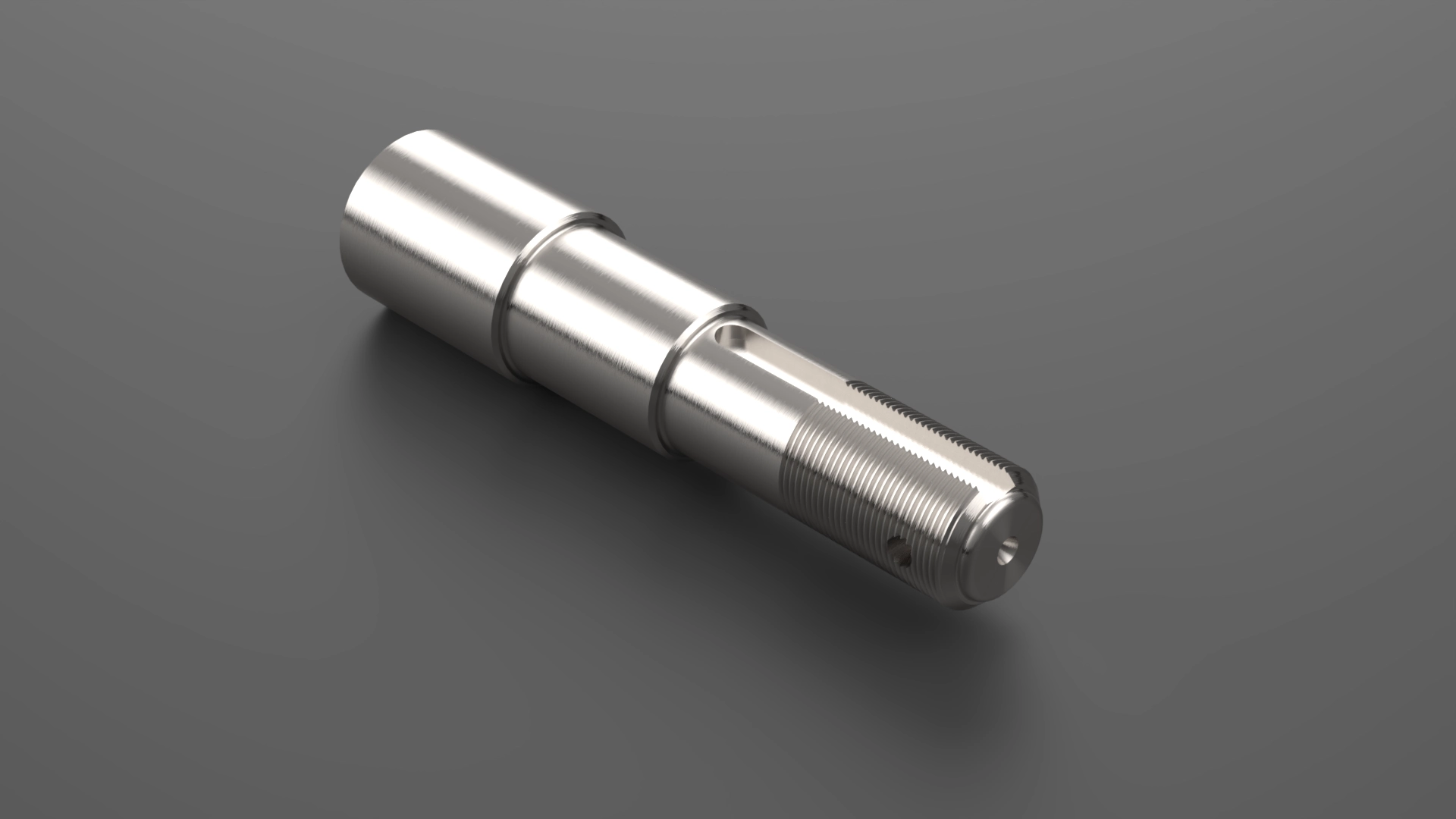

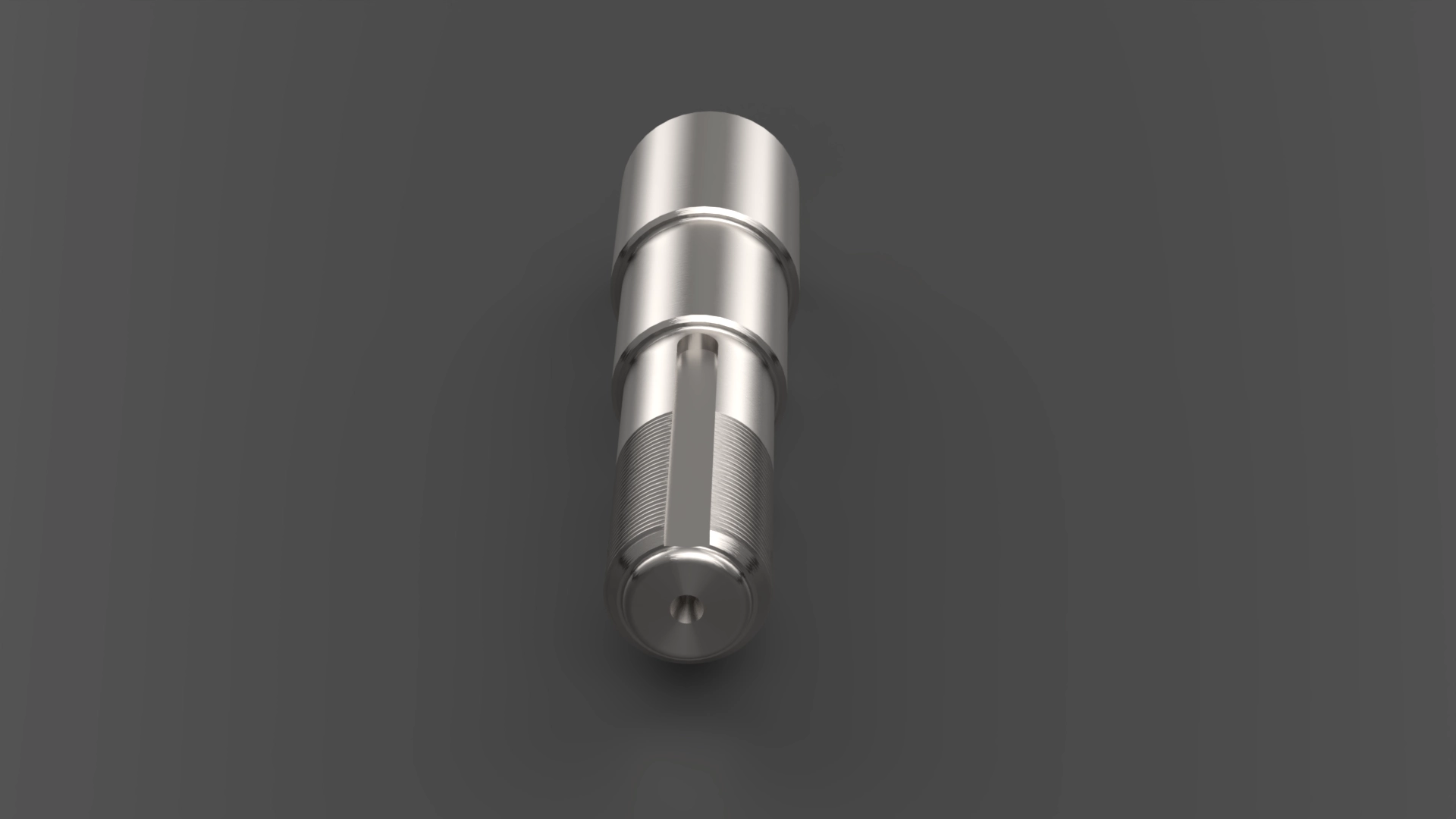

Stepped tailing assembly shaft with 206 bearing journal (Ø30 mm), threaded end and stepped diameters — overall length 172 mm.
| overall length mm | 172 |
| bearing compatibility | 206 (Ø30 mm) |
| bearing journal dia mm | 30 |
| material | Mild Steel (AISI 1045 recommended) |
| surface finish | Bearing journals ground & polished; machined finish elsewhere |
| manufacturing process | Turning, facing, thread cutting, grinding on journals |
| application | Tailing assembly / shaft end support in conveyors and agricultural machinery |
Description
Tailing Assembly Shaft 1 is a precision-machined stepped shaft used in tailing/assembly applications. The shaft features multiple diameters with a dedicated bearing journal sized for 206 bearings (Ø30 mm), a threaded end for end-fixings, filleted radii at shoulders, and machined clearance/slot features shown in the drawing. Manufactured from mild steel with precision turning and finish grinding at bearing journals, the shaft is suitable as a replacement or OEM supply for conveyor and machine tailing assemblies where accurate bearing fit and axial retention are required.
Use Cases
- Bearing journal for 206 bearings (Ø30 mm)
- Tail/assembly shaft for conveyor and auger end mounts
- Replacement shaft for drive/support assemblies
- Used in agricultural and material handling equipment
