Tailing Assembly Shaft 2

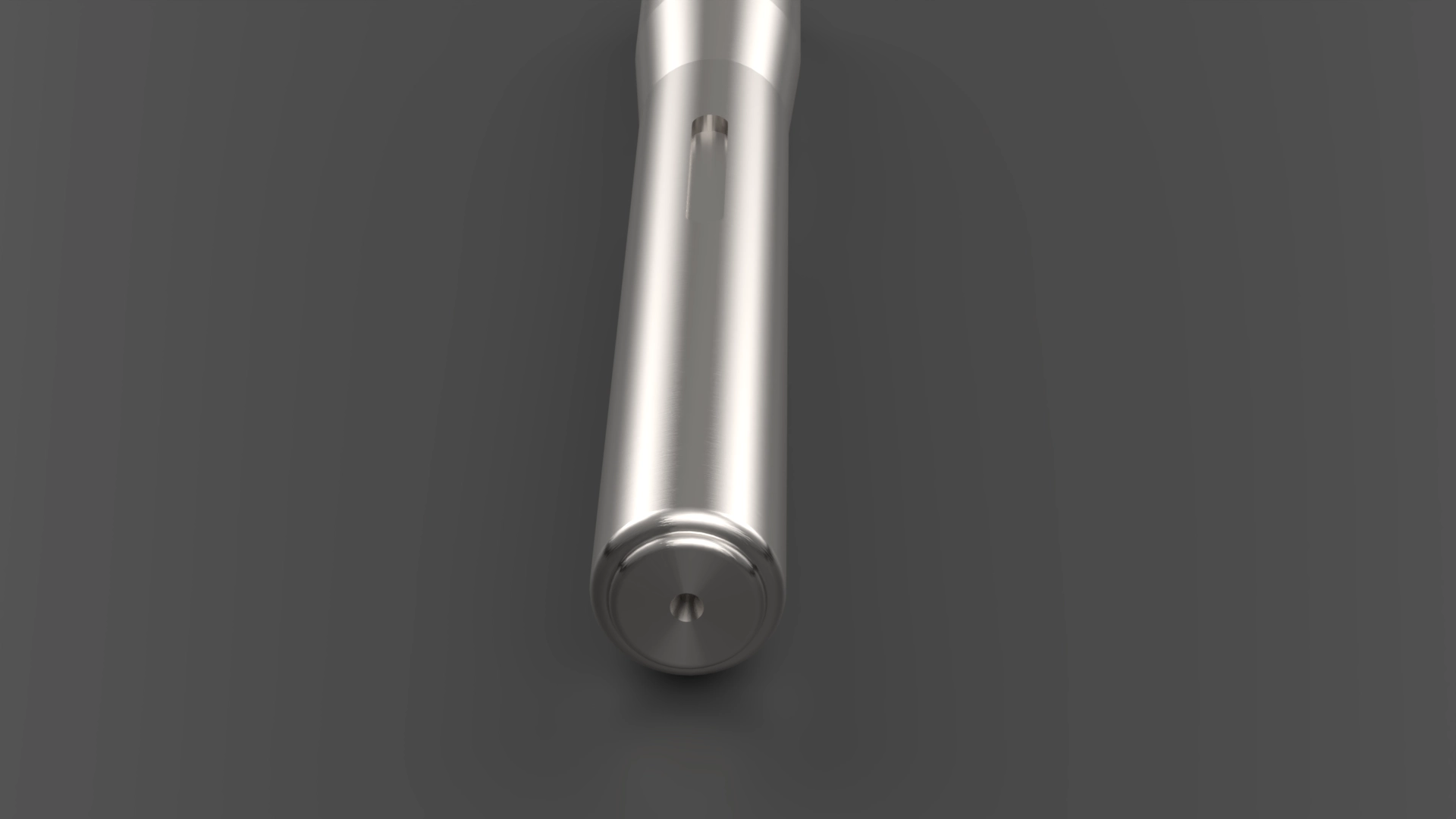

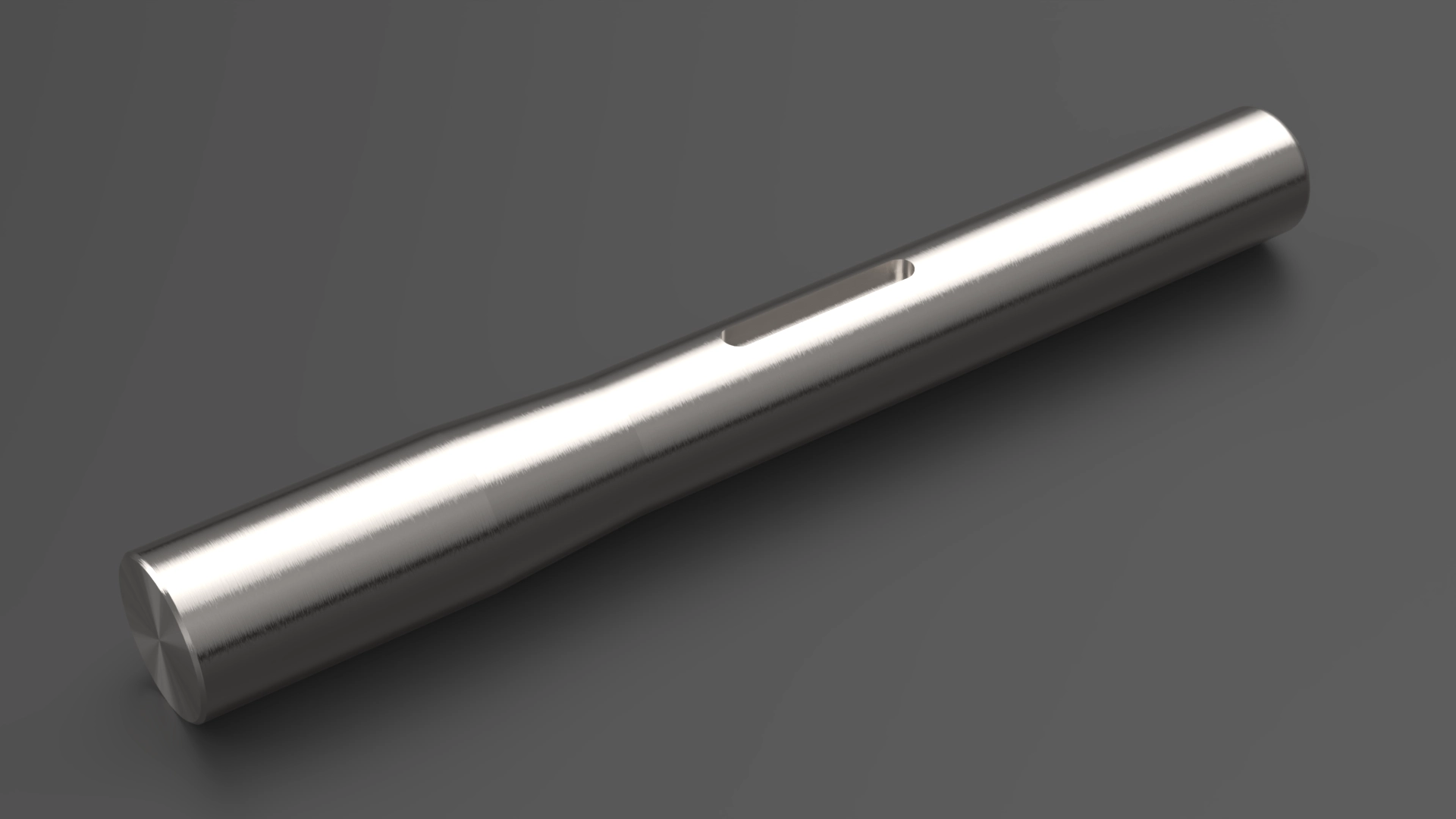

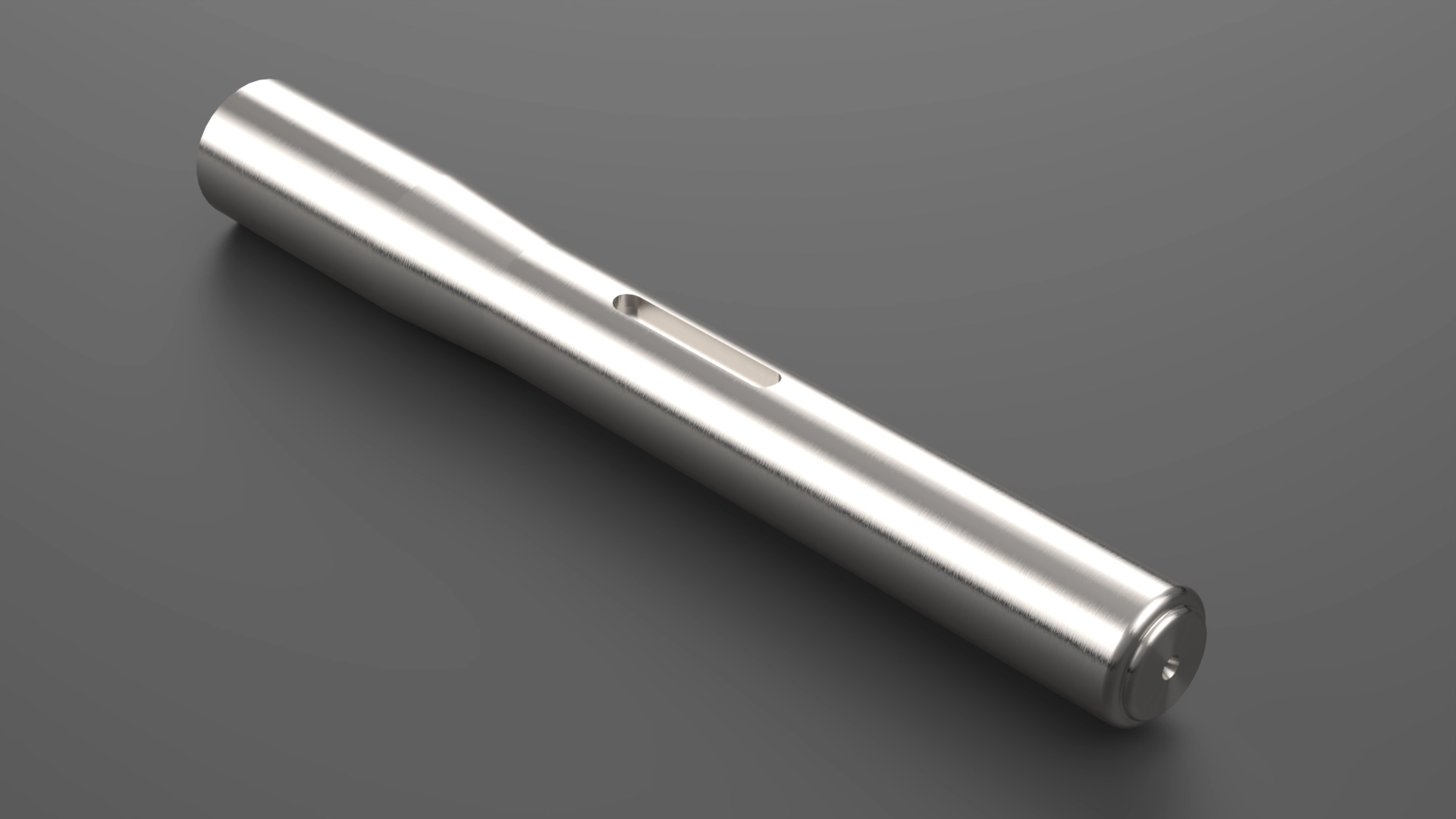

Stepped tailing/assembly shaft with 207 bearing journal (Ø35 mm), 8×4 mm keyway and overall length 322.76 mm.
| overall length mm | 322.76 |
| bearing compatibility | 207 (Ø35 mm) |
| bearing journal dia mm | 35 |
| material | Mild Steel (AISI 1045 recommended) |
| surface finish | Bearing journals ground & polished; machined finish elsewhere |
| manufacturing process | Turning, facing, keyway broaching/milling, journal grinding |
| application | Tailing/assembly shaft for conveyors and agricultural and material handling equipment |
Description
Tailing Assembly Shaft 2 is a precision-turned and finished stepped shaft designed for tailing and assembly applications in conveyors and agricultural machinery. The part features a bearing journal sized for 207 bearings (Ø35 mm), a long stepped main body, an 8×4 mm keyway, filleted shoulders, and a small taper section. Bearing journals are ground and finished to tight tolerances for reliable bearing fit and long service life. Manufactured from medium-carbon steel and supplied as OEM replacement or spare shaft for assemblies requiring accurate journal fits and keyed coupling.
Use Cases
- Bearing journal for 207 bearings (Ø35 mm)
- Tailing/assembly shaft for conveyors and auger end mounts
- Replacement shaft for agricultural and material handling equipment
- Shaft with keyway for keyed couplings and pulleys
