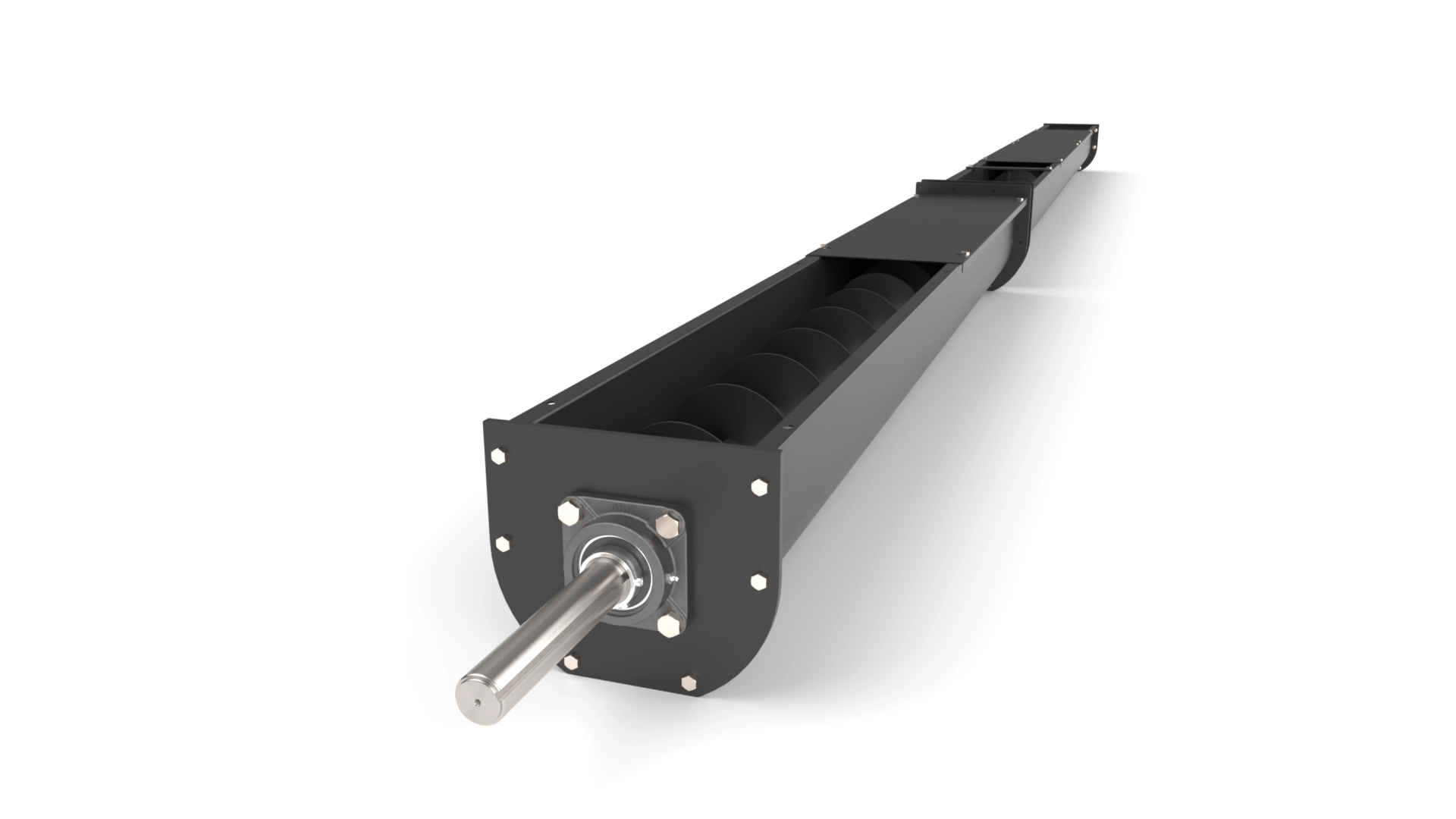

U-Shaped Screw Conveyor – 255mm Dia (22 ft)
22 ft U-shaped screw conveyor (Ø255 mm) with two identical left-hand augers, separable 2.5 m section and removable M10 covers.
| u trough diameter mm | 255 |
| total length mm | 6705.6 |
| sheet thickness | 10 GA |
| material | Mild Steel |
| separable section length mm | 2500 |
| separable section drive shaft bearing | UCF 210 |
| drive shaft length in | 10 |
| drive shaft cotter width | 8mm |
| opposite section bearing | 208 |
| number of augers | 2 |
| auger outer diameter mm | 211 |
| auger pitch mm | 180 |
| auger thickness mm | 3 |
| auger pipe outer dia mm | 60 |
| flight hand | Left |
| coupling | Profiled sleeve + coupling (10-profile sleeve) |

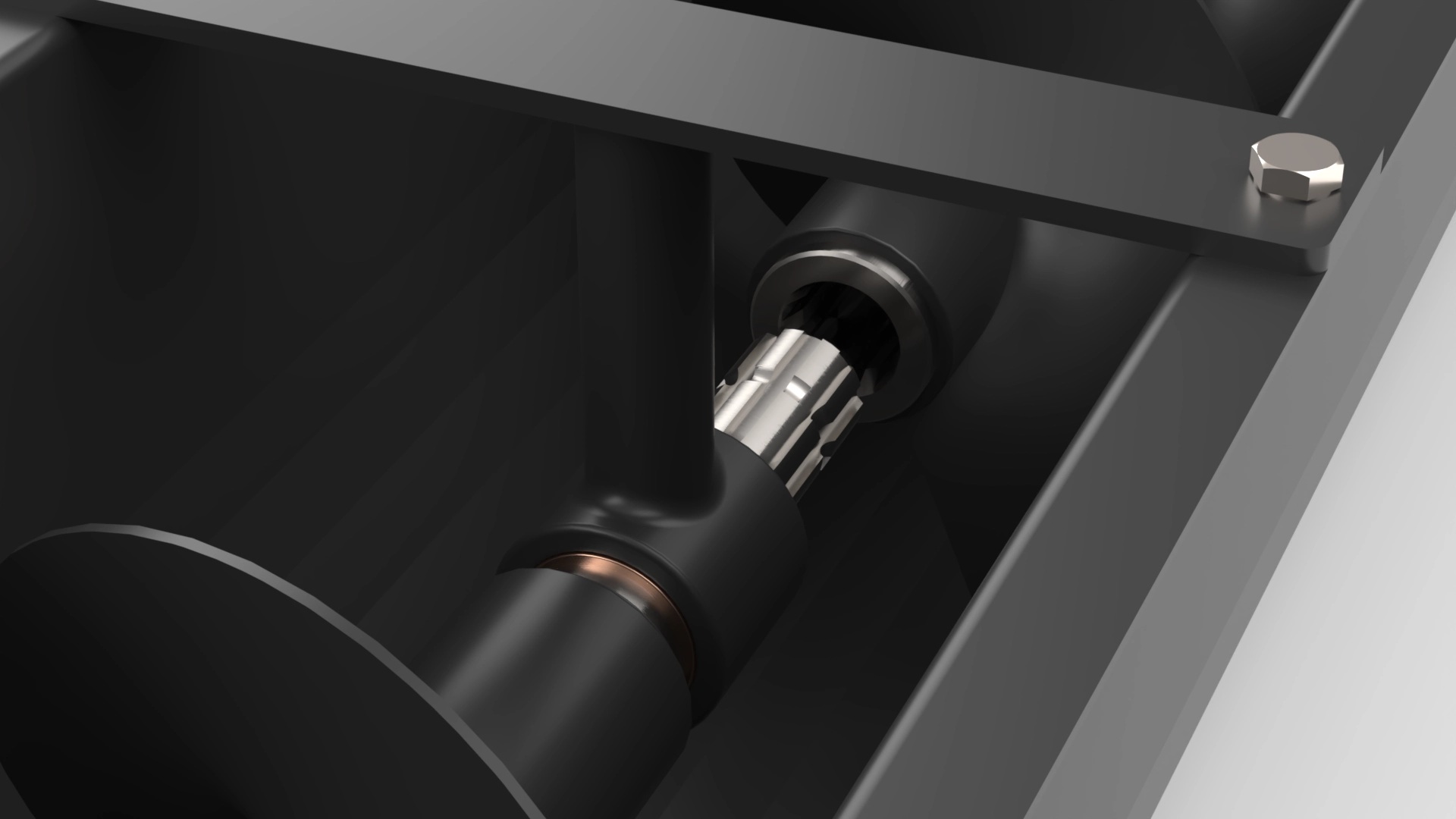

| hanger bush bearing | Yes |
| covers | Separable section: 2 equal removable covers (M10 bolts); Other section: removable covers with M10 bolts, 2 ft uncovered gap at end |

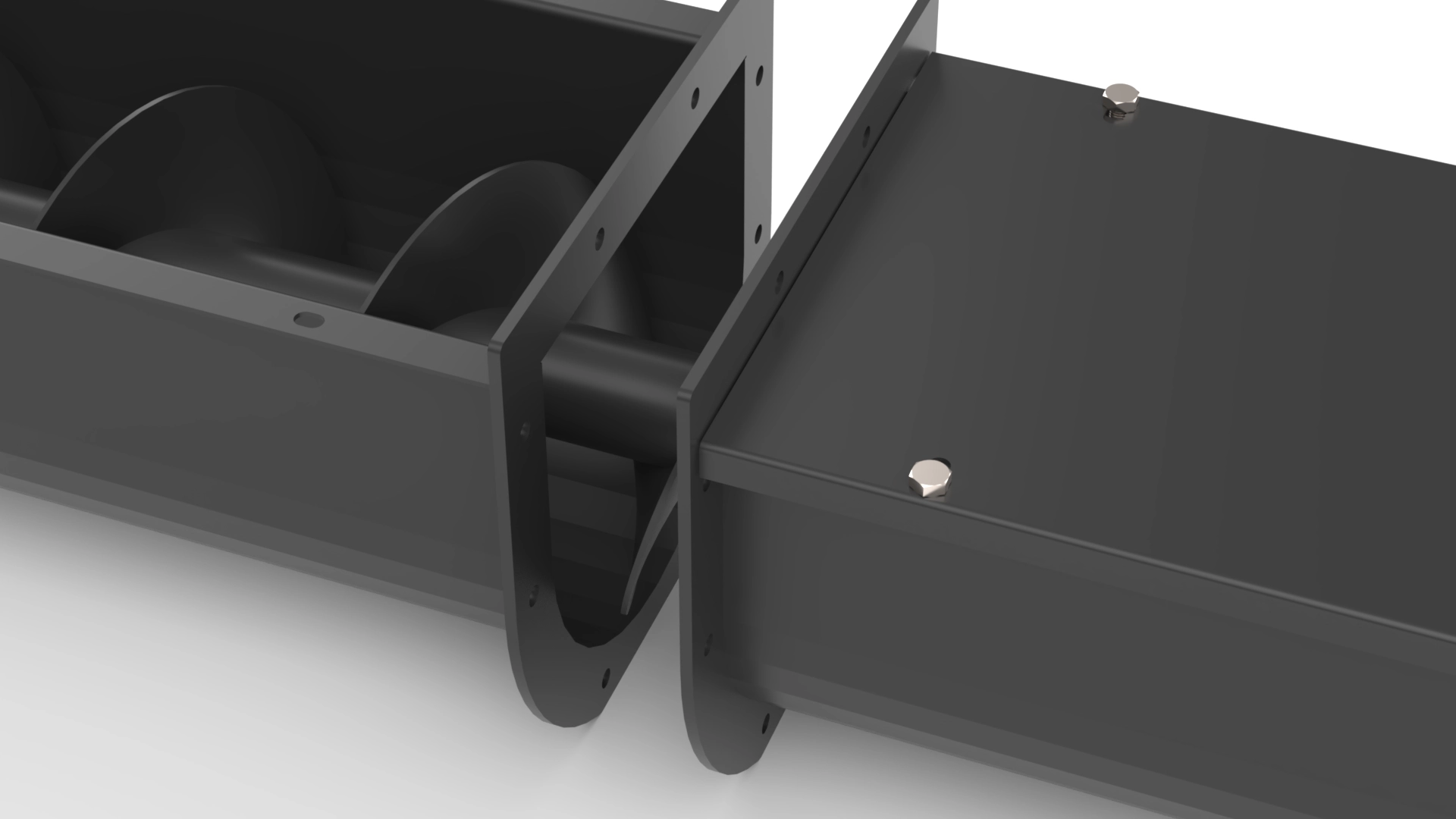

| transportability | Split into two sections for easier transport and handling |
| application | U-shaped conveyor for grain and bulk material handling |
Description

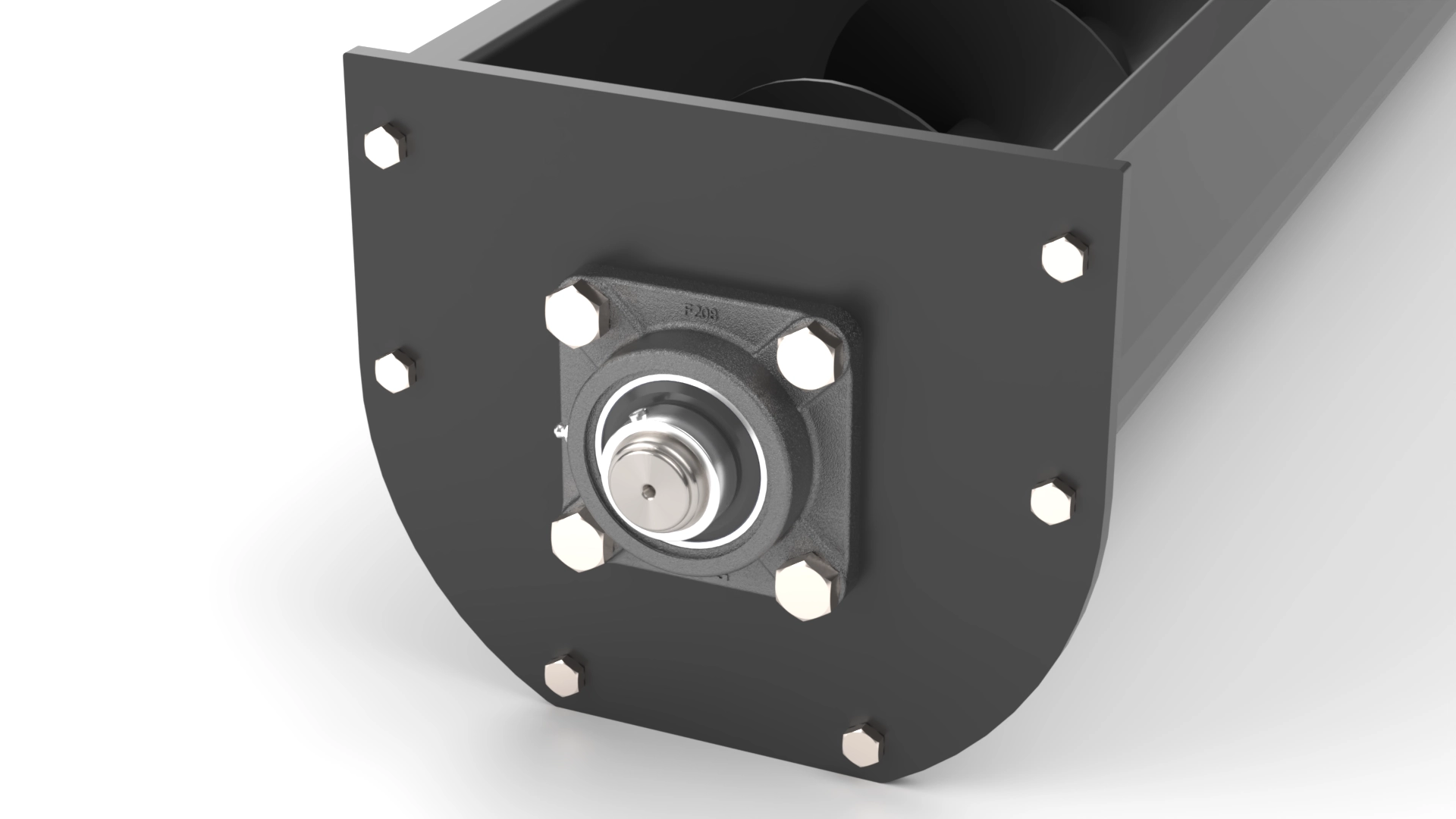

This 22-ft variant of the 255 mm U-trough screw conveyor is a heavy-duty, transportable conveyor built for high-throughput grain and bulk material handling. The conveyor is split into two sections for easier transport and serviceability: a separable 2500 mm section fitted with a UCF-210 bearing and a 10" drive shaft length measured from the bearing outer collar, and the opposite section fitted with a 208 bearing. Two identical left-hand augers (Ø211 mm OD, 180 mm pitch, 3 mm flight thickness) run in parallel on a Ø60 mm pipe core and are coupled via a profiled sleeve + coupling; the coupling shaft is supported by a hanger bush bearing. Covers are removable and secured with M10 bolts (separable section uses two equal removable covers; the other section has a 2 ft gap at the discharge end and remaining length covered with removable M10-bolted covers). Constructed in mild steel with 10 GA sheet trough and sturdy welded flighting, this unit is supplied ready for installation or as a factory-configured replacement.
Use Cases
- Grain handling in processing and storage facilities
- Material transfer for agricultural and light industrial use
- Portable conveyor for modular installations
- Easy-to-service conveyors for remote sites
