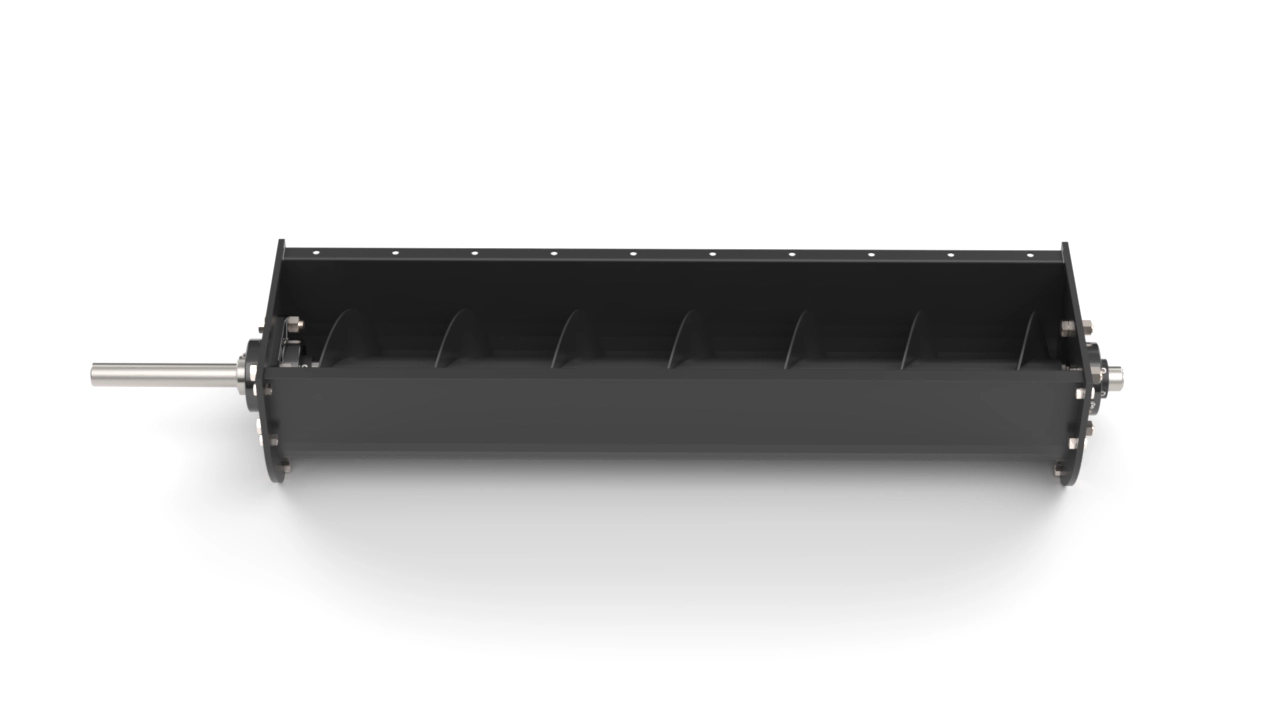

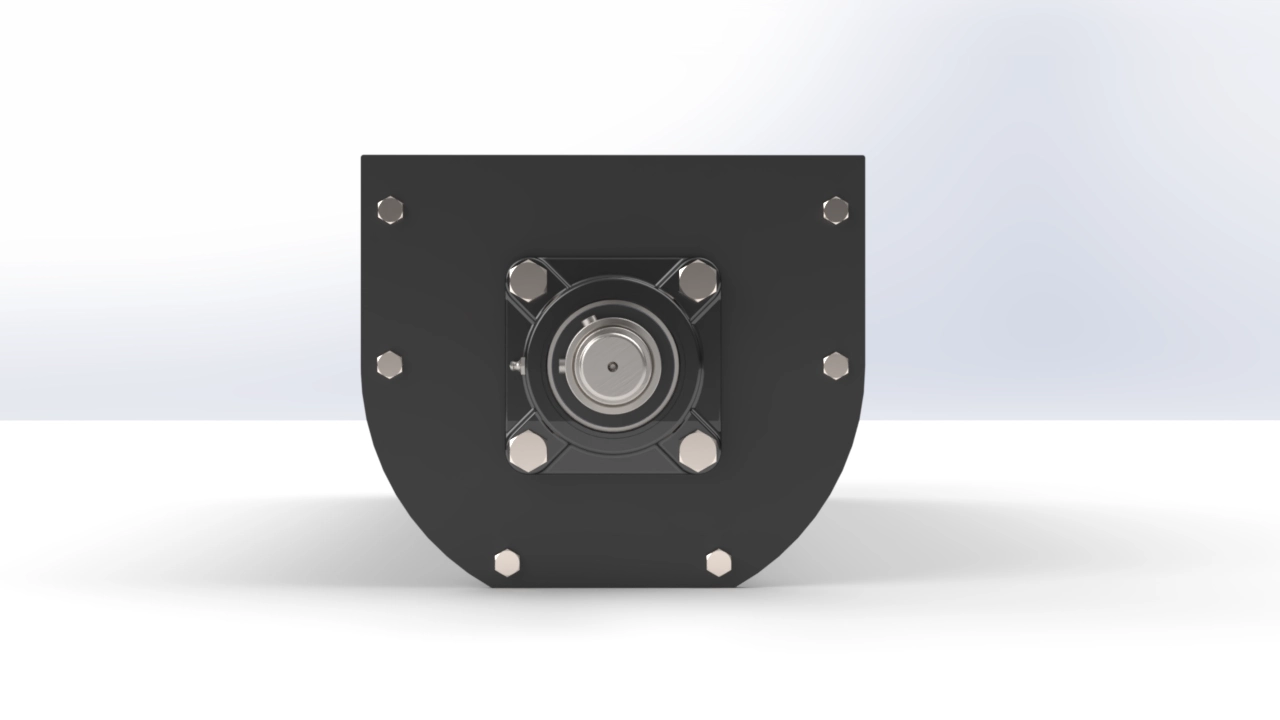

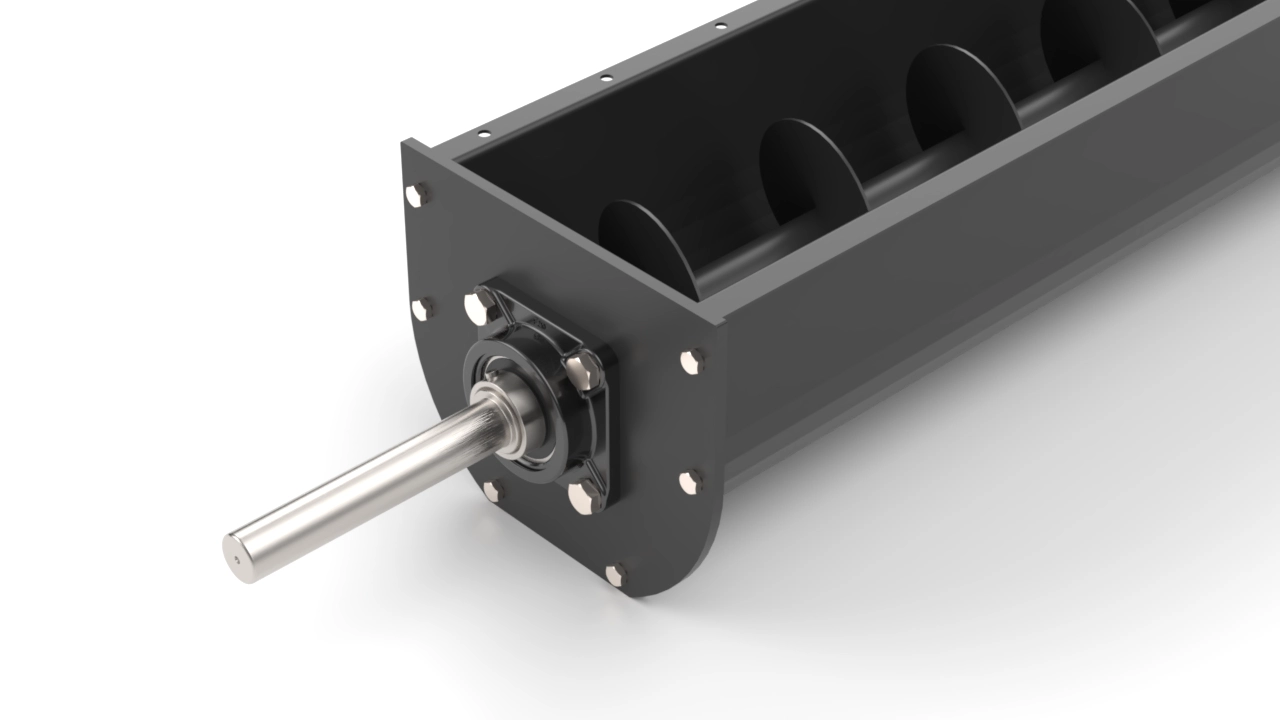

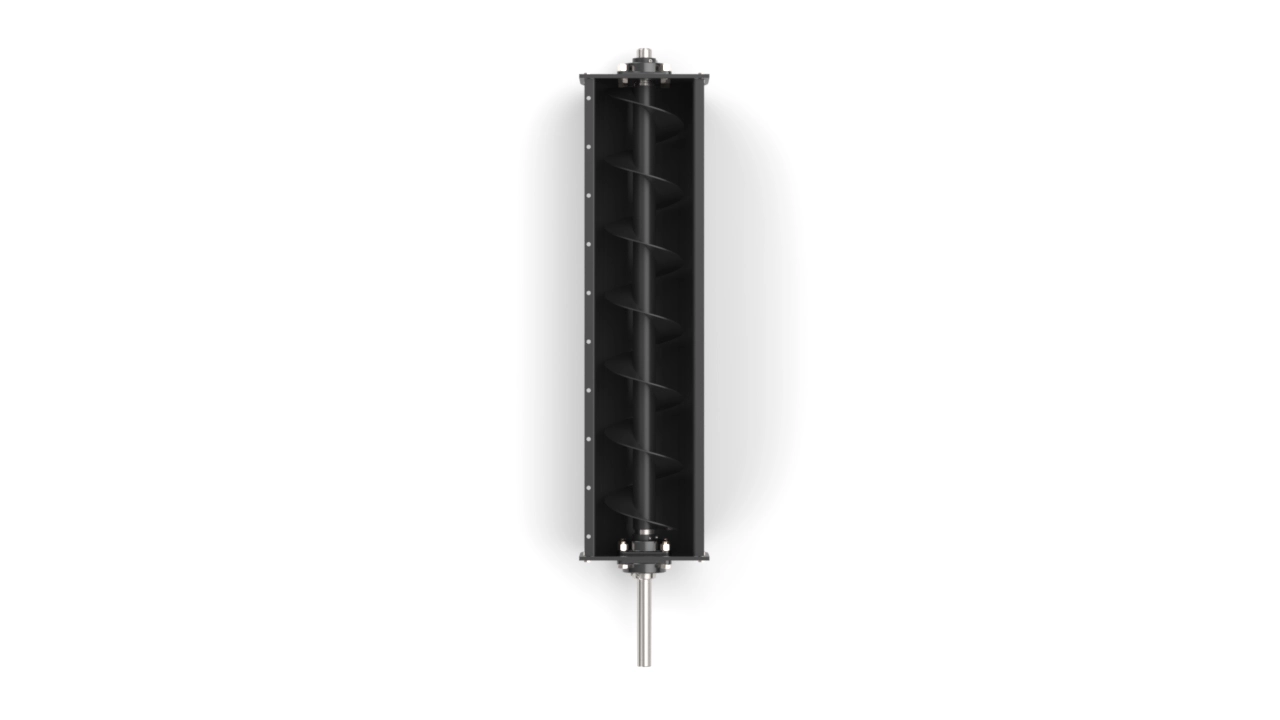

U-Shaped Screw Conveyor – 255mm Dia (4ft)
Compact 255mm diameter U-shaped screw conveyor with open-top design for easy material access.
| u trough diameter mm | 255 |
| total length mm | 1219 |
| cover type | No cover (open top) |
| material | Mild Steel |
| material thickness mm | 3.4 |
| bearing type | UCF 210 Flanged Bearings |
| bearing configuration | Double bearings on drive side, total 3 |
| screw pitch mm | 177.8 |
| shaft pipe diameter mm | 60 |
| outer screw diameter mm | 210 |
| screw hand | Left Hand |
| flange type | Flat cut for ground placement |
Description
The 255 mm diameter U-shaped screw conveyor is a compact yet heavy-duty solution designed for controlled horizontal conveying of bulk materials in industrial and agricultural environments. Its open-top U-trough construction allows direct material feeding, easy inspection, and simplified cleaning, making it suitable for applications where accessibility and maintenance are critical. Manufactured from high-quality mild steel with 10 gauge thickness, the conveyor provides excellent rigidity and long service life under continuous operation. The conveyor is equipped with a precision-formed left-hand screw featuring a consistent pitch for smooth and uniform material flow. A robust pipe shaft ensures reliable torque transmission, while multiple flanged bearings on the drive side enhance stability, reduce vibration, and support higher load handling. With its compact length and stable flat-cut flange mounting, this conveyor is ideal for installations where space is limited but dependable material movement is required.
Use Cases
- Conveying grains, seeds, and agricultural produce in small processing units
- Material handling in feed mills and grain cleaning plants
- Fertilizer and compost transfer in agricultural facilities
- Powder and granular material movement in workshops and small industries
- Dry ingredient handling in food processing units
