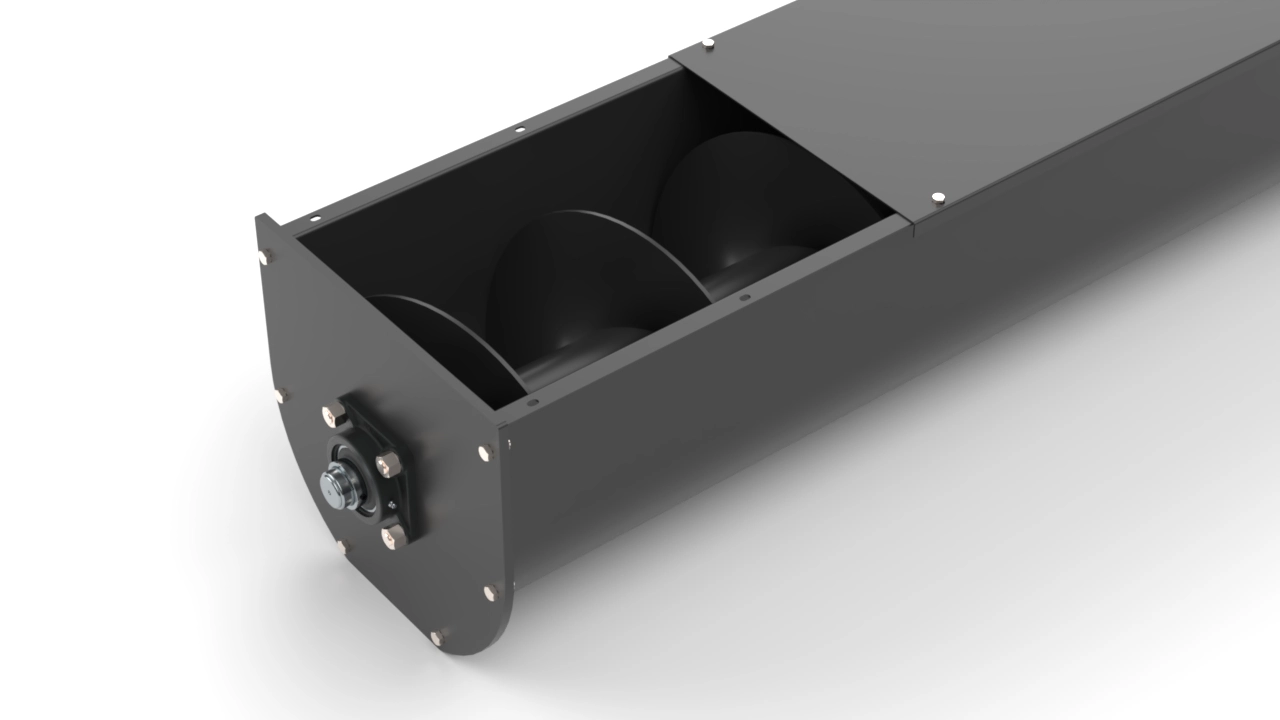

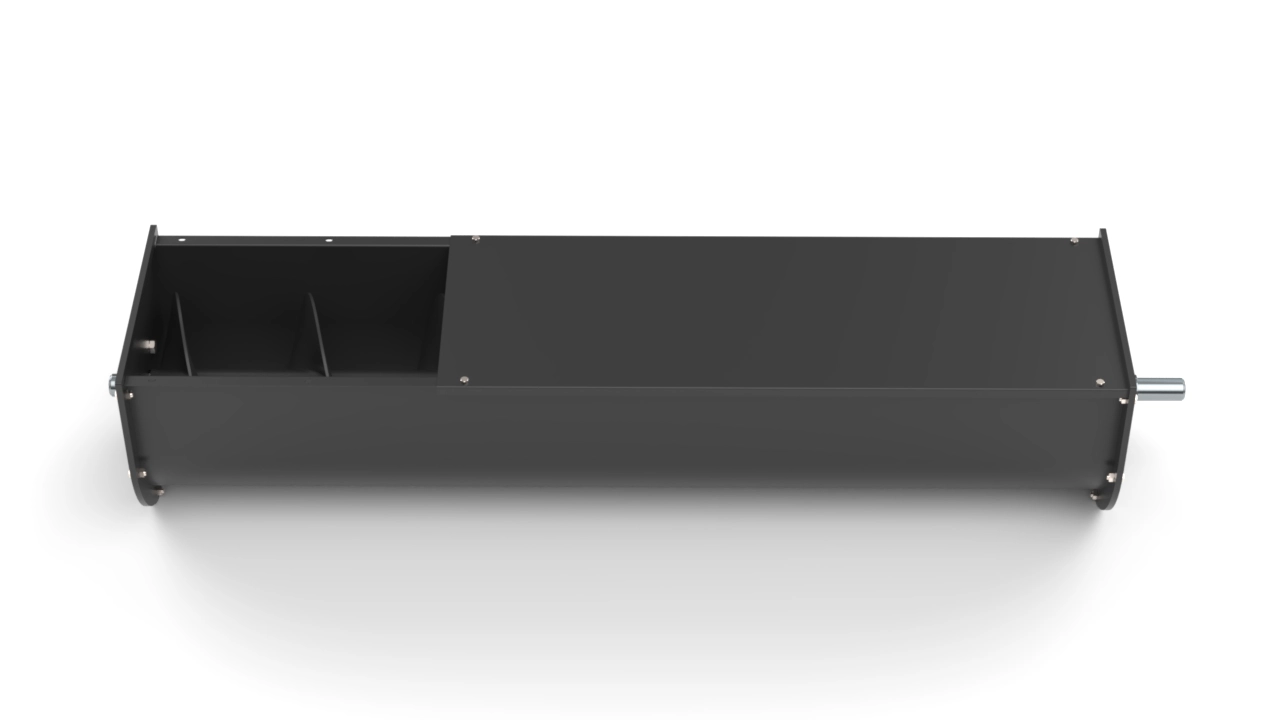

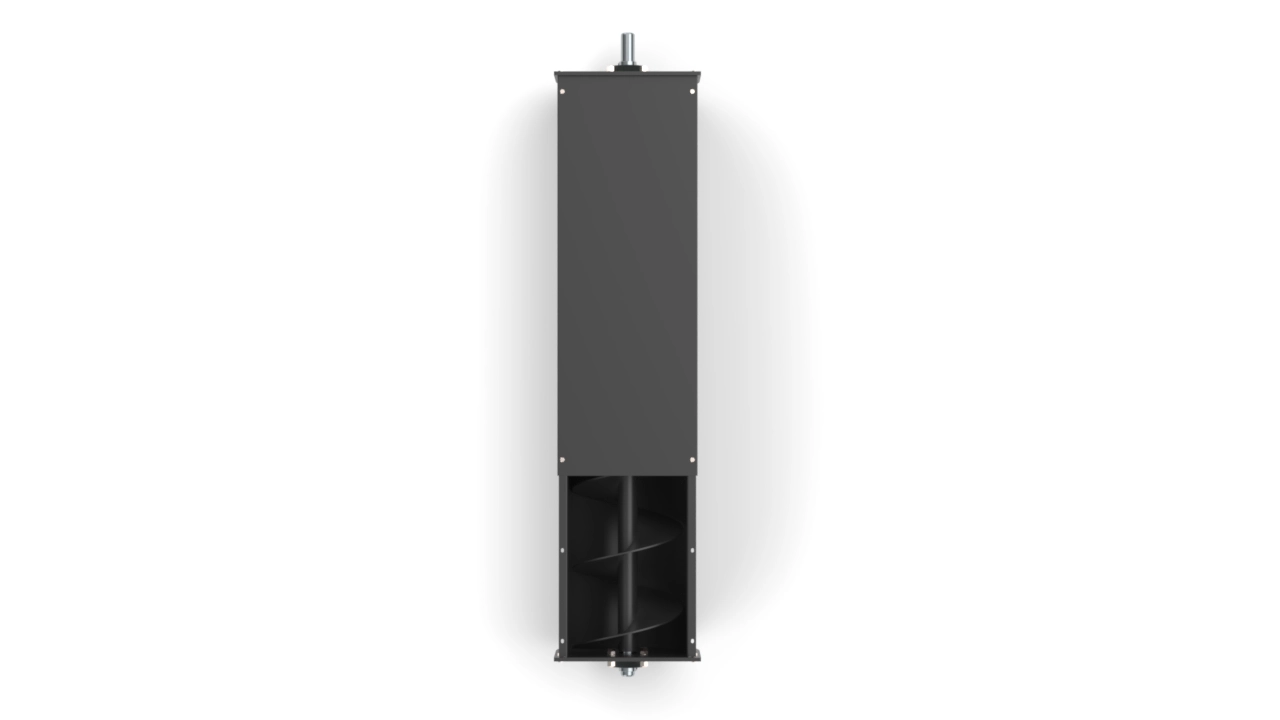

U-Shaped Screw Conveyor – 381mm Dia (6ft)
Heavy-duty 381mm diameter U-shaped screw conveyor with MS construction for bulk material handling.
| u trough diameter mm | 381 |
| total length mm | 1829 |
| opening after cover mm | 610 |
| material | Mild Steel |
| material thickness mm | 3.4 |

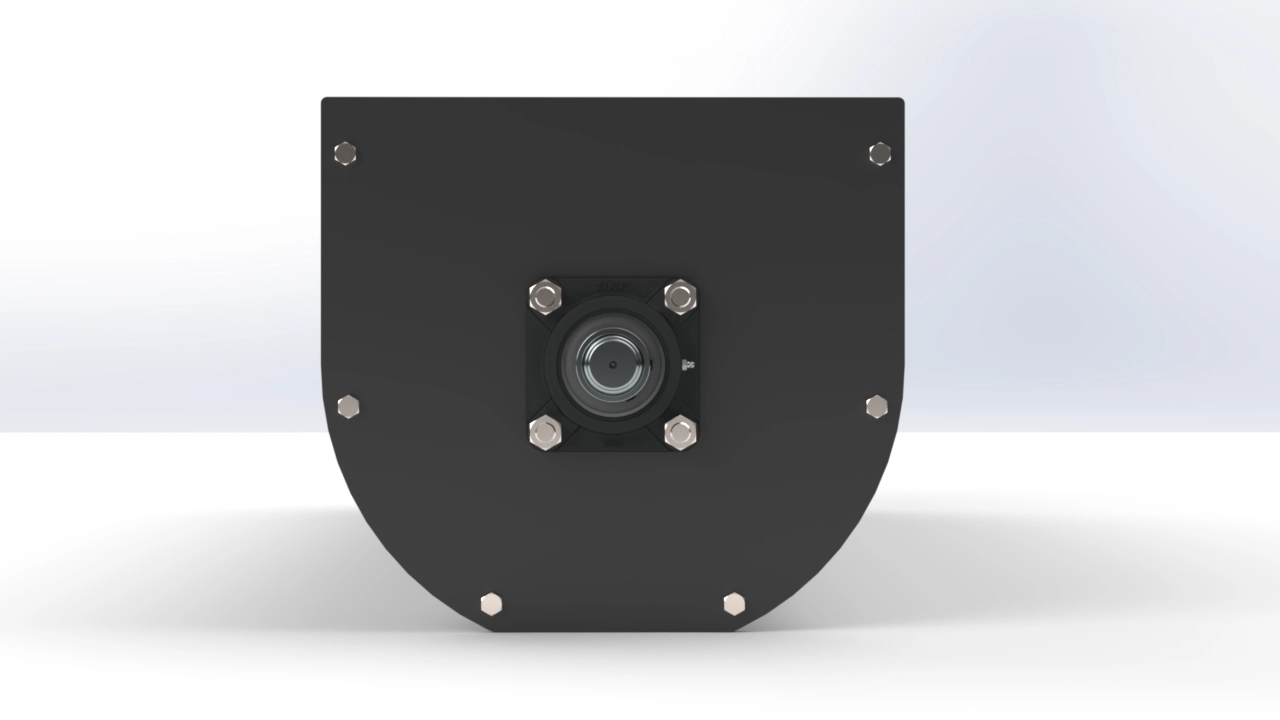

| bearing type | UCF 209 Flanged Bearing |
| screw pitch mm | 254 |
| shaft pipe diameter mm | 60 |
| outer screw diameter mm | 355.6 |
| screw hand | Right Hand |
| flange type | Flat cut for ground placement |
Description
The 381 mm diameter U-shaped screw conveyor is a heavy-duty conveying system engineered for bulk material handling in industrial and agricultural applications. Constructed from 10 gauge mild steel, the conveyor offers high structural strength, durability, and resistance to wear under continuous-duty operation. The U-trough design supports stable material containment while allowing inspection and maintenance through its removable top cover. A precision-engineered right-hand screw with a large pitch ensures consistent material flow with minimal spillage. The robust shaft and flanged bearing arrangement provide smooth rotation, reduced vibration, and long bearing life. Its modular and ground-mountable design makes this conveyor suitable for integration into existing processing lines where reliability and high throughput are essential.
Use Cases
- Grain conveying in warehouses and grain processing plants
- Fertilizer and bulk material handling in agricultural facilities
- Cement, sand, and fly ash transfer in construction plants
- Powdered material handling in food processing units
- Raw material movement in industrial manufacturing setups
